Warranty Information

One-year limited warranty covering parts and labor, with lifetime coverage for the stainless tub and door liner.

Getting Started:
  1. Load the dishwasher, ensuring large items don't block the detergent dispenser.
  2. Add automatic dishwasher detergent just before starting the cycle.
  3. Add rinse aid if needed.
  4. Select desired cycle and options.
  5. Run hot water until it's hot.
  6. Press START/CANCEL and immediately close the door.

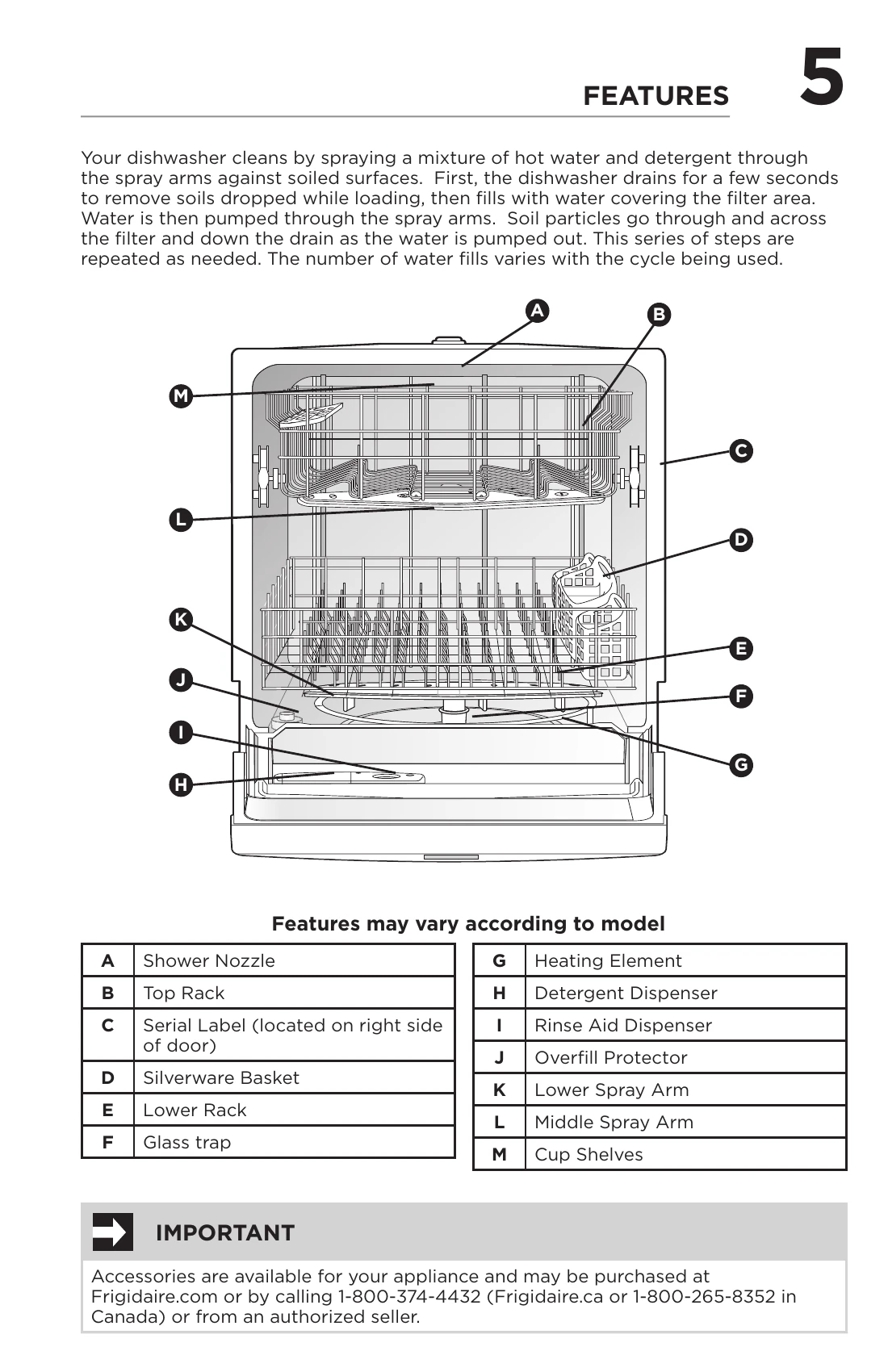

Dishwasher Operation: The dishwasher sprays a mixture of hot water and detergent through spray arms to clean dishes. It automatically adjusts cycles based on soil level. Key components include the shower nozzle, racks, detergent dispenser, and rinse aid dispenser.

Troubleshooting and error codes

Problem Area Possible Cause & Solution
Food Soils Left on Dishes
  • Choose a longer cycle.
  • Check rack loading for proper placement, avoid nesting.
  • Do not overload.
  • Ensure glass trap is maintained.
  • Check water pressure (20-120 psi).
  • Check incoming water temperature (at least 120°F/49°C).
  • Check water hardness; consider a water softener for very hard water.
  • Use fresh detergent.
  • Ensure items do not block spray arms.
Dishes Not Dry
  • Select Heat Dry or High Temp Wash.
  • Ensure rinse aid dispenser is filled.
  • Increase rinse aid setting.
  • Check incoming water temperature.
  • Check for proper loading.
  • Plastic items may need towel drying.
  • Position cups with concave bottoms tilted.
  • Angle items with concave surfaces down for drainage.
Glassware/Flatware Spotted or Cloudy
  • Check water hardness; consider a water softener.
  • Ensure water temperature is not too low or too high.
  • Avoid overloading and improper loading.
  • Use fresh detergent.
  • Ensure rinse aid dispenser is filled.
  • Use the proper amount of detergent for the selected cycle.
  • Check home water pressure (20-120 psi).
Dishware Chipped
  • Load with care, do not overload.
  • Place delicate items in the top rack.
  • Secure glasses against pins.
  • Load items so they are secure and don't jar loose.
  • Ensure tall glasses clear the tub top.
  • Hand wash fine antique china and crystal.
Dishware Stained or Discolored
  • For tea/coffee stains, hand wash with a bleach solution.
  • Iron deposits may cause a film; a filter may be needed.
  • Aluminum utensils can leave marks.
  • High acid foods can cause discoloration; rinse if not operating immediately.
  • Avoid mixing stainless steel and silver in the silverware basket.
Etching
  • Using too much detergent in soft water can cause etching.
  • Adjust detergent based on water hardness.
  • Lower water temperature by selecting the Normal Cycle.
Dishwasher Won't Fill
  • Ensure water supply is turned on.
  • Check that the overfill protector moves freely.
Detergent Left in Cups
  • Use fresh detergent.
  • Ensure load does not spray into the detergent cup.
  • Check if cycle has completed.
  • Ensure items do not block dispenser opening.
Vapor at Vent
  • Water vapor escaping during drying is normal.
  • Spilled rinse aid can cause foam; wipe up spills.
  • Check that the dishwasher is level.
Normal Sounds You Will Hear
  • Water fill, water circulation, and motor sounds.
  • A change in sound when wash action switches between spray arms.
  • A pause when wash action switches.
Water in Bottom of Tub
  • Water remaining after cycle is complete is not normal; check for draining issues.
Dishwasher Leaks
  • Check door gasket is properly seated.
  • Spilled rinse aid can cause foam and overflow.
  • Check that the dishwasher is level.
  • Avoid oversudsing.
Dishwasher Won't Run
  • Check circuit breaker or fuse.
  • Ensure water supply is on.
  • Verify cycle is set correctly.
  • Check if Delay Start option is set.
  • Ensure door is closed and latched.
  • Press START/CANCEL after selecting cycle.
Dishwasher Does Not Drain Properly
  • If connected to a food waste disposer, ensure it's empty.
  • Ensure knockout plug is removed from disposer inlet.
  • Ensure drain hose is not kinked.
  • Verify cycle is complete, not paused.
  • Ensure glass trap is maintained and installed properly.
Cycle Takes a Long Time
  • Cycle may lengthen automatically due to cool water supply or large load.
  • Check if Delay Start is selected.
  • Choose lower temperature options.
  • Soil-sensing cycles adjust automatically.
Dishwasher has an Odor
  • Soiled dishes left too long can cause odor.
  • A "new" smell when first installed is normal.
  • Check if unit is draining properly.
Stains on Tub Interior
  • Washing large amounts of tomato-based soil can cause a pink/orange appearance. This is normal and fades over time. Pre-rinsing or using no heat dry can lessen staining.
Opening the door during cycle
  • If opened, press START/CANCEL and close door within 10 minutes to resume the cycle.
Removing Spots and Film
  • Load dishes, no metal utensils.
  • Do not add detergent.
  • Select Normal Wash cycle.
  • Close door, press START/CANCEL.
  • Run until second water fill (approx. 10 mins).
  • Pour 2 cups white vinegar into bottom.
  • Close door, allow cycle to finish.
