Warranty Information
One year limited warranty on parts and labor, with lifetime coverage for stainless tub/door liner.

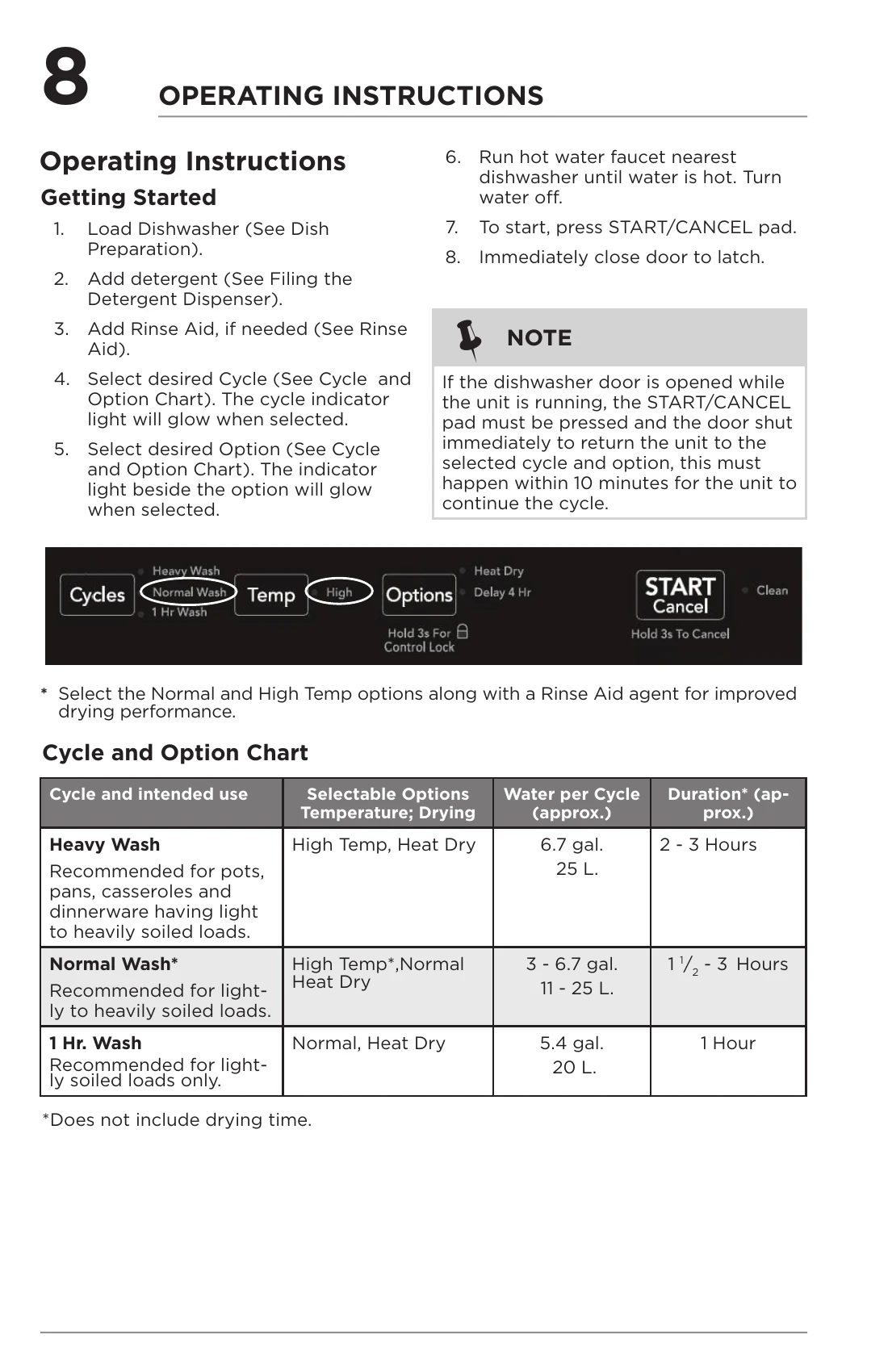

Loading the Dishwasher: Scrape large food particles; pre-rinse if not running immediately. Load items securely, avoiding overloading. Top rack for glasses, plastics, and long-handled items. Bottom rack for plates, bowls, and cookware. Silverware basket with handles up, mix items to avoid nesting. Ensure items do not block spray arms. Adding Detergent: Use fresh, automatic dishwasher detergent. Amount depends on water hardness. Refer to the detergent usage chart. Add just before starting the cycle. Store in a cool, dry place. Selecting a Cycle and Options: Choose cycle based on soil level. Options like High Temp and Heat Dry improve cleaning and drying. Use Delay Start if needed. Press START/CANCEL to begin. Close door firmly.
Troubleshooting and error codes
| Issue | Possible Cause | Solution |
|---|---|---|
| Food Soils Left on Dishes | Incorrect cycle, improper loading, overloaded, clogged glass trap, low water pressure, low incoming water temp, hard water, old detergent, blocked spray arms. | Choose longer cycle, check loading, don't overload, clean glass trap, check water pressure (20-120 psi), check water temp (120°F), use water softener if needed, use fresh detergent, ensure spray arms rotate. |
| Dishes not Dry | Heat Dry/High Temp not selected, empty rinse aid, incorrect rinse aid setting, low incoming water temp, improper loading, plastic items, concave cups. | Select Heat Dry or High Temp, fill rinse aid dispenser, adjust rinse aid setting, check water temp (120°F), load properly, towel dry plastics, position concave cups for drainage. |
| Glassware/Flatware Spotted or Cloudy | Hard water, low water temp, overloading, improper loading, old detergent, empty rinse aid, incorrect detergent amount, low water pressure. | Check water hardness, avoid extreme temps, don't overload/load improperly, use fresh detergent, fill rinse aid, use correct detergent amount, check water pressure (20-120 psi). |
| Dishware Chipped | Careless loading, overloading, items not secure, tall items not clearing tub, fine china/crystal. | Load with care, place delicates on top rack, secure items, ensure clearance, hand-wash fine china/crystal. |
| Dishware Stained or Discolored | Tea/coffee stains, iron deposits, aluminum utensil marks, high acid foods, mixing stainless/silver. | Hand wash stains with bleach solution, use water filter for iron, load properly, rinse high acid foods, avoid mixing stainless/silver. |
| Etching | Too much detergent, especially in soft water. | Adjust detergent based on water hardness, lower water temp with Normal Cycle. |
| Dishwasher Won't Fill | Water supply off, overfill protector stuck, old detergent, cycle not completed, items blocking dispenser. | Turn on water supply, check overfill protector, use fresh detergent, ensure cycle completion, ensure dispenser opens. |
| Vapor at Vent | Normal during drying cycle. | This is normal. |
| Spilled Rinse Aid | Causes foam/overflowing. | Wipe up spills with damp cloth. |
| Dishwasher Leaks | Door gasket not seated, gasket extends beyond rib, spilled rinse aid. | Reseat gasket, check for interference with door closure, wipe up rinse aid spills. |
| Dishwasher Has an Odor | Soiled dishes left too long, new appliance smell. | Clean immediately, new smell is normal. Check drainage. |
| Stains on Tub Interior | Tomato-based soil. | Normal, will fade. Pre-rinsing helps, no heat dry reduces staining. |
| Opening the door during cycle | Interruption of cycle. | Press START/CANCEL, close door within 10 minutes to resume. |
| Water in Bottom of Tub | Dishwasher not draining properly. | Check for drainage issues. |
