Brand: FRIGIDAIRE
Category: Dishwasher
Document Type: Manual
Language: EN

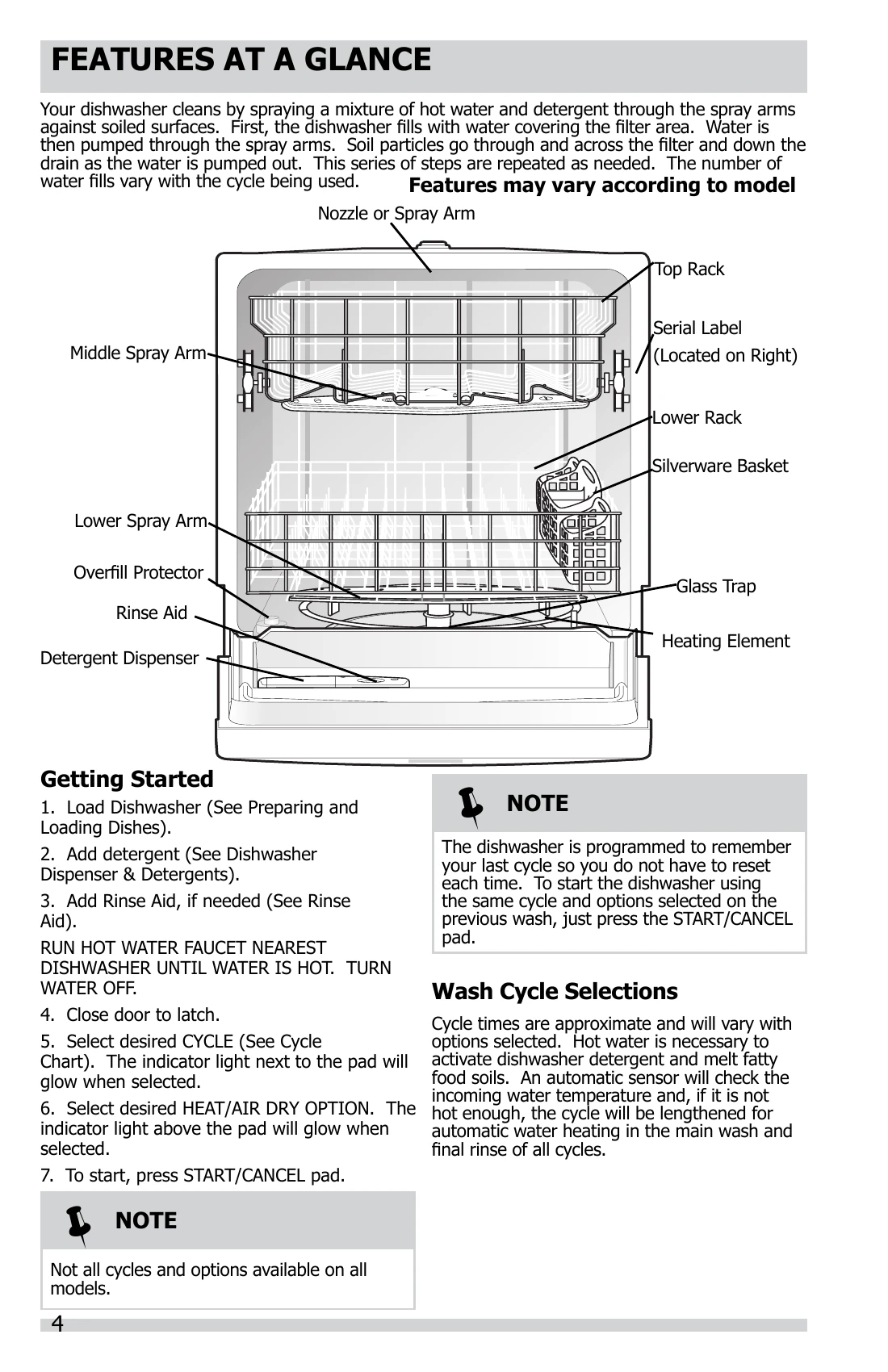

Manual for FDPC4221AW
Uploaded: Sept. 12, 2025, 4:19 a.m.
Manual Publish Date: 2020-07-01
Warranty Information
One year limited warranty covering parts and labor for defects in materials and workmanship.
Loading the Dishwasher: Scrape large food particles; loosen burned-on food. Load top rack with cups, glasses, stemware, small plates, bowls. Load bottom rack with plates, saucers, bowls, cookware. Place items with open ends facing down for better cleaning. Load silverware with sharp items pointing down. Ensure nothing blocks spray arm rotation.
Adding Detergent: Use household grade automatic dishwasher detergent. Fill main wash cup based on water hardness and cycle. For tabs, place one in main wash cup. Add detergent just before starting cycle.
Starting a Cycle: Run hot water faucet until hot. Close and latch door. Select desired CYCLE and HEAT/AIR DRY OPTION. Press START/CANCEL.
Option Selections: HEAT DRY enhances drying but may not fully dry items. AIR DRY saves energy.
Troubleshooting and error codes
| Problem | Possible Cause & Solution |
| Dishwasher Won't Run | • Check circuit breaker/fuse. • Ensure water supply is on. • Verify cycle is set correctly. • Make sure door is closed and latched. • Press START/CANCEL after selecting cycle. |
| Dishwasher Does Not Drain Properly | • If connected to food disposer, ensure it is empty. • Verify knockout plug is removed from disposer inlet. • Assure drain hose isn't kinked. • Check if cycle is complete, not paused. • Ensure glass trap is maintained and installed properly. |
| Cycle Takes a Long Time | • Cycle may lengthen to reach temperature (cool water, large load). • Choose lower temperature options. • Soil-sensing cycles adjust automatically. |
| Dishwasher has an Odor | • Soiled dishes left too long: use Rinse Only cycle. • "New" smell upon installation is normal. • Check if unit is draining properly. |
| Stains on Tub Interior | • Tomato-based soil can cause pink/orange staining (harmless, fades). Pre-rinse or use Rinse Only. No heat dry may lessen staining. |
| Opening the door during cycle | • Press START/CANCEL and shut door immediately to resume within 10 minutes. |
| Dishware Chipped | • Load with care, do not overload. Place delicate items in top rack. Load items securely. Ensure tall items clear tub top. Hand-wash fine china/crystal. |
| Dishware Stained or Discolored | • Tea/coffee stains: Hand wash with bleach solution. • Iron deposits: May require a special filter. • Aluminum utensils: May leave gray marks; load properly. • High acid foods: Rinse by hand if not running dishwasher immediately. • Mixing stainless steel and silver: Can pit stainless steel. |
| Etching | • Too much detergent (soft water) causes film-like damage. • Adjust detergent based on water hardness. • Lower water temperature (Normal Cycle). |
| Dishwasher Won't Fill | • Ensure water supply is on. • Check overfill protector movement. |
| Detergent Left in Cups | • Detergent may be old; use fresh. • Ensure dish load doesn't block dispenser. • Check cycle completion. • Ensure items don't prevent dispenser opening. |
| Vapor at Vent | • Water vapor escapes during drying (normal). • Spilled rinse aid can cause foam/overflowing; wipe up spills. • Check if dishwasher is level. |
| Normal Sounds You Will Hear | • Water fill, circulation, motor sounds. • Noticeable sound change when switching spray arms. • Pause when switching spray arms is normal. |
| Water in Bottom of Tub | • Not normal after cycle complete. May indicate draining issue. |
| Dishwasher Leaks | • Check door gasket seating. • Spilled rinse aid can cause foam/overflowing. • Check if dishwasher is level. • Avoid oversudsing. |
