Brand: FRIGIDAIRE
Category: Dishwasher
Document Type: Manual
Language: EN
Manual for fphd2491kf0
Uploaded: Sept. 12, 2025, 4:22 a.m.
Manual Publish Date: 2009-11-01
Warranty Information
One year limited warranty covering repair or replacement of defective parts.

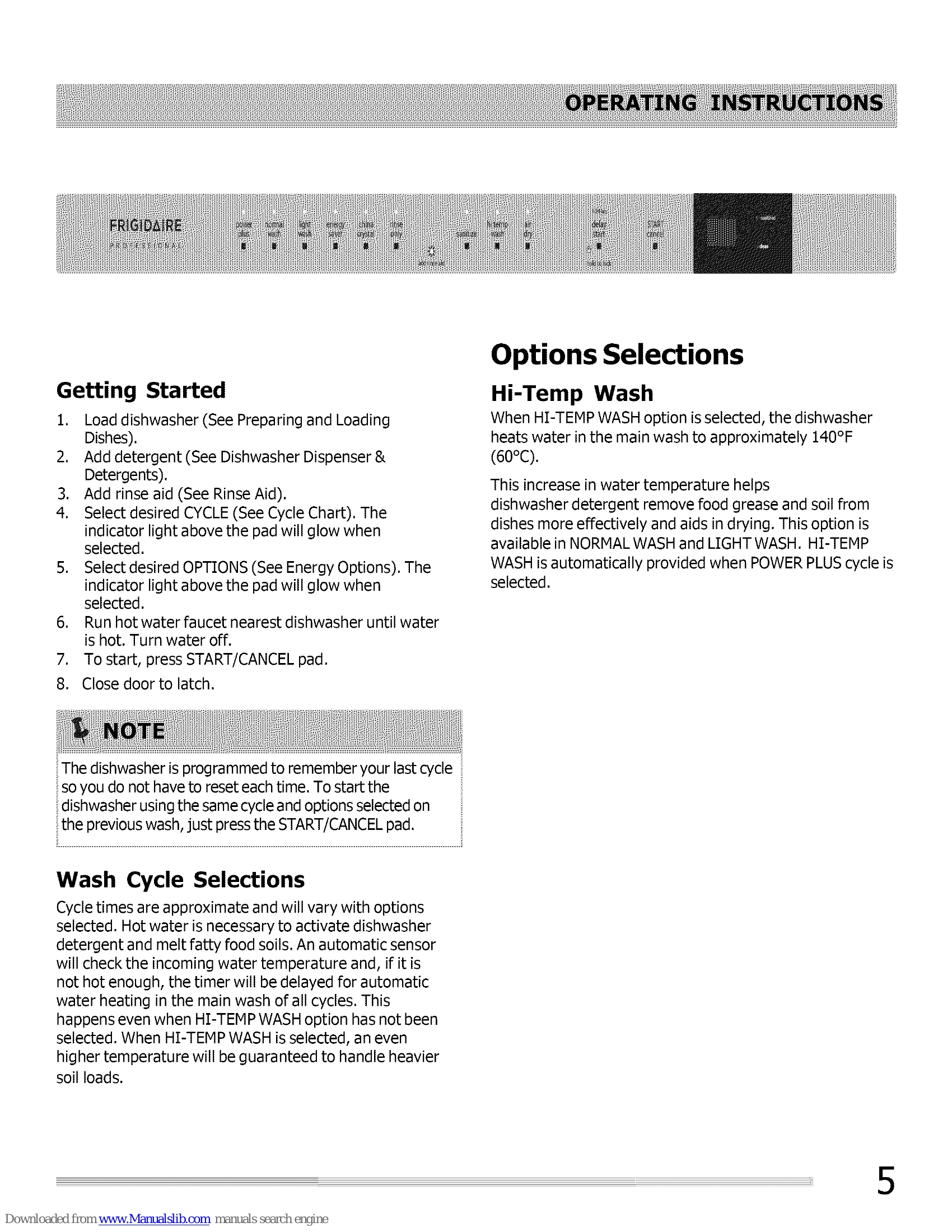

Getting Started: Load dishwasher, add detergent and rinse aid, select cycle and options, run hot water, then press START/CANCEL.
Wash Cycle Selections: Various cycles like Power Plus, Normal Wash, Light Wash, China Crystal, Energy Saver, and Rinse Only are available, with times and water usage varying based on soil level and options.
Options Selections: Hi-Temp Wash heats water to 140°F for better cleaning and drying. Sanitize option raises final rinse temperature to 155°F for bacteria destruction. Air Dry option is available. Delay Start allows for delayed cycle initiation (1-24 hours). Child Lock prevents accidental changes.
Status Indicator Lights: Lights indicate power interruptions (PF), delay start hours (1H-24H), cycle status (Cd), and remaining minutes (MINUTES). SANITIZED and CLEAN lights indicate cycle completion. Low rinse aid is indicated by a 'LO' light.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishes not Dry | Heat dry option not selected; Rinse aid dispenser empty; Incoming water temperature too low; Improper loading; Plastic items; Cups with concave bottoms. | Select heat dry; Fill rinse aid dispenser; Ensure water temp is at least 120°F; Load properly; Towel dry plastics; Cups will collect water. |
| Dishware Stained or Discolored | Tea/coffee stains; Iron deposits; Aluminum utensils; High acid foods; Mixing silver and stainless. | Clean with bleach solution; Install water filter; Load properly; Use Rinse & Hold or hand rinse; Avoid mixing silver and stainless. |
| Glassware/Flatware Spotted or Cloudy | Water hardness; Water temperature too low/high; Overloading/improper loading; Old detergent; Rinse aid dispenser empty; Incorrect detergent amount/phosphate level; Low water pressure. | Install water softener; Adjust water temp; Load properly; Use fresh detergent; Fill rinse aid dispenser; Check detergent usage; Ensure water pressure is 20-120 psi. |
| Dishwasher Leaks | Incorrect detergent; Spilled rinse aid; Dishwasher not level. | Use correct detergent; Wipe up spills; Ensure dishwasher is level. |
| Normal Sounds You Will Hear | Water fill, circulation, motor sounds; Sound changes between spray arms; Pauses between spray arm actions. | These are normal operating sounds. |
| Etching | Too much detergent in soft/softened water. | Adjust detergent amount; Lower water temp; Use no heat dry. |
| Detergent Left in Cups | Old detergent; Water action can't reach dispenser; Cycle not completed; Items blocking dispenser. | Use fresh detergent; Ensure dispenser is clear; Check cycle completion; Remove obstructions. |
| Water in Bottom of Tub | Dishwasher not draining properly. | Check if drain hose is kinked or if cycle is complete. |
| Dishware Chipped | Careless loading; Overloading; Items not secure; Tall items hitting tub top. | Load with care; Secure items; Move racks slowly; Ensure clearance for tall items. Hand wash fine china/crystal. |
| Vapor at Vent | Water vapor escaping during drying. | This is normal. |
| Dishwasher Won't Run | Circuit breaker tripped/fuse blown; Water supply off; Cycle not set correctly; Delay start option selected; Door not closed/latched. | Check breaker/fuse; Turn on water supply; Set cycle correctly; Cancel delay start if needed; Close and latch door. |
| Dishwasher Does Not Drain Properly | Disposer empty/plug removed; Drain hose kinked; Cycle not complete. | Ensure disposer is empty/plug removed; Check hose; Ensure cycle is complete. |
| Dishwasher Won't Fill | Water supply turned off. | Turn on water supply. |
| Dishwasher Has an Odor | Soiled dishes left too long; New appliance smell; Unit not draining properly. | Use Rinse & Hold cycle; New smell is normal; Check drainage. |
