Warranty Information
One year limited warranty covering defective materials or workmanship.

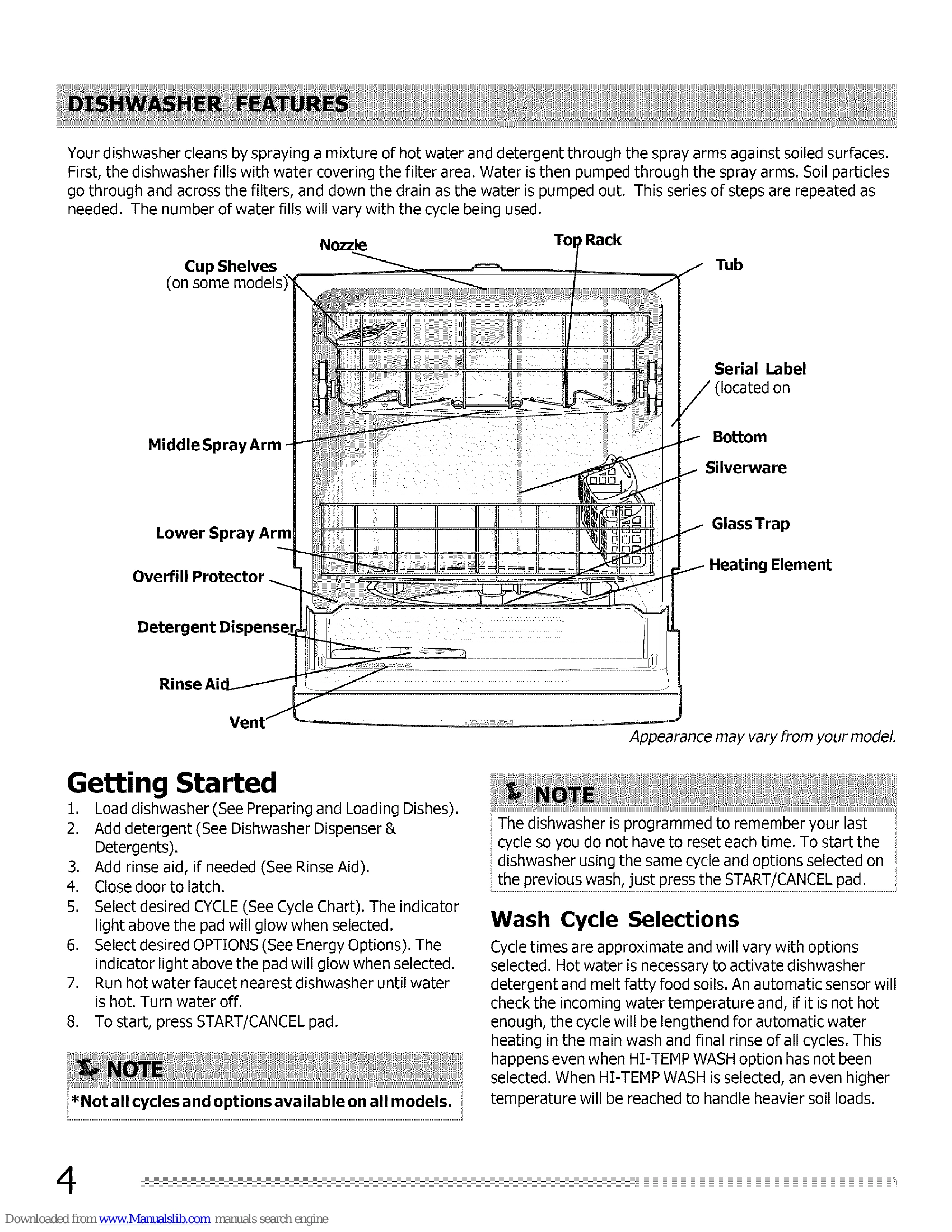

Getting Started:
1. Load dishwasher.
2. Add detergent.
3. Add rinse aid (if needed).
4. Close door to latch.
5. Select cycle.
6. Select options.
7. Run hot water faucet until hot, then turn off.
8. Press START/CANCEL.
Operating Instructions:
- Select cycle and options (e.g., Hi-Temp Wash, Heat Dry, Delay Start).
- Child Lock: Press and hold RINSE ONLY or NO HEAT DRY for 3 seconds to lock/unlock controls.
Cycle Chart:
Choose from cycles like Heavy Wash/Pots & Pans, Normal Wash Hi-Temp and Sanitize, Normal Wash, Light Wash/EcoWash, Top Rack/Energy Saver, and Rinse Only. Each cycle has different water usage and time.
Sanitize Option:
Select SANITIZE for a final rinse temperature of 155°F (68°C) for 9 minutes. Available in Heavy and Normal Wash cycles.
1. Load dishwasher.
2. Add detergent.
3. Add rinse aid (if needed).
4. Close door to latch.
5. Select cycle.
6. Select options.
7. Run hot water faucet until hot, then turn off.
8. Press START/CANCEL.
Operating Instructions:
- Select cycle and options (e.g., Hi-Temp Wash, Heat Dry, Delay Start).
- Child Lock: Press and hold RINSE ONLY or NO HEAT DRY for 3 seconds to lock/unlock controls.
Cycle Chart:
Choose from cycles like Heavy Wash/Pots & Pans, Normal Wash Hi-Temp and Sanitize, Normal Wash, Light Wash/EcoWash, Top Rack/Energy Saver, and Rinse Only. Each cycle has different water usage and time.
Sanitize Option:
Select SANITIZE for a final rinse temperature of 155°F (68°C) for 9 minutes. Available in Heavy and Normal Wash cycles.
Troubleshooting and error codes
| Problem | Possible Cause & Solution |
| Food Soils Left on Dishes | Choose a longer cycle. Check rack loading. Ensure proper water pressure (20-120 psi). Check incoming water temp (min 120°F). Check water hardness; consider a water softener. Use fresh detergent. Ensure items aren't blocking spray arms. |
| Dishes not Dry | Select heat dry option. Ensure rinse aid dispenser is filled. Increase rinse aid setting. Check incoming water temp (min 120°F). Check loading; avoid nesting items. Plastic items may need towel drying. Tilt cups with concave bottoms. |
| Glassware/Flatware Spotted or Cloudy | Check water hardness; consider a water softener. Water temp may be low. Avoid overloading/improper loading. Use fresh detergent. Ensure rinse aid dispenser is filled. |
| Dishware Chipped | Load with care; do not overload. Place delicate items in top rack. Secure glasses. Ensure items don't jar loose. Tall glasses should clear tub top. Hand wash fine antique china/crystal. |
| Dishware Stained or Discolored | For tea/coffee stains, wash with 1/2 cup bleach and 1 qt warm water. Iron deposits cause yellow/brown film; use a filter. Aluminum utensils can leave marks; load properly. High acid foods can cause discoloration; pre-rinse or use Rinse Only cycle. Avoid mixing stainless steel and silver. |
| Etching | Too much detergent, especially in soft water, can cause permanent damage. Adjust detergent based on water hardness. Lower water temp by selecting Normal Cycle. |
| Detergent Left in Cups | Detergent may be old; use fresh detergent. |
| Dishwasher Leaks | Ensure proper load doesn't block detergent cup. Check if cycle is complete. Ensure items don't block dispenser opening. Use only fresh, automatic dishwasher detergent; measure carefully; try a different brand. |
| Vapor at Vent | Water vapor escaping during drying is normal. Spilled rinse aid can cause foam/overflowing; wipe spills. Ensure dishwasher is level. |
| Normal Sounds You Will Hear | Water fill, circulation, motor sounds are normal. Sound changes occur when switching between spray arms. Pauses between wash actions are normal. |
| Water in Bottom of Tub | Water remaining after cycle completion indicates a draining problem. (See Dishwasher Does Not Drain Properly.) |
| Dishwasher Won't Run | Check circuit breaker/fuse. Ensure water supply is on. Check cycle settings. Check for delay start option. Ensure door is closed and latched. |
| Dishwasher Won't Fill | Ensure water supply is on. Check overfill protector for free movement. |
| Dishwasher Does Not Drain Properly | If connected to food waste disposer, ensure it is empty. Check for removed knockout plug in disposer inlet. Check for kinked drain hose. Ensure cycle is complete, not paused. |
| Cycle Takes a Long Time | Check for water heating delay, delay start option, or sanitize option. |
| Dishwasher Has an Odor | Soiled dishes left too long can cause odor; use Rinse Only cycle. A new unit may have a "new" smell. Check if unit is draining properly. |
| Stains on Tub Interior | Tomato-based soils can cause pink/orange appearance; will fade. Pre-rinsing or Rinse Only cycle can help. No heat dry option can lessen staining. |
| Removing Spots and Film | Load clean dishes (no metal/silverware). Do not add detergent. Select NORMAL WASH cycle, close door, press START/CANCEL. Run for ~10 mins until second water fill. Pour 2 cups white vinegar into bottom. Close door, allow cycle to finish. |
