Brand: FRIGIDAIRE
Category: Oven
Document Type: Manual
Language: EN

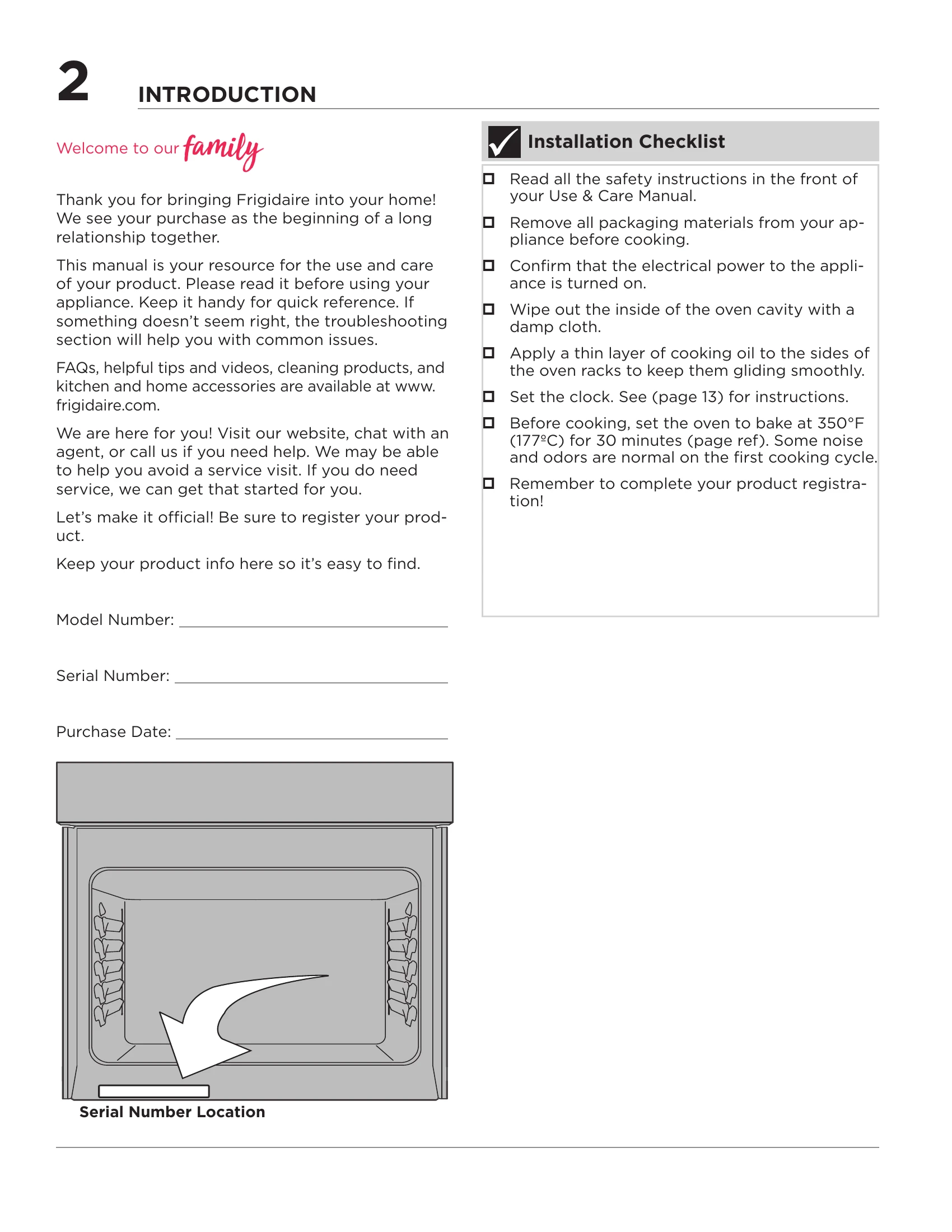

Manual for SINGLE WALL OVEN
Uploaded: Nov. 21, 2025, 7:46 p.m.
Manual Publish Date: 2021-08-01
Warranty Information
The appliance is covered by a one-year limited warranty covering defective parts or workmanship.
This Frigidaire oven manual provides instructions for installation, operation, and maintenance. Key operations include setting the clock, energy saving modes, general settings (temperature unit, volume, brightness, language), and oven temperature calibration. Specific cooking functions like Bake, Convection Bake, Broil, Keep Warm, and Self Clean are detailed. The manual also covers cleaning procedures for various oven surfaces and troubleshooting common problems related to baking, self-cleaning, and appliance leveling. Safety precautions are emphasized throughout.
Troubleshooting and error codes
| Problem | Cause / Solution |
|---|---|
| Oven Problems | |
| Poor baking results. | Many factors affect baking results. Use proper oven rack position. Center food in the oven and space pans to allow air to circulate. Preheat the oven to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. See “Oven Temperature Calibration” on page 14 if you feel the oven is too hot or too cool. |
| Flames inside oven or smoking from oven vent. | Excessive spills in oven. Grease or food spilled onto the oven bottom or oven cavity. Wipe up excessive spills before starting the oven. If flames or excessive smoke are present when using broil, see "Setting Broil" on page 34. |
| Oven smokes excessively when broiling. | Incorrect setting. Follow the "Setting Broil" on page 34. |
| Meat too close to the broil element or burner. Reposition the broil pan to provide proper clearance between the meat and broil element or burner. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean. | |
| Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently. Grease or food splatters will cause excessive smoking. | |
| Convection fan does not rotate. | Oven door is open. The convection fan will turn off if the oven door is opened when convection is active. Close the oven door. |
| Self-Clean Problems | |
| Self clean does not work. | Oven control not set properly. See "Self Clean" on page 40. |
| Oven racks discolored or do not slide easily. | Oven racks left in oven cavity during self clean. Remove oven racks from oven cavity before starting a self-clean cycle. Clean by using a mild abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry, and replace in oven. |
| Soil not completely removed after self clean. | Self clean was interrupted. Review instructions on "Self Clean" on page 40. |
| Excessive spills on oven bottom. Remove excessive spills before starting self clean. | |
| Failure to clean soil from the oven frame, the door liner outside the oven door gasket, and the small area at the front center of the oven bottom. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas before starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket. | |
| Other Problems | |
| Appliance is not level. | Poor installation. Place the oven rack in the center of the oven. Place a level on the oven rack. Adjust the leveling legs at the base of the appliance until the rack is level. |
| Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and have sufficient room for appliance clearance. | |
| Cannot move appliance easily. Appliance must be accessible for service. | Cabinets not square or are built in too tightly. Contact the builder or installer to make the appliance accessible. |
| Oven light does not work. | Be sure the oven light is secure in the socket. See "Replacing the Oven Light" on page 62. |
