Warranty Information
A limited one-year warranty covers functional repairs, paying for defective parts and labor for installation and use.

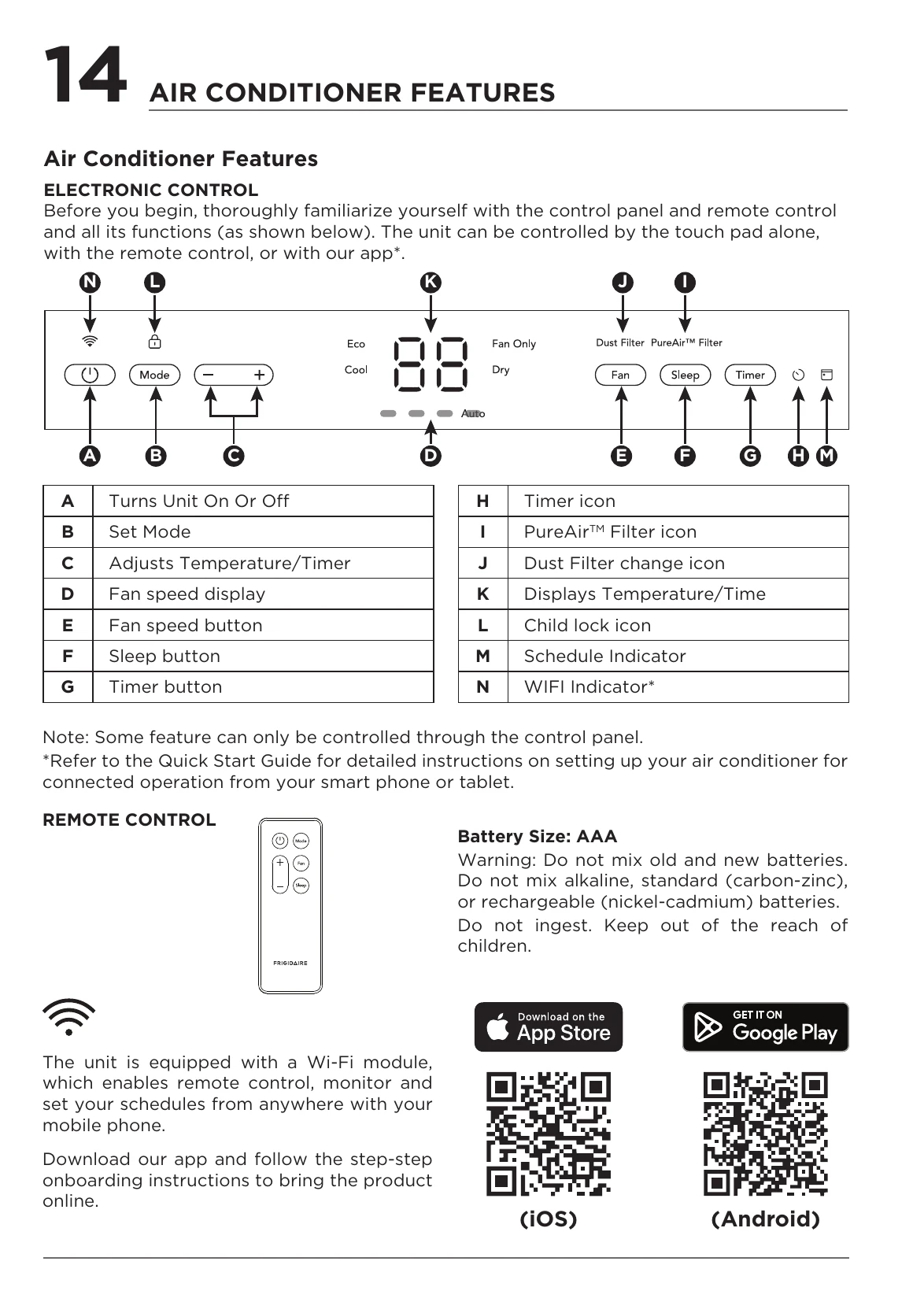

ELECTRONIC CONTROL
Familiarize yourself with the control panel and remote control. Unit can be controlled by touch pad, remote control, or app.
Basic Functions:
- On/Off: Turns the unit ON or OFF.
- Mode: Selects operating mode (Eco, Cool, Fan Only, Dry, Auto).
- Temperature/Timer: Adjusts temperature or timer settings.
- Fan Speed: Adjusts fan speed (High, Medium, Low, Auto).
- Sleep: Activates Sleep mode for gradual temperature adjustment.
- Timer: Sets delay start or stop timer.
- Child Lock: Press and hold 'Mode' for 3 seconds to lock/unlock controls.
- Dust Filter Indicator: Alerts when the dust filter needs cleaning.
- PureAir™ Filter Indicator: Alerts when the PureAir™ filter needs replacement.
Wi-Fi Connectivity: Unit is equipped with a Wi-Fi module for remote control and monitoring via mobile app.
Note: Some features may only be available via the control panel.
Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Air conditioner will not operate. | • Wall plug disconnected. Push plug firmly into wall outlet. • Plug Current Device Tripped. Press the RESET button. • House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. • Control is OFF. Turn Control ON and set to desired setting. |
| Air from unit does not feel cold enough. | • Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C). • Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil. • Reset to a lower temperature. • Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode. |
| Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front | • Outdoor temperature below 60 F° (16°C). To defrost the coil, set FAN ONLY mode. • Dust filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • PureAir™ filter(sold separately) may be dirty. Replace with new filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • Temperature is set too low for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a higher setting. |
| Air conditioner cooling, but room is too warm NO ice forming on cooling coil behind decorative front. | • Dirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning section. • PureAir™ filter(sold separately) may be dirty. Replace with new filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • Temperature is set too high. Set temperature to a lower setting. • Air directional louvers positioned improperly. Position louvers for better air distribution. • Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit. • Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc. • Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. |
| Air conditioner turns on and off rapidly. | • Dirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning section. • PureAir™ filter(sold separately) may be dirty. Replace with new filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils more frequently. |
