  • Film Advancing: The camera advances film frame by frame or continuously depending on switch positions (So, S4, S8, SM). The motor operates until specific switches turn off or a timer circuit is satisfied.
  • Film Rewinding: When the film is fully advanced, the camera automatically reverses the motor to rewind the film. This process is controlled by specific relays (A and B) and timer circuits that use capacitors C1 and C2.
  • Manual Rewind: A manual rewind function is available, likely activated by a dedicated button (R button).
  • Shutter and Exposure: The shutter operation is interlinked with film advancing and other switches. The camera also features an automatic exposure system with controls for exposure time and flashmatic photography.
  • Focusing: The camera incorporates an automatic focusing system with specific steps and measurement ranges, requiring adjustment for accuracy.

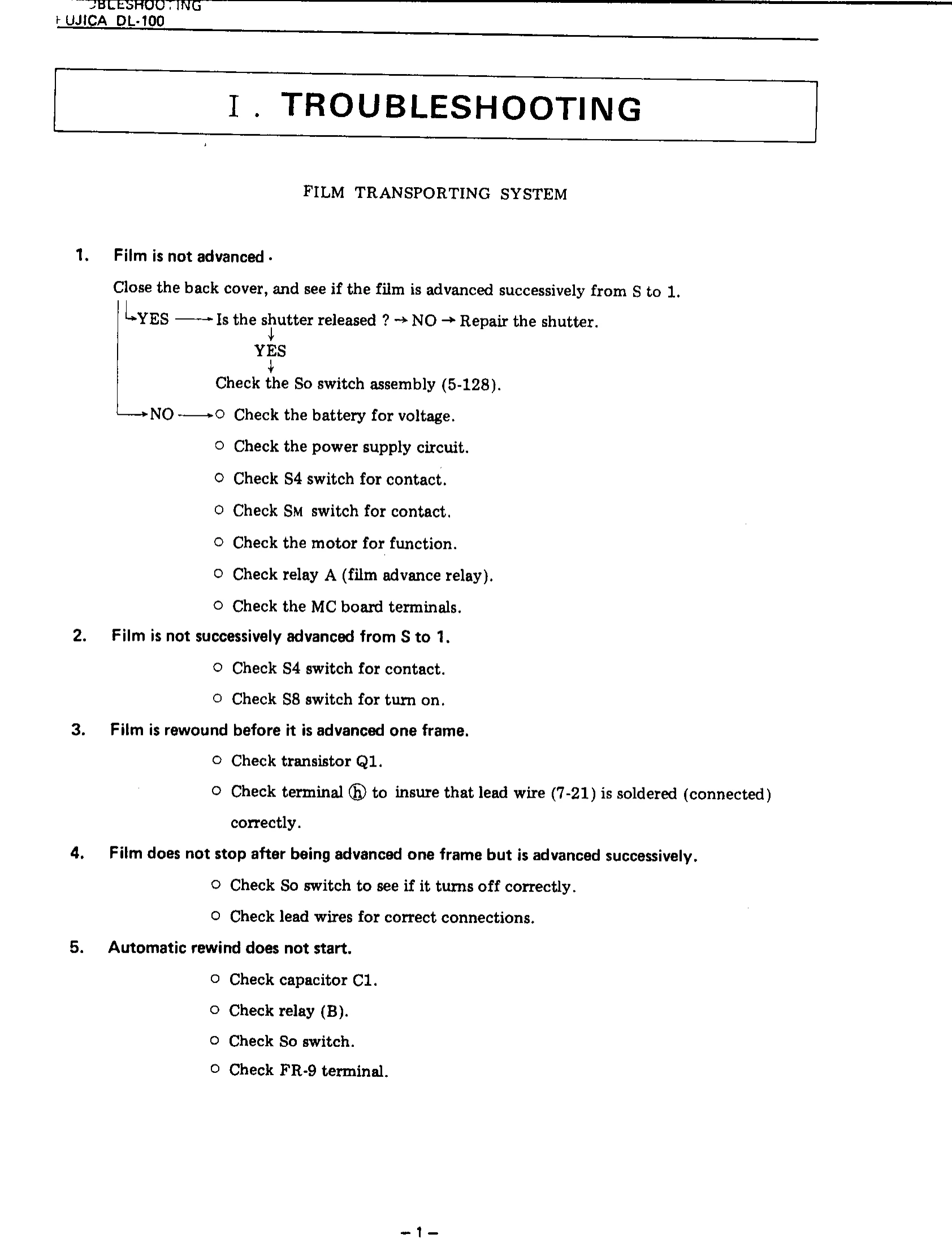

Troubleshooting and error codes

ProblemPossible Causes and Solutions
Film is not advanced
  • Check if shutter is released. If not, repair shutter.
  • If shutter is released, check So switch assembly (5-128).
  • If So switch is okay, check battery voltage, power supply circuit, S4 and SM switches, motor function, relay A, and MC board terminals.
Film is not successively advanced from S to 1
  • Check S4 switch for contact.
  • Check S8 switch for turn on.
Film is rewound before it is advanced one frame
  • Check transistor Q1.
  • Ensure lead wire (7-21) is correctly soldered.
Film does not stop after being advanced one frame but is advanced successively
  • Check So switch to see if it turns off correctly.
  • Check lead wires for correct connections.
Automatic rewind does not start
  • Check capacitor C1.
  • Check relay (B).
  • Check So switch.
  • Check FR-9 terminal.
Film stops before it is rewound completely
  • Check capacitor C2 for discharging.
  • Check Ss switch for alternating on/off.
  • Check So switch for turning on.
  • Check FR-9 terminal.
Motor does not stop after the film is rewound completely
  • Check capacitor C2 for function.
  • Check FR-9 terminal.
Film is not advanced but rewound only
  • Check SR switch for turning off.
  • Check related lead wires for short-circuit.
