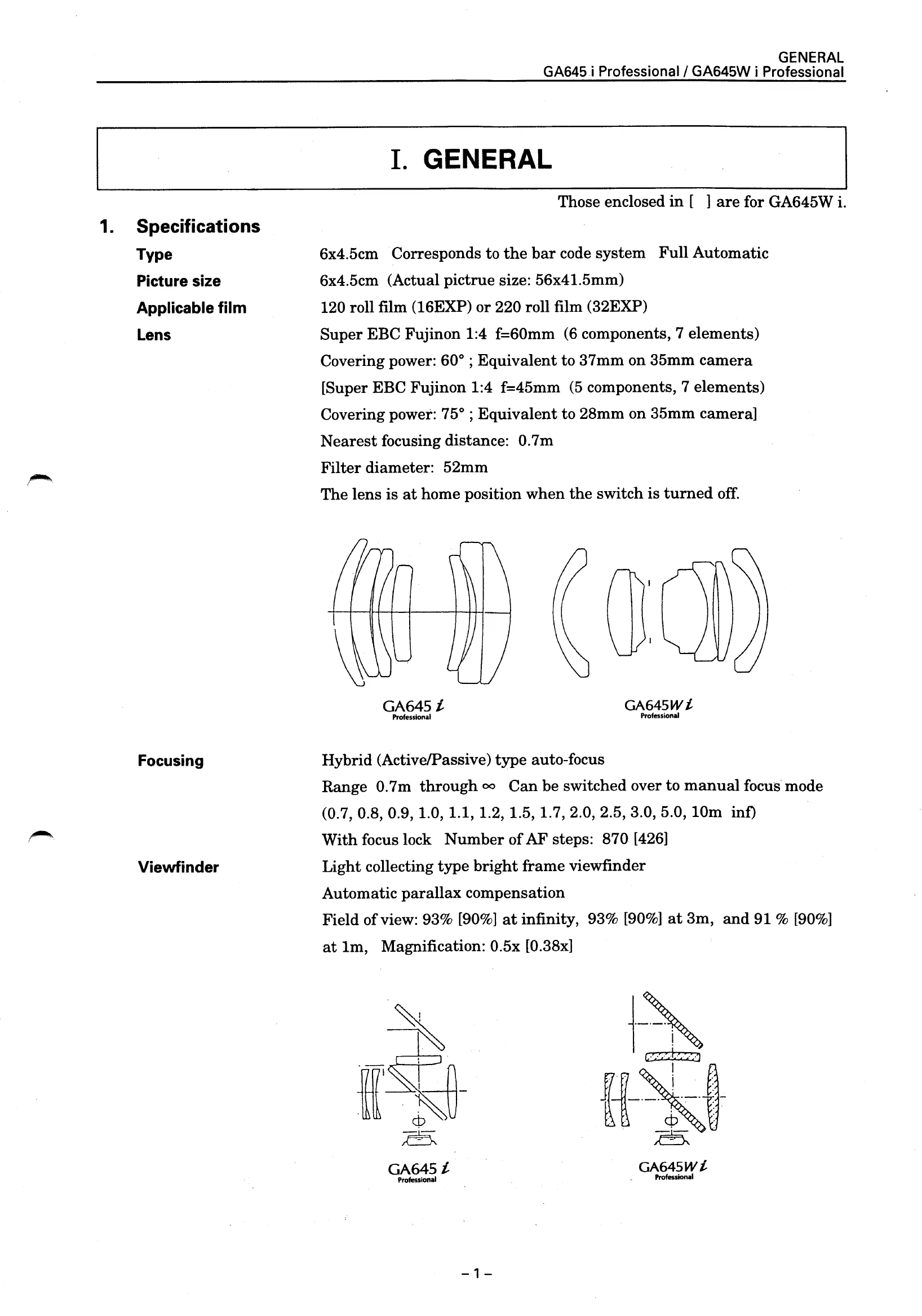

Manual for GA645i / GA645W i
Uploaded: Aug. 9, 2025, 11:48 p.m.
Manual Publish Date: 1997-09-01
Warranty Information
None
Camera Operation:
1. **Loading Batteries:** Insert two 3V lithium batteries (CR123A). The camera converts this to 3.5V and 5V for its internal systems.
2. **Power On:** Turn the select dial clockwise to power on the camera. The lens will extend to the standby position.
3. **Shooting Modes:** Select between Programmed AE (P), Aperture Priority AE (A), and Manual Exposure (M) using the select dial.
4. **Shutter Release:** Press the shutter button. The camera will meter light, focus, set exposure, and take the picture. Film will advance automatically.
5. **Film Loading:** Insert the film leader into the spool and close the camera back. The camera automatically advances the film to the first frame using a bar code system.
6. **Self-Timer:** Activate the self-timer for delayed shooting.
1. **Loading Batteries:** Insert two 3V lithium batteries (CR123A). The camera converts this to 3.5V and 5V for its internal systems.
2. **Power On:** Turn the select dial clockwise to power on the camera. The lens will extend to the standby position.
3. **Shooting Modes:** Select between Programmed AE (P), Aperture Priority AE (A), and Manual Exposure (M) using the select dial.
4. **Shutter Release:** Press the shutter button. The camera will meter light, focus, set exposure, and take the picture. Film will advance automatically.
5. **Film Loading:** Insert the film leader into the spool and close the camera back. The camera automatically advances the film to the first frame using a bar code system.
6. **Self-Timer:** Activate the self-timer for delayed shooting.
Troubleshooting and error codes
| Symptom | Cause | Countermeasure |
|---|---|---|
| Bar code film cannot be read | Bar code dirty or damaged | Clean bar code or use another film |
| Bar code film not recognized correctly | Incorrect bar code format | Refer to manual for correct format |
| ISO blinks on LCD | Error in bar code reading | Reset film speed, check bar code, or perform power-on reset |
