OPERATION DESCRIPTION
This manual provides a detailed description of the FUJI HD-M camera's operation, disassembly, reassembly, and adjustment procedures. It covers:

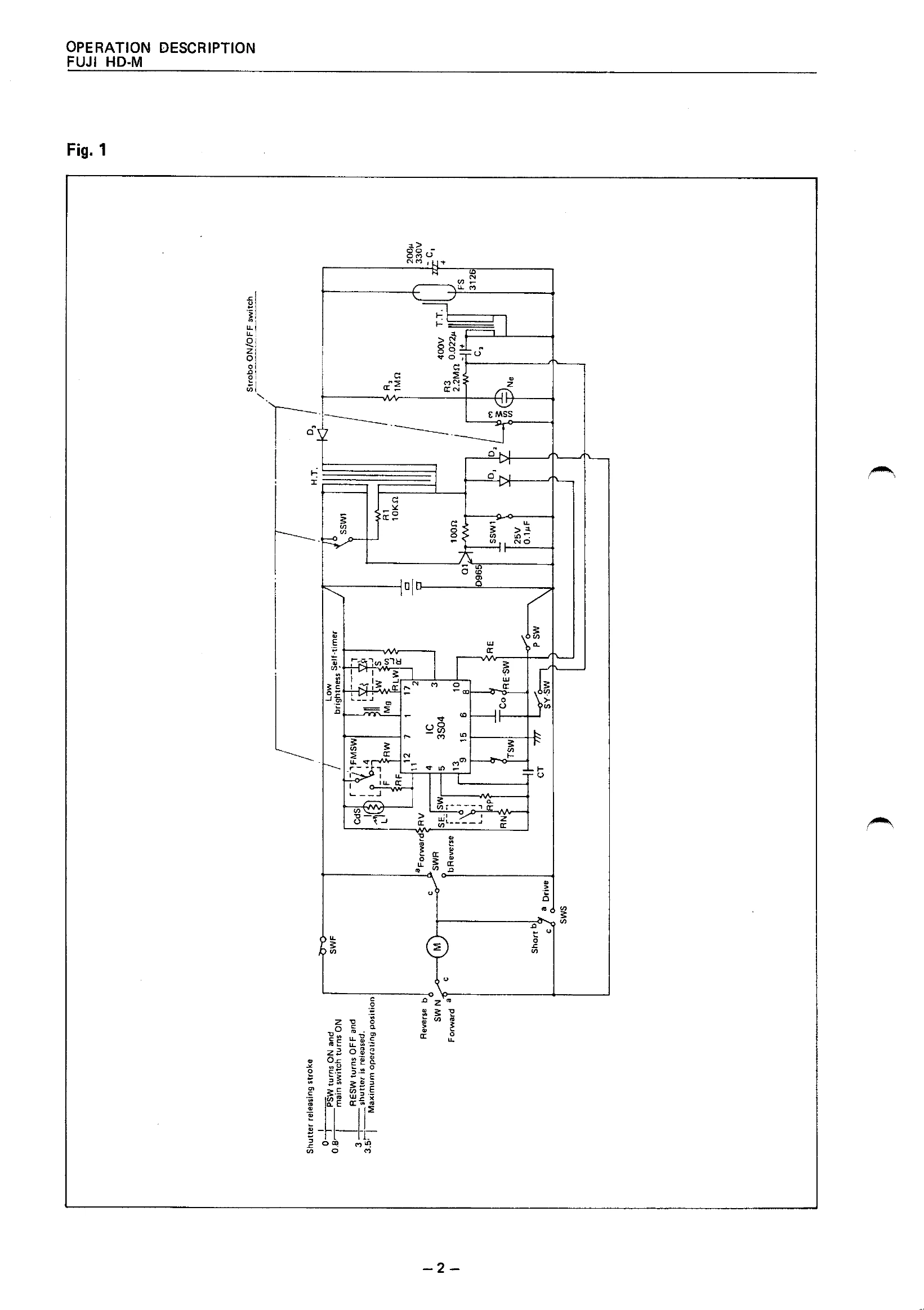

- Operation Description: Details the circuit, shutter system, and film advancing/rewinding/exposure counting systems.
- Disassembly: Step-by-step instructions for taking apart various components of the camera, including the front cover, film chamber, shutter, lens, and more.
- Reassembly and Adjustment: Guidance on putting the camera back together and adjusting its mechanisms.
- Repair and Adjustment: Troubleshooting common issues such as shutter problems, film not advancing or rewinding, and strobo malfunctions.
- Inspection: Procedures for checking the camera's condition.
- Parts List: A comprehensive list of all parts with their corresponding part numbers and quantities.
Diagrams and figures are included to illustrate the different parts and their functions.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Shutter is not released/Shutter release cannot be depressed | Check shutter release mechanism, lock lever, and power supply. |
| Film is not taken up | Inspect the film advancing mechanism, gears, and motor. |
| Motor does not operate correctly | Check motor connections, power, and any associated switches or PCBs. |
| Film is not rewound | Examine the film rewinding mechanism, motor, and related levers. |
| Exposure counter does not advance and/or return | Verify the exposure counter mechanism and its connection to the film movement. |
| Strobo does not flash | Check strobo circuit, flash capacitor, and trigger mechanism. |
| Neon tube lights or strobo flashes when strobo switch is turned off | Inspect strobo switch and related circuitry for proper function. |
| Water leaking | Check seals and O-rings for damage or improper installation. |
| Incorrect shutter operation | Review shutter system timing, magnet operation, and switch functions. |
