The manual covers specifications, troubleshooting, disassembly, reassembly, repair, adjustment, inspection, and parts list for the FUJICA HD-S camera. It details camera functions such as shutter, film advance, exposure control, flashmatic system, and viewfinder. Troubleshooting guides address common issues with step-by-step solutions. Disassembly and reassembly sections provide detailed instructions with diagrams for servicing the camera's internal components.
Troubleshooting and error codes
| Issue | Possible Cause | Action |
|---|---|---|
| Shutter does not open. (Nothing is photographed.) | Battery (voltage) | Replace. |
| Lead wire (soldering and short-circuit) | Check and repair. | |
| Contact piece (low pressure and cleanliness) | Adjust or clean. | |
| Switch (contact and cleanliness) | Adjust or repair. | |
| Shutter (function) | Adjust, repair or replace. | |
| Shutter does not close. | Switch (contact and cleanliness) | Adjust or repair. |
| Lead wire (soldering and short-circuit) | Repair. | |
| Shutter (function) | Adjust, repair or replace. | |
| Shutter does not operate automatically | ASA selector circuit and FM circuit (lead wire soldering) | Repair. |
| Resistors on ASA selector circuit (position and soldering) | Repair. | |
| FM switch and contact piece | Clean, adjust or repair. | |
| ASA switch and contact piece | Clean, adjust or repair. | |
| Shutter (function) | Adjust, repair or replace. | |
| Underexposure warning lamp (LED) does not light. (In the viewfinder) | ASA selector circuit and FM circuit (lead wire soldering) | Repair. |
| Underexposure warning lamp (LED) (resistor) | Repair or replace. | |
| FM switch (contact) | Clean, adjust or repair. | |
| Lead wire connected to the shutter (soldering) | Repair. | |
| Shutter (function) | Adjust, repair or replace. | |
| Self-timer stops in a half way. | Is film advance lever wound up completely? | Check. |
| Is self-timer lever operated correctly? | Check. | |
| Fitting with the front cover (O-ring) | Repair. | |
| Shutter (self timer portion) | Adjust or replace. | |
| Shutter is not released by self-timer. | Shutter (self-timer portion) | Adjust or replace. |
| Self-timer cannot be set. | Shutter (self-timer portion) | Adjust or replace. |
| Film advance lever cannot be wound up. | Shutter lock | Repair. |
| Battery (voltage, contact piece, etc.) | Replace. | |
| Shutter (function and leadwire connection) | Adjust, repair or replace. | |
| Film take up system (levers and gears) | Repair or replace. | |
| Film cannot be rewound. | Film rewind button | Repair. |
| Sprocket (idling) | Repair. | |
| Film rewind crank/knob | Repair. | |
| Exposure counter is not advanced or reset. | Kick lever (operation and torque) | Adjust or repair. |
| Spring (force) | Adjust, repair or replace. | |
| Gear | Repair or replace. | |
| Strobo does not flash. | Batteries (voltage) | Replace. |
| Strobo switch | Repair. | |
| Strobo (soldering) | Repair. | |
| FM circuit | Repair. | |
| Lead wires (soldering) | Repair. | |
| Shutter | Repair or replace. | |
| Accidentally flashes | Strobo trigger circuit | Repair or replace. |
| Switch and lead wire (short-circuit) | Repair and adjust. | |
| Not synchronized correctly | Strobo trigger circuit | Repair or replace. |
| Shutter (synchro switch) | Adjust or replace. | |
| Neon lamp (flash ready) does not light. | Batteries (voltage) | Replace. |
| Battery loading method | Check and correct. | |
| FM circuit | Repair. | |
| Lead wires (soldering) | Repair. | |
| Neon lamp | Replace. | |
| Film speed is not switched over. | Film speed selector (operation) | Repair. |
| Film speed selector switch contact | Adjust, repair or clean. | |
| ASA selector circuit or flexible circuit assembly | Repair. | |
| Seat block (4-115) | Repair. | |
| Lead wire (soldering and short-circuit) | Repair. | |
| Flashmatic system | Knock button (operation) | Repair and adjust. |
| FM (FPC) circuit contact | Clean, repair or adjust. | |
| FM aperture control circuit contact | Clean, repair or adjust. | |
| Lead wire (soldering and short-circuit) | Repair. | |
| Shutter | Repair, adjust or replace. | |
| Water leaking | Lens and surroundings | Repair or replace. |
| Shutter button seat | Repair or replace. | |
| Film advance lever | Repair or replace. | |
| Shutter release button | Repair or replace. | |
| Film speed selector | Repair or replace. | |
| Film rewind crank/knob | Repair or replace. | |
| Exposure counter window | Repair. | |
| Neckstrap eyelet | Repair or replace. | |
| Knock button | Repair or replace. | |
| Strobo | Repair or replace. | |

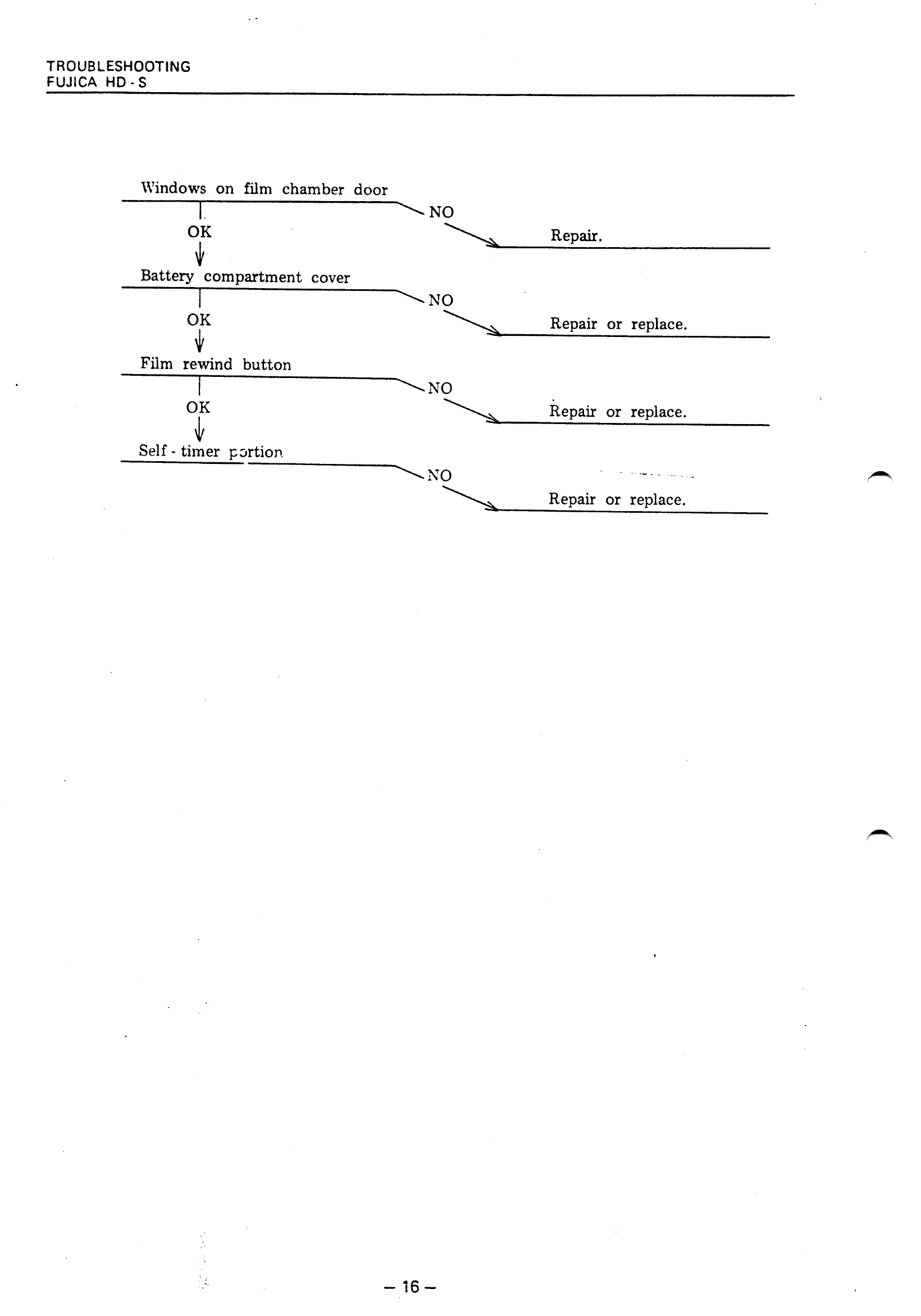

| Film chamber door (fitting) | Repair. | |
| Windows on film chamber door | Repair. | |
| Battery compartment cover | Repair or replace. | |
| Film rewind button | Repair or replace. | |
| Self-timer portion | Repair or replace. |
