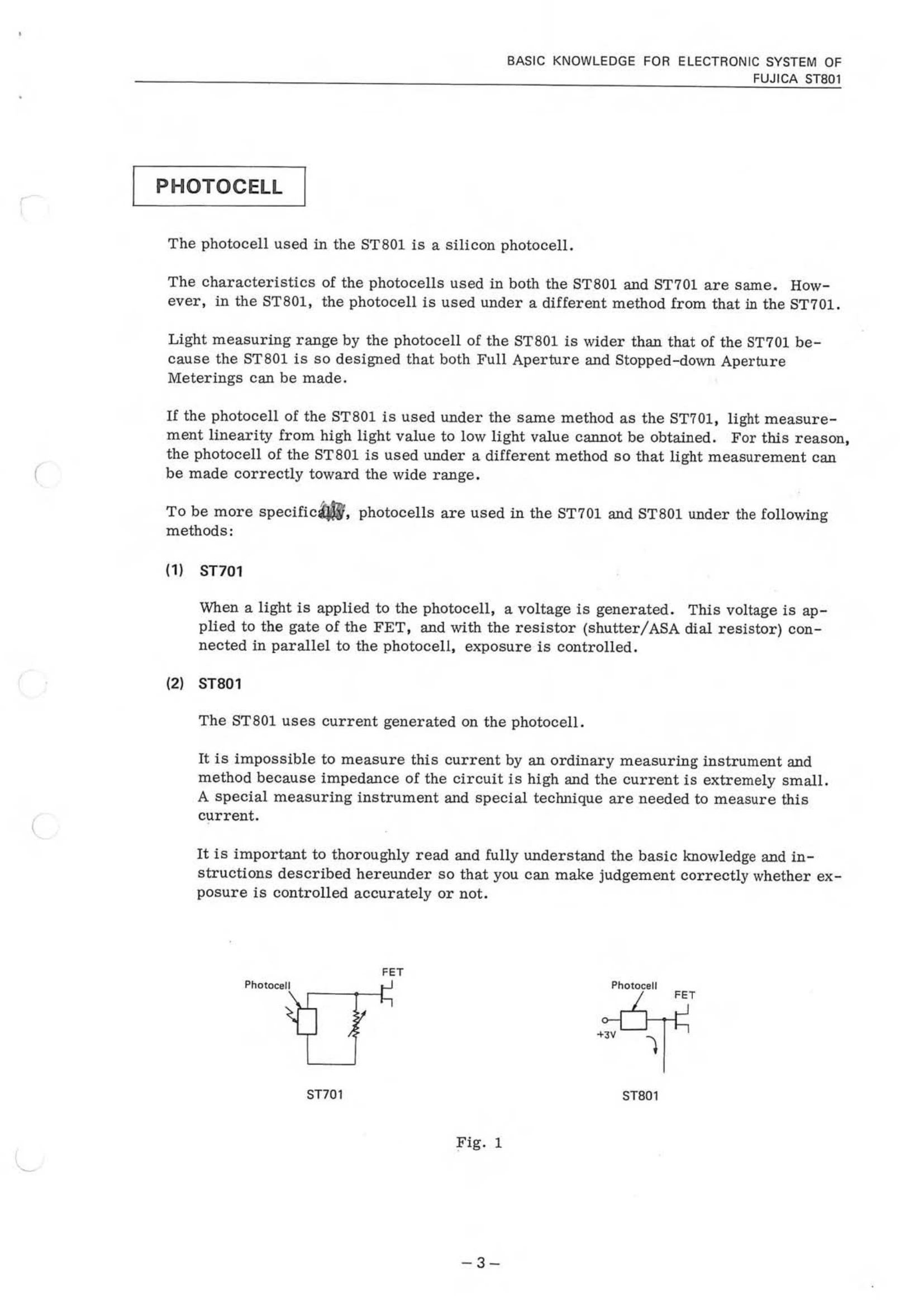

The Fujica ST-801 uses a 6V silver battery for power supply due to its higher current consumption compared to conventional cameras. The photocell used is a silicon photocell, with its characteristics being the same as in the ST701 but utilized differently to allow for both Full Aperture and Stopped-down Aperture Meterings. The camera employs FET circuits which act as impedance transducers, converting the high impedance photocell circuit to a low impedance one. The system includes compressor circuits for shutter and aperture resistors, and an amplifier circuit to process signals for the LED display. A comparator IC selects and lights LEDs in response to input voltage, with adjustments based on a standard voltage of 3V.
Troubleshooting and error codes
| Page | ||
| I | TROUBLESHOOTING | |
|---|---|---|
| 1. LED DOES NOT LIGHT | 1 | |
| 2. LED DOES NOT OPERATE | 2 | |
| 3. LED DOES NOT LIGHT AT A CONSTANT POSITION | 3 | |
| 4. RESPONSE OF LED IS TOO SLOW | 3 | |
| 5. LED DOES NOT GO OUT WHEN THE METER SWITCH IS TURNED OFF | 4 | |
| 6. DIFFERENCE BETWEEN FULL APERTURE METERING AND STOP-DOWN | ||
| METERING IS EXCESSIVE | 5 | |
| 7. OVER OR UNDER EXPOSURE | 5 | |
| 8. FILM ADVANCE AND REWIND | 6 | |
| a. Film cannot be advanced | 6 | |
| b. Film cannot be rewound | 6 | |
| 9. EXPOSURE COUNTER DOES NOT OPERATE | 7 | |
| 10. FOCUSING | 7 | |
| 11. SHUTTER SYSTEM | 7 | |
| 12. FILM IS SCARRED | 8 | |
| 13. LEAKAGE OF LIGHT | 9 | |
| II | DISASSEMBLY | 19 |
| 1. TOP COVER ASSEMBLY (1-98) | 20 | |
| 2. LENS MOUNT ASSEMBLY (2-91) | 22 | |
| 3. BOTTOM COVER (1-95) | 22 | |
| 4. SHUTTER RESISTOR ASSEMBLY (2-1) | 24 | |
| 5. EXPOSURE COUNTER ASSEMBLY (2-44) | 24 | |
| 6. SELF-TIMER ASSEMBLY (4-143) | 26 | |
| 7. AMPLIFIER ASSEMBLY (2-83) | 26 | |
| 8. PENTA PRISM ASSEMBLY (3-7) AND PHOTOCELL ASSEMBLY (3-38) | 28 | |
| 9. LSI (3-23) | 30 | |
| 10. FOCUSING SCREEN ASSEMBLY (3-26) | 30 | |
| 11. X-CONTACT ASSEMBLY (4-1) | 30 | |
| 12. GOVERNOR ASSEMBLY (5-137) | 34 | |
| 13. SHUTTER ASSEMBLY (4-145) | 36 | |
| 13.1 Quick return mechanism assembly (5-79) | 40 | |
| 13.2 Mirror assembly (5-23) | 42 | |
| 13.3 1st blind assembly (4-117) and 2nd blind assembly (4-111) | 42 | |
| 13.4 Shutter base plate assembly (4-77) | 44 | |
| 13.5 Mirror box assembly (11) (5-1) | 44 | |
| 13.6 Rotary plate assembly (5-39) | 44 | |
| 14. BASE PLATE ASSEMBLY (6-57) | 46 | |
| 15. SPOOL ASSEMBLY (6-39) | 46 | |
| 16. SPROCKET (6-11) | 48 | |
| 17. TAKE-UP SHAFT ASSEMBLY (6-7) | 48 |
