Manual for T300/T200/T190 Series

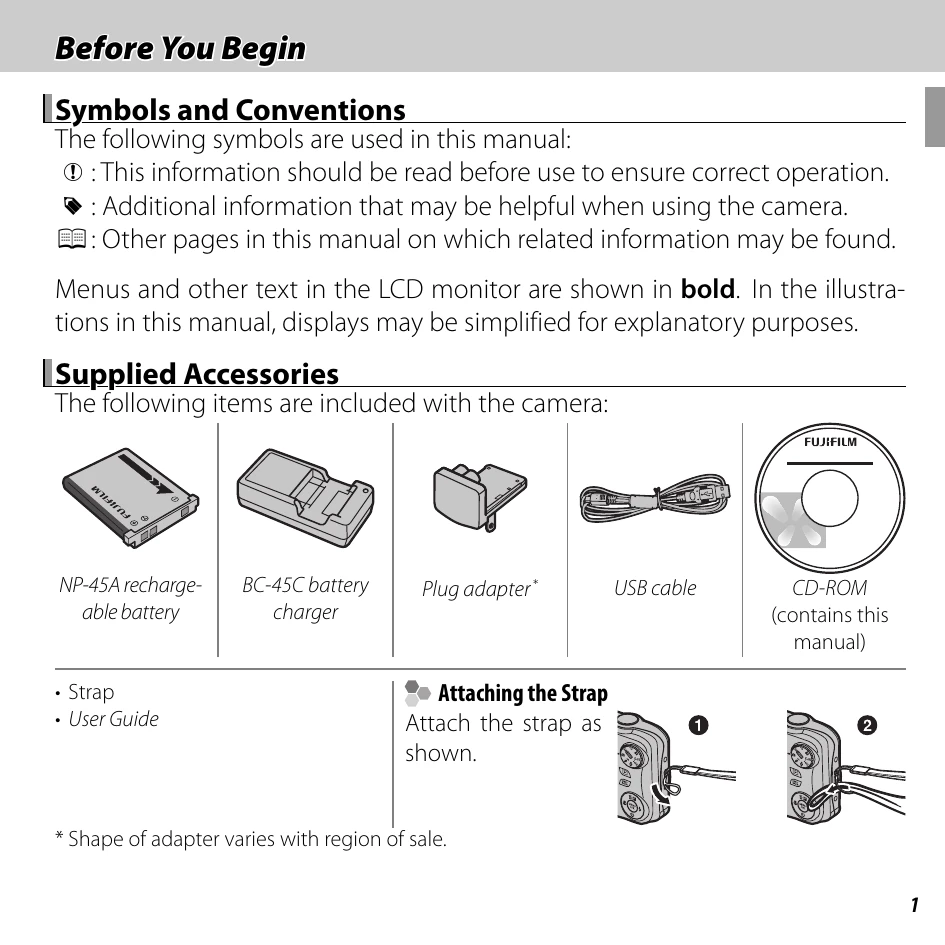

Before You Begin

• Symbols and Conventions: Familiarize yourself with manual symbols (e.g., ① for important info, ◆ for helpful tips, ■ for related pages). Menu items in the LCD are bold.
• Supplied Accessories: Check for battery, charger, plug adapter, USB cable, strap, user guide, and CD-ROM.
• Attaching the Strap: Follow the diagram to attach the strap to the camera.

Parts of the Camera

• Identify key components like the shutter button, ON/OFF button, self-timer lamp, flash, microphone, speaker, zoom control, LCD monitor, DISP/BACK button, mode dial, playback button, and indicator lamp.
• The indicator lamp shows status: glows green for focus lock, blinks green for focus warning, glows orange for recording, blinks orange for flash charging, and blinks red for lens/memory errors.

Camera Displays

• Shooting Display: Shows shooting mode, face detection, silent mode, focus frame, focus warning, available frames, sensitivity (ISO), image size/quality, FinePix color, white balance, battery level, dual IS mode, exposure compensation, shutter speed/aperture, date/time, blur warning, self-timer, macro mode, and flash mode.
• Playback Display: Shows playback mode, face detection, red-eye removal, silent mode, gift image, frame number, mark for upload, photobook assist, favorites, DPOF print indicator, and protected image.
• Battery Level: Indicated by color (white for partially or more than half charged, red for low battery, blinking red for exhausted).
