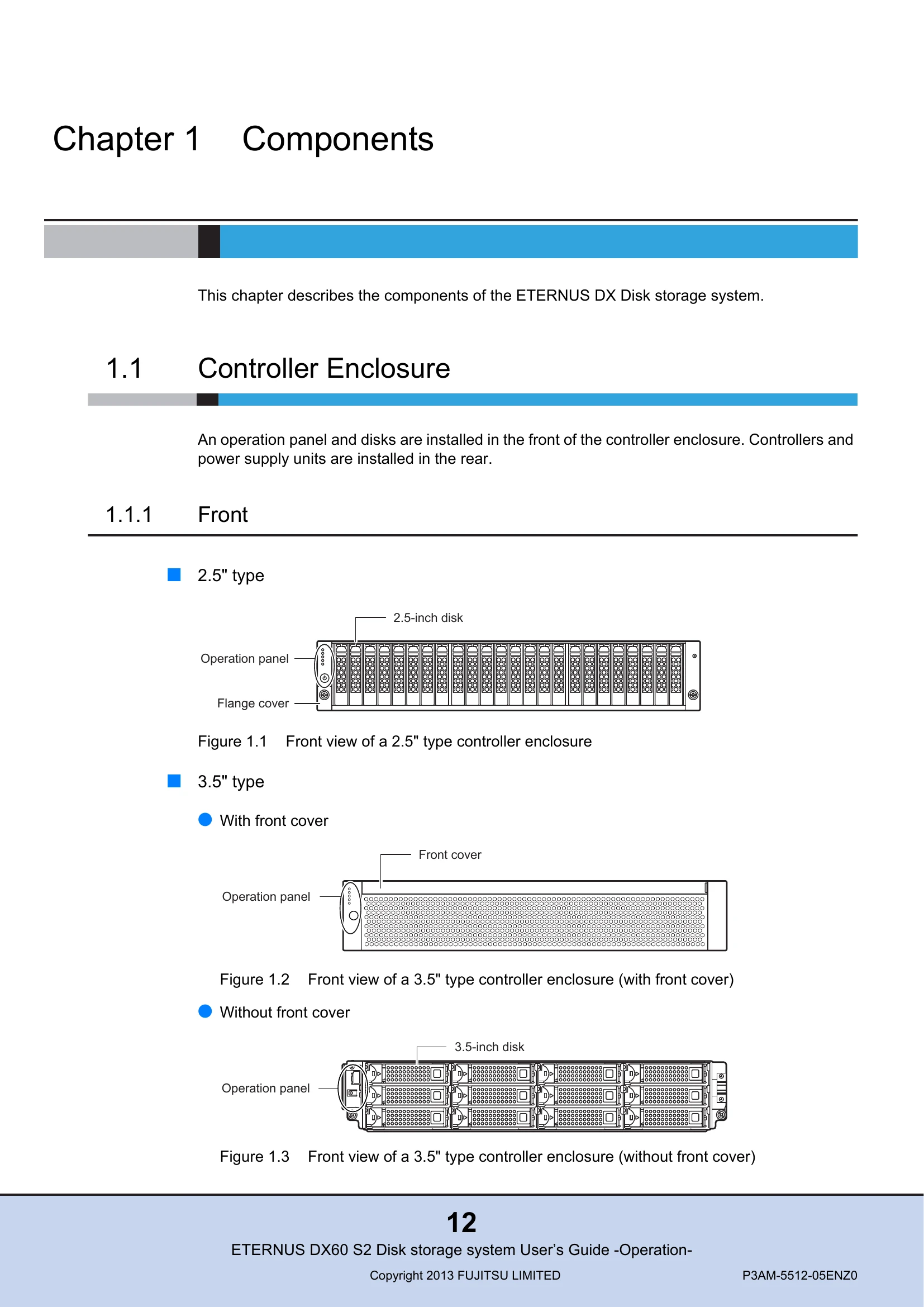

Chapter 1 Components
This chapter describes the components of the ETERNUS DX Disk storage system.1.1 Controller Enclosure
An operation panel and disks are installed in the front of the controller enclosure. Controllers and power supply units are installed in the rear.1.1.1 Front
Details on 2.5" and 3.5" type controller enclosures, including illustrations and labels for operation panels and disk slots.1.1.2 Rear
Illustrations of rear views for single and dual controller types, showing controllers and power supply units.1.1.3 Components (Front)
Describes the operation panel with its LEDs, power switch, AUTO POWER switch, MODE SELECT switch, and IP RESET switch.1.1.4 Components (Rear)
Details controllers (FC, iSCSI, SAS models) with their ports and LEDs, and Power Supply Units with their status LEDs. Also describes the System Capacitor Unit (SCU).Chapter 2 Standard Operations
This chapter explains how to turn on and off the ETERNUS DX60 S2 Disk storage system and how to operate the buttons on the operation panel.2.1 Powering On and Off
Instructions for switching the main line switch on the power distribution unit, powering on, and powering off the system.2.2 Attaching and Removing the Flange Cover
Procedure for attaching and removing the flange cover.2.3 Attaching and Removing the Front Cover
Procedure for attaching and removing the front cover.2.4 Turning On and Off the AUTO POWER Switch
Instructions for operating the AUTO POWER switch.2.5 Using the IP RESET Switch
Instructions for using the IP RESET switch.Chapter 3 Setup
This chapter describes the required settings and notes for operation of the ETERNUS DX60 S2 Disk storage system.3.1 Data Encryption
Information on data encryption settings.3.2 Eco-mode
Details on the Eco-mode functionality.3.3 Optimizing Volume Configurations
Procedures for RAID Migration, Logical Device Expansion (LDE), and LUN Concatenation.Troubleshooting and error codes
| Event type and event code | SNMP Trap No. | Upper: Message Middle: Detail information Lower: Description |
Remarks |
|---|---|---|---|
| 100000026 | 9 |
%d volume(s) deleted Volume $a:$b $a:$b $a:$b |
This message is notified when "Deleted Volume" is enabled for Informational Level in the event notification setting. |
| 100000027 | 9 |
%d volumes are deleted. %d: Quantity $a: Volume number $b: Volume name |
This message is notified when "Volume Name Changed" is enabled for Informational Level in the event notification setting. |
| 100000030 | 9 |
%d volume name(s) changed No. Name(old) Name(new) $a $b $c $a $b $c $a $b $c |
This message is notified when "FC Port Parameters Changed" is enabled for Informational Level in the event notification setting. |
| 100000031 | 9 |
%d volume names are changed. %d: Quantity $a: Volume number $b: Volume name (before change) $c: Volume name (after change) FC port parameters changed (CM#%a port#%b) Connect $a Transfer Rate $b Host Affinity $c Frame Size $d Reset Scope $e Reserve Cancel at Chip Reset $f The FC port parameter is changed. %a: CM number (0 - 1) %b: Port number (0 - 1) $a: Connection topology (Fabric or FC-AL) $b: Transfer speed $c: Host affinity (Enable or Disable) $c: Frame size $d: Reset Scope (I_T_L or T_L) $e: Reserve Reservation if Chip Reset (Enable or Disable) |
This message is notified when "SAS Port Parameters Changed" is enabled for Informational Level in the event notification setting. |
| 100000032 | 9 |
SAS port parameters changed (CM#%a port#%b) Host Affinity $a Reset Scope $b Reserve Cancel at Chip Reset $c The SAS port parameter is changed. %a: CM number (0 - 1) %b: Port number (0 - 1) $a: Host affinity (Enable or Disable) $b: Reset Scope (I_T_L or TL) $c: Reserve Reservation if Chip Reset (Enable or Disable) |
|
| 100000033 | 9 |
iSCSI port parameters changed (CM#%a port#%b) IP Address $a Subnet Mask $b Gateway $c ISNS Server $d iSCSI Name $e Alias Name $f Host Affinity $h Reset Scope $i Reserve Cancel at Chip Reset $j CHAP $k Header Digest $/ Data Digest $m CmdSN Count $n (This item is displayed when the CmdSN count number is set.) The iSCSI port parameter is changed. %a: CM number (0 - 1) %b: Port number (0 - 1) $a: IP address $b: Subnet mask $c: Default gateway $d: iSNS server $e: iSCSI Name $f: Alias Name $h: Host affinity (Enable or Disable) $i: Reset Scope (I_T_L or T_L) $j: Reserve Reservation if Chip Reset (Enable or Disable) $k: CHAP (Enable or Disable) /: Header Digest (CRC32C or OFF) $m: Data Digest (CRC32C or OFF) $n: CmdSN count number |
This message is notified when "iSCSI Port Parameters Changed" is enabled for Informational Level in the event notification setting. |
| 100000033 | 9 |
Host WWN registered No. Name WWN Host Response $a $b $c $d:$e $a $b $c $d:$e $a $b $c $d:$e An FC host is registered. $a: Host number $b: Host name $c: Host WWN $d: Host response number $e: Host response name |
This message is notified when "FC Host Information Changed" is enabled for Informational Level in the event notification setting. |
| 100000033 | 9 |
Host SAS Address registered No. Name SAS Address Host Response $a $b $c $d:$e $a $b $c $d:$e $a $b $c $d:$e A SAS host is registered. $a: Host number $b: Host name $c: SAS address $d: Host response number $e: Host response name |
This message is notified when "SAS Host Information Changed" is enabled for Informational Level in the event notification setting. |
| 100000034 | 9 |
iSCSI host registered No. Name iSCSI Name (IP Address:Port#) $a $b $c ($d) $a $b $c ($d) $a $b $c ($d) No. Alias Name Host Response $a $f $g:$h $a $f $g:$h $a $f $g:$h An iSCSI host is registered. $a: Host number $b: Host name $c: iSCSI Name $d: IP address $f: Alias Name $g: Host response number $h: Host response name |
This message is notified when "iSCSI Host Information Changed" is enabled for Informational Level in the event notification setting. |
| 100000035 | 9 |
%d host name(s) changed No. Name(old) Name(new) $a $b $c $a $b $c $a $b $c %d host names are changed. %d: Quantity $a: Host number $b: Host name (before change) $c: Host name (after change) |
This message is notified when "Host Name Defined" is enabled for Informational Level in the event notification setting. |
| 100000036 | 9 |
Host response registered (A)Byte-0 of Inquiry Response (B)Inquiry VPD ID Type (C)Inquiry Standard Data Version (D)Command Timeout Interval (E)Load Balance Response (F)Reservation Conflict Response for Test Unit Ready (G)Host Specific Mode (H)Asymmetric/Symmetric Logical Unit Access (I)LUN Mapping Changes (J)LUN Capacity Expansion (K)Vendor Unique Sense Code (L)Sense Data Conversion No. Name (A) (B) (C) (D) (E) (F) (G) (H) (I) (J) 0x$x $y $a $b $c $d sec. $e $f $g $h $i $j 0x$x $y $a $b $c $d sec. $e $f $g $h $i $j 0x$x $y $a $b $c $d sec. $e $f $g $h $i $j No. Name (I) (J) (K) (L) 0x$x $y $i $j $k $l 0x$x $y $i $j $k $l $A -> $B 0x$x $y $i $j $k $l A host response is registered. : $x: Host response number : $y: Host response name $a: Byte-0 of Inquiry Response $b: Inquiry VPD ID Type $c: Inquiry Standard Data Version $d: Command monitoring time $e: Overload response status $f: Reservation Conflict Response for Test Unit Ready $g: Specific host operation $h: Logical Unit access topology $i: Add or remove volumes $j: Change volume capacity $k: Vendor Unique Sense Code $l: Sense code conversion pattern (When "Customize" is selected, the conversion source sense and converted sense is displayed in "$A -> $B" format. $A: Conversion source sense (SK/ASC/ASCQ) $B: Converted sense (SK/ASC/ASCQ)) |
This message is notified when "Host Response Changed" is enabled for Informational Level in the event notification setting. |
| 100000037 | 9 |
LUN mapping registered (CM#%a port#%b Host Affinity Disable) LUN Volume $c $d:$e $c $d:$e $c $d:$e A LUN mapping (with host affinity disabled) is registered. %a: CM number (0 - 1) %b: Device number (0 - 1) $c: Logical unit number $d: Volume number $e: Volume name |
This message is notified when "LUN Mapping Changed" is enabled for Informational Level in the event notification setting. |
| 100000038 | 9 |
Reset group changed 0 1 01 01 CM#0 port#0 - - CM#0 port#1 - - CM#1 port#0 - - CM#1 port#1 - - A reset group is changed. *: A port is selected. :-: A port is not selected. |
This message is notified when "Reset Group Changed" is enabled for Informational Level in the event notification setting. |
| 100000039 | 9 |
Host affinity group registered (No.%a) Affinity Group $a:$b (LUN$x-$y) LUN $c Volume $d:$e LUN $c Volume $d:$e LUN $c Volume $d:$e A host affinity group is registered. %a: Affinity group number $a: Affinity group number $b: Affinity group name $x-$y: Range of LUN $c: Logical unit number $d: Volume number $e: Volume name |
These messages are notified when "LUN Mapping Defined" is enabled for Informational Level in the event notification setting. |
| 10000003A | 9 |
LUN mapping registered (CM#%a port#%b Host Affinity Enable) Host Host Affinity $a:$b $c:$d A LUN mapping (with host affinity enabled) is registered. %a: CM number (0 - 1) %b: Port number (0 - 1) $a: Host number $b: Host name $c: Host affinity group number $d: Host affinity group name |
|
| R 06SSMM00 | 25 |
Controller Module#m(zz xxHz) BE Expander Normal <pppppppppppp ssssssssss rrrrr> Normal status is restored for a CM BE Expander error. SS: Component subtype MM: CM module ID (10 – 11) m: CM number (0 - 1) zz: Model name (FC4G, SAS, or iSCSI) xx: CPU frequency (1.2GHz) pp...: Component number ss...: Serial number rr...: Version |
These messages are notified when "Recovery from Error" is enabled for Warning Level in the event notification setting. They are not notified during maintenance operations. |
| R 90SSddnn | 25 |
Expander DE#dd/EXP#n Normal <pppppppppppp SSSSSSSSSS rrrrr> Normal status is restored for a DE Expander error. SS: Component subtype dd: DE-ID ("00" for a controller enclosure) nn: Port number (00-01) n: EXP number (0 - 1) pp...: Component number ss...: Serial number rr...: Version |
|
| R D2SSdd0n | 22 |
Power Supply Unit DE#dd/PSU#n Normal <pppppppppppp ssssssssss rrrr> Normal status is restored for a PSU error. SS: Component subtype dd: DE-ID ("00" for a controller enclosure) n: PSU number (0 - 1) pp...: Component number ss...: Serial number rr...: Version |
|
| R DASSdd00 | 26 |
DE OUT TEMP Normal Normal status is restored for a CE exhaust temperature error or DE exhaust temperature error. dd: DE-ID ("00" for a controller enclosure) |
|
| R DBSSdd00 | 26 |
DE IN TEMP Normal Normal status is restored for a CE intake temperature error or DE intake temperature error. dd: DE-ID ("00" for a controller enclosure) |
|
| 04 F1 90 | DE Expander is disconnected. | These sense codes are notified when "Module was broken" is enabled for Error Severity Level in the event notification setting. They are not notified during maintenance operations. | |
| 04 F1 91 | DE Expander Port is disconnected. | ||
| 04 F1 D2 | PSU is disconnected. | ||
| 04 F1 DA | CE exhaust temperature error or DE exhaust temperature error is detected. | ||
| 04 F1 DB | CE intake temperature error or DE intake temperature error (sensor failure) is detected. | ||
| 04 F2 06 | CM EXP is disconnected. | ||
| 04 F2 08 | CM DI port is disconnected. | ||
| 04 F2 09 | CM SAS port is disconnected. | ||
| 04 F2 0A | CM BE Expander port is disconnected. | ||
| 04 F2 0B | CM memory is disconnected. | ||
| 04 F2 0C | CM Flash ROM is disconnected. | ||
| 04 F2 0E | NAND Controller is disconnected. | ||
| 04 F2 0F | SCU is disconnected. | ||
| 04 F2 11 | CM Port is disconnected. | ||
| 04 F2 12 | CM FE Expander is disconnected. | ||
| 04 F2 13 | CM FE Expander Port is disconnected. | ||
| 04 F8 00 | Pinned Data occurs. | This sense code is notified when the relevant event occurs. | |
| 06 11 90 | Writing of Bad Data (data lost identifier) occurs. | These sense codes are notified when "RAID Degradation Event" is enabled for Warning Level in the event notification setting. They are not notified during maintenance operations. | |
| 06 F2 80 | Rebuilding to a hot spare is performed. | These sense codes are notified when "RAID Recovery Event" is enabled for Warning Level in the event notification setting. They are not notified during maintenance operations. | |
| 06 F2 81 | Rebuilding to a Disk Drive is performed. | ||
| 06 F2 82 | Rebuilding to a hot spare is complete. | ||
| 06 F2 83 | Rebuilding to a Disk Drive is complete. | ||
| 06 F2 84 | Copyback starts. | ||
| 06 F2 85 | Copyback is complete. | ||
| 06 F2 88 | Rebuilding to a hot spare or a replaced disk is complete, but Bad Data (data lost identifier) exists. | ||
| 06 F2 8A | Rebuilding to a disk is halted. | ||
| 06 F2 8B | Rebuilding to a replaced disk is halted. | ||
| 06 F2 8C | Copyback is halted. | ||
| 06 F2 8D | Copyback is halted because an error is found in the copy source disk. | ||
| 06 FB 01 | CM error is detected. | These sense codes are notified when "Module reported a Warning" is enabled for Warning Severity Level in Setup Event Notification. They are not notified during maintenance operations. | |
| 06 FB 06 | CM BE Expander is detected. | ||
| 06 FB 08 | CM DI Port error is detected. | ||
| 06 FB 09 | CM SAS Port error is detected. | ||
| 06 FB 0A | CM BE Expander Port error is detected. | ||
| 06 FB 0C | CM Flash ROM error is detected. | ||
| 06 FB 0E | CM NAND Flash error is detected. | ||
| 06 FB 80 | SMART is reported from the 3.5 inch SAS Disk. | These sense codes are notified when "Disk reported a Warning" is enabled for Warning Level in the event notification setting. They are not notified during maintenance operations. | |
| 06 FB 81 | SMART is reported from the 2.5 inch SAS Disk. | ||
| 06 FB 90 | DE Expander error is detected. | These sense codes are notified when "Module reported a Warning" is enabled for Warning Severity Level in Setup Event Notification. They are not notified during maintenance operations. | |
| 06 FB 91 | DE Expander Port error is detected. | ||
| 06 FB 0B | Many correctable errors occurred in the CM memory. | ||
| 06 FB 0E | PSU error is detected. | ||
| 06 FB D2 | DE exhaust temperature error (Warning) is detected. | ||
| 06 FB DA | DE intake temperature error (Warning) is detected. | ||
| 06 C1 01 | CM is rebooted |
