Operating the Console Drawer

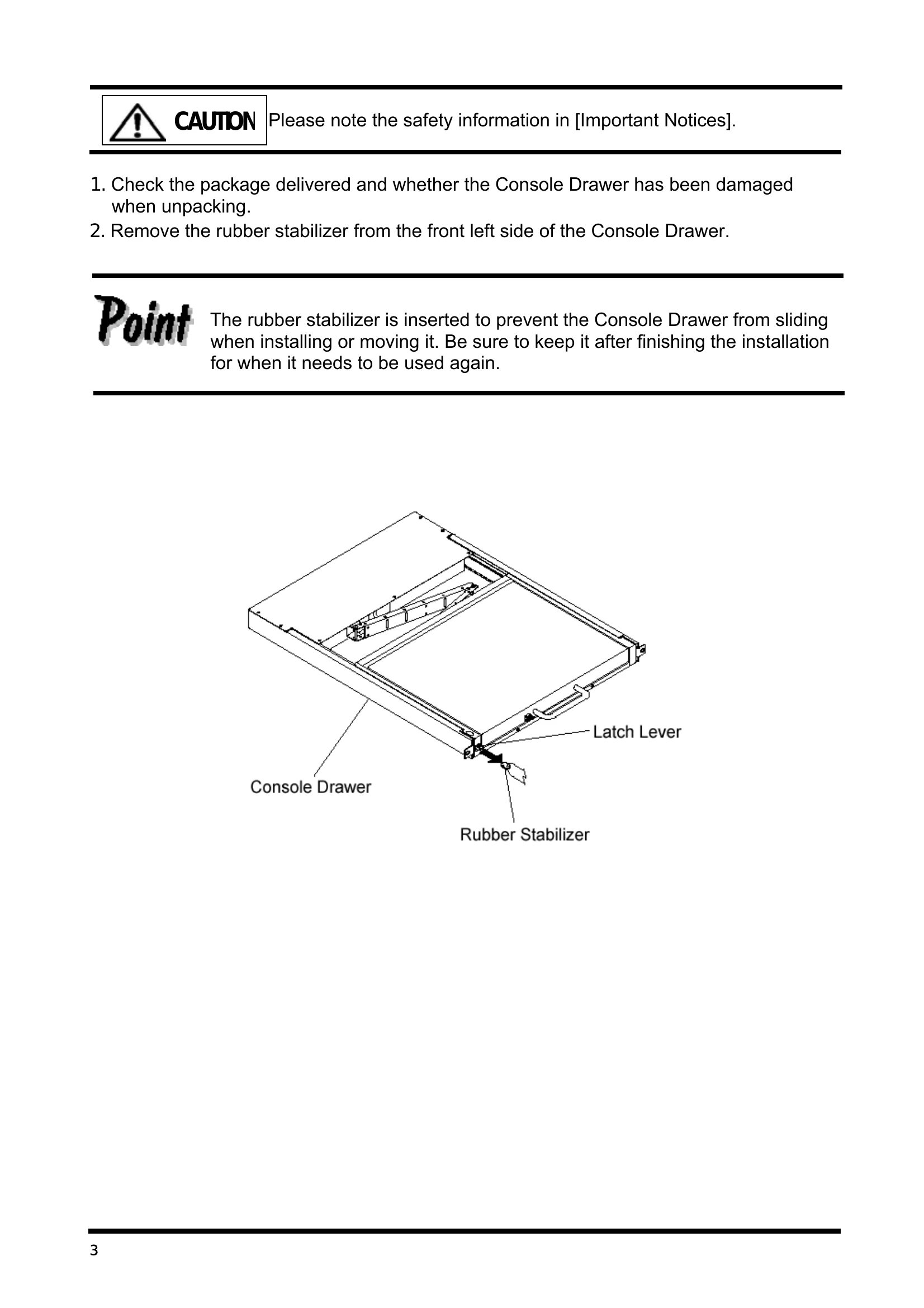

  1. Remove the rubber stabilizer if not already done.
  2. Push down the latch lever and pull out the Console Drawer until it clicks. Ensure screws are tight.
  3. Push up the LCD lock, grasp the handle, and open the monitor.
  4. Turn on the monitor power using the POWER button.
  5. Turn on the power for each connected server.

Adjusting the Monitor

  1. Press the Menu button to open the menu.
  2. Select the item to adjust using the ▼ and ▲ buttons.
  3. Switch between adjustment screens using the ❍ button.
  4. Change setting values with the ▼ and ▲ buttons.
  5. Apply settings and return to the menu screen with the ❍ button.
  6. Press the Menu button again to close the menu.

Troubleshooting and error codes

Symptom Cause Action
No monitor display The AC cord is not connected to the electric outlet or to the switch device. Connect the AC cord.
The AC power is off. Turn on the AC power.
POWER button was turned OFF. Turn POWER button ON.
Power lamp (green) is out. Input image signal from server.
No image signal from server (suspended state) Input image signal from server.
The keyboard and mouse do not operate or operate strangely. Connection is made to SUN port on CONSOLE side. Connect to PS/2 port.
Cannot get out of Hot Key Mode Press the [Enter] or [ESC] key
The key repeat is abnormal. Change the speed setting for the key repeat on the server.
A non-supported keyboard or mouse is connected. Replace with a supported keyboard or mouse.
Poor screen quality (Faded images, blurred characters, etc.) Connection/cable is defective Confirm the connector connection.
Replace with a different cable. If this solves the problem, replace with a new cable.
Window shifts or does not display when switching Wrong resolution Adjust the resolution or use the monitor function
Monitor not supported or out-of-sync when a monitor other than the monitor for Console Drawer is connected. Connect compatible (multi-sync) monitor.
Adjust on monitor side.
Cannot go into Auto Scan Mode Device enters Hot Key Mode The device goes into Hot Key Mode, press the number key (0).
Cannot go into Hot Key Mode Wrong key Press the number key (0).
First level are the number keys (1 through 8).
Second level are F1 through F8.
The auto scan switch cycle is abnormal. The switch cycle has not been adjusted. (The default value is 10 seconds.) Use the cursor keys (↑ and ↓) to adjust it.
Operation stops after a period of normal operation. Connection has been disrupted. Check the connections and the restart.
The switcher is hung up. Press the reset switch.
A problem has occurred at the server. Correct the problem at the server.
Cascaded connections are not recognized. A problem has occurred at the switcher. Press the reset switch. (Both the slave and the master)
The OSD display flashes at 5-second cycles. No image (H/V Sync) signal from server (suspended state) Input image (H/V Sync) signal. Or, switch to server having an image (H/V Sync) signal.
