Manual for P22W-5 ECO
Uploaded: Nov. 21, 2025, 9:22 p.m.
Manual Publish Date: 2009-10-01
- Powering On/Off: Use the power button to switch the device on and off.
- Monitor Settings: Adjust brightness, contrast, image settings, audio, and color temperature using the on-screen display (OSD) menu and control panel buttons.
- Input Selection: The monitor automatically detects the input signal or can be manually set for VGA, DVI, or HDMI.

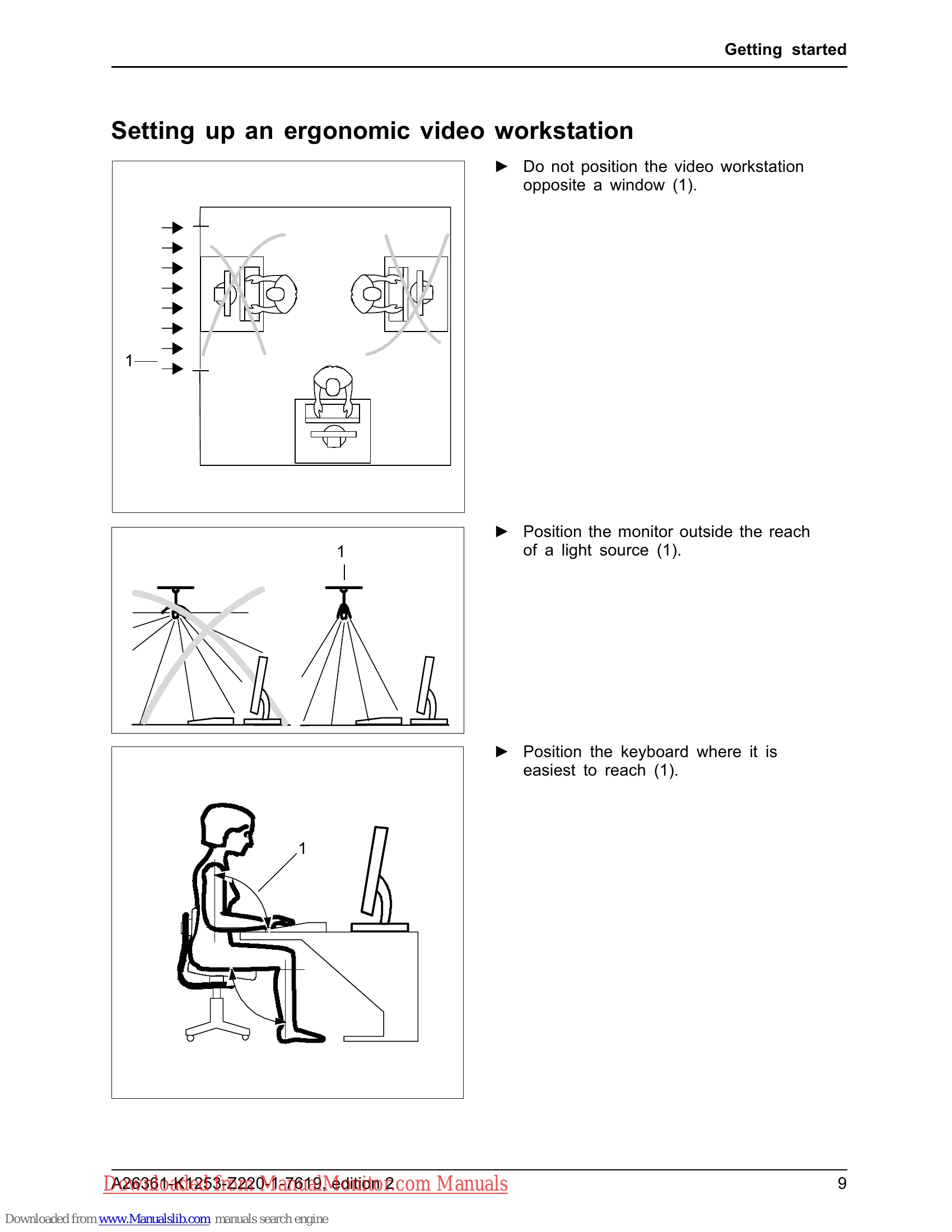

- Ergonomics: Set up an ergonomic workstation by positioning the monitor, keyboard, and considering lighting.
- Troubleshooting: Check common issues like no screen display, no signal, and picture distortions.
- Safety: Observe safety instructions regarding power cables, cleaning, and environmental conditions.
Troubleshooting and error codes
| Having this problem? | Check the following points: |
|---|---|
| No screen display Power indicator does not light up |
Check whether changing the 0W switch on the rear to setting 1 cures the problem. Check whether the power cable on the monitor is connected correctly. |
| No screen display Power indicator is lit |
Check whether the computer is switched on. Check whether the computer is switched on. Check whether the data cable for the monitor is correctly attached to the monitor port on the computer. Press any key on the computer keyboard. The computer may be in power saving mode. Alter the brightness and/or contrast until you get a picture. |
| Message: No Signal | Check whether the data cable for the monitor is correctly attached to the monitor port on the computer. |
| Message: Frequency out of range: ## kHz / ## Hz Please change the display mode to 1680 x 1050 with 60 Hz |
Check whether the computer is switched on. The input signal (horizontal frequency and refresh rate) at the displayed input does not correspond to the technical data for the monitor. Adjust the video frequency range using the computer software (see documentation for the computer or display adapter). Set a different screen resolution using the computer software (see documentation for the computer or display adapter). The monitor recognises an undefined mode (see chapter "Technical data", Page 27). |
| Picture position not correct | Press the EXIT / AUTO | button to perform auto-adjustment of the screen. |
| Picture is shaking | Check whether the data cable for the monitor is correctly attached to the monitor port on the computer. Press the EXIT / AUTO button to perform auto-adjustment of the screen. |
| Picture is wrongly adjusted | Press the SELECT / MENU button to activate the Factory Recall function. The Auto Processing message appears. |
| Picture disturbances (vertical lines) | Press the EXIT / AUTO | button to perform auto-adjustment of the screen. |
| Picture disturbances (horizontal lines, picture noise) | Press the EXIT / AUTO | button to perform auto-adjustment of the screen. |
| The screen becomes darker | The background lighting has a limited lifetime. If your monitor display should become too dark, the background lighting will have to be replaced. Please contact our Service desk. |
