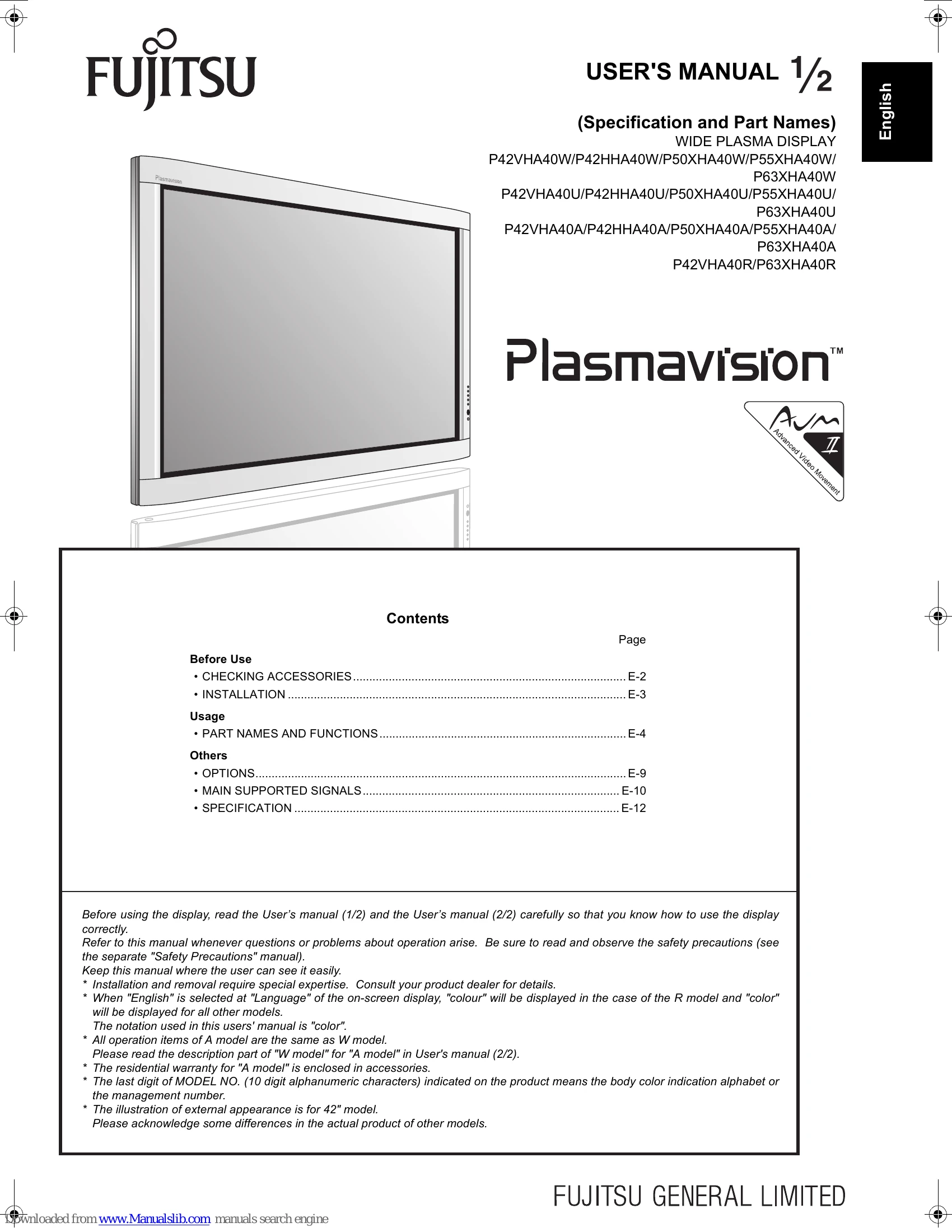

Manual for P42VHA40W

Manual for P42VHA40W

Brand: Fujitsu

Category: Monitors

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:49 p.m.

Warranty Information

Regulation information including UL, CSA, CE, and AS safety and EMC compliance is provided.

  • Before Use: Check accessories, ensure proper installation in a well-ventilated area, and observe safety precautions.
  • Connecting Equipment: Connect external devices like VCRs, DVD players, satellite tuners, and PCs to the appropriate input terminals, using ferrite cores where recommended.
  • Basic Operations: Power on/off, mute audio, select input modes, and adjust volume using the remote control or buttons on the display.
  • Picture Adjustments: Fine-tune image quality through menus for settings like Chroma Transient, Image Identify, Color Temperature, Color Focus, and Progressive Scan (24/30 Frame Mode, Jaggies Filter, Motion Setting).
  • Screen Adjustments: Adjust screen position (horizontal and vertical) and size (width and height) for optimal viewing.
  • Audio Adjustments: Adjust Treble, Bass, Volume Balance, and Loudness for desired sound output.
  • Other Settings: Access advanced options like Screen Orbiter to minimize phosphor burn-in, set input signal modes, manage auto power-off, and select audio input sources.
  • Maintenance: Clean the screen and cabinet with soft cloths, and periodically clean ventilation grilles.

Troubleshooting and error codes

Problem Action
• Power does not turn ON. • Check whether the power plug is securely inserted into the receptacle.
• Check cables for disconnection.
• Check whether the power for all input equipment is ON.
• Check for connection to wrong terminals or for wrong input mode.
• Check whether the input mode display is colored pink. Special setup may have been made.
Return to original setup or initialize the User adjustment value.
• No pictures are displayed. • Check cables for disconnection.
• Check whether the power for all input equipment is ON.
• Check for connection to wrong terminals or for wrong input mode.
• Check whether the input mode display is colored pink. Special setup may have been made.
Return to original setup or initialize the User adjustment value.
Remote control does not function prop-erly. • Check for incorrect battery orientation.
• Check for dead batteries.
• Check for distance from the display.
• Check whether you are pointing the remote control transmitter properly at the display's receiver.
• Check for any obstacle between the remote control and the display.
• The display makes a snapping sound. This sound is produced when the cabinet expands or contracts due to variations in temper-ature. This sound does not indicate that the display has a problem.
• The display makes a buzzing sound. The display has fans to maintain the temperature of internal components at a constant level. This sound is produced by the fan as it rotates. (Applies to models equipped with a fan)
• There are spots on the screen. • Check whether your AV equipment is affected by interference from automobiles, trains, high-voltage transmission lines, neon signs or other potential sources of interference.
• Check whether all picture adjustments have been properly made. (See "Adjusting Pictures" on P. E-21-E-26.)
• Degraded colors/tints • Check whether all picture adjustments have been properly made. (See "Adjusting Pictures" on P. E-21-E-26.)
• Improper screen position/size • Check whether screen position and size have been properly adjusted. (See "Adjusting Screen Position and Size" on P. E-27.)
• No audio • Check cables for disconnection.
• Check whether the proper audio input has been selected. (See "Audio Input" on P. E-32.)
• If "Out of range" appears, the display is receiving a signal whose picture or signal cannot be reproduced by the display. • Signals that are not supported by this display have been input. Check which signals are supported. (See the user's manual (1/2).)
• The screen turns to black and white. • Remove the power plug from the receptacle, and contact your dealer for repairs. (Applies to models equipped with a fan)
• If "Error message Condition 1" appears, the fan is defective. • Remove the power plug from the receptacle, and contact your dealer for repairs. (Applies to models equipped with a fan)
• If "Error message Condition 2" appears, the display's internal components are extremely hot. • Remove the power plug from the receptacle. (You can turn the power back ON again when the components have cooled sufficiently.) If the message appears again when you turn the power back on, remove the power plug from the receptacle, and contact your dealer for a repairs.
• If "Change refresh rate to 60Hz" appears, • The picture may get blurred with vertical frequency of other than 48.3-51.8 or 58.4-61.4 (Hz). Change the setting of your PC, etc.
• If the power indicator lamp flashes red or green. • Remove the power plug from the receptacle, and inform your dealer about how the lamp flashed.
The power indicator lamp flashes differently depending on the type of problem.
