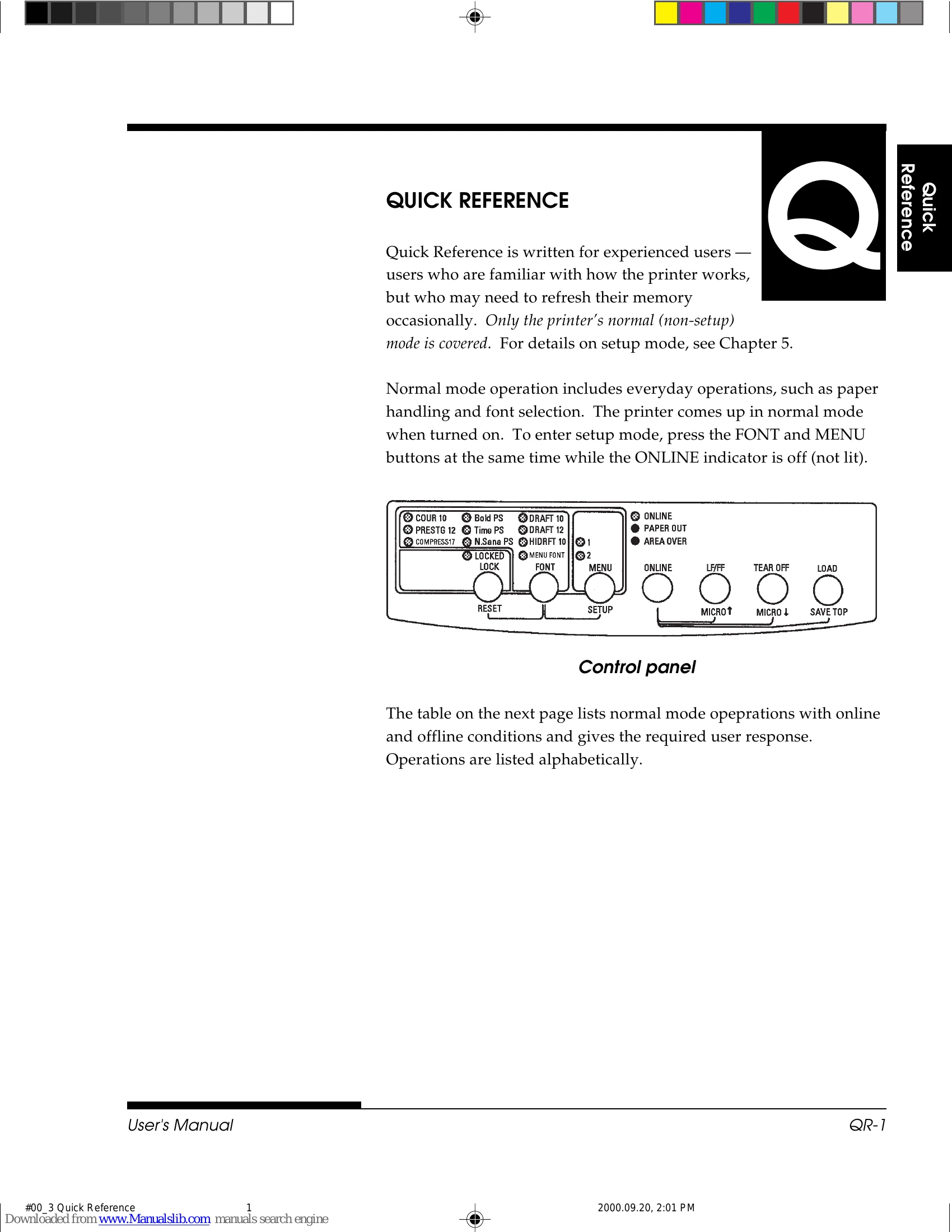

Quick Reference

This section is for experienced users needing a quick refresher on everyday printer operations in normal mode.

Normal Mode Operation:

  • Includes basic tasks like paper handling and font selection.
  • Printer starts in normal mode.
  • To enter setup mode, press FONT and MENU simultaneously when the ONLINE indicator is off.

Control Panel Functions:

The control panel has buttons for various operations:

  • ONLINE: Toggles printer online/offline status.
  • LF/FF: Line Feed / Form Feed.
  • LOAD: Loads paper.
  • TEAR OFF: Tears off continuous forms.
  • MICRO ↑/↓: Micro feed adjustments.
  • SAVE TOP: Saves top-of-form settings.
  • RESET: Resets printer to default settings.
  • SETUP: Enters setup mode.
  • FONT: Selects fonts and adjusts pitch.
  • MENU: Selects menu options (MENU1/MENU2).
  • LOCK: Locks current settings or ignores CPU font commands.

Troubleshooting and error codes

Operation Online Offline Required Response
Clear print buffer √ Press LOCK and FONT.
Eject single sheets √ √ Press LF/FF.
Enter normal mode N/A N/A Turn printer on. (Press I on the power switch.)
Enter setup mode Press FONT and MENU.
Exit to normal mode √ Press ONLINE, then press FONT or MENU.
Form feed (forward) √ √ Press and hold LF/FF until the operation starts.
Ignore font commands from CPU √ Press LOCK.
Line feed (forward) √ Press LF/FF within three seconds.
Load paper √ √ Press LOAD.
Micro feed (backward) √ Press ONLINE and TEAR OFF.
Micro feed (forward) √ Press ONLINE and LF/FF.
Place printer offline √ Press ONLINE.
Place printer online √ Press ONLINE.
Reset power-on defaults √ √ Turn printer off, then on.
Resume printing after paper end √ Press ONLINE.
Save adjusted load positions Press ONLINE and LOAD.
Select a font (and pitch) √ Press FONT.
Select MENU1 or MENU2 √ Press MENU.
Start/stop/resume printing √ √ Start: Send print command. Stop/resume: Press ONLINE.
Self-test printing √ √ Start: Turn printer off. Press LF/FF while turning printer on. Pause/resume: Press FONT or MENU. Exit: Press ONLINE.
Tear off forms (rear-fed continuous forms only) √ √ Press TEAR OFF. Tear off forms, then press any button to retract forms.
Unload paper to park position (rear-fed continuous forms only) √ √ Press LOAD.
