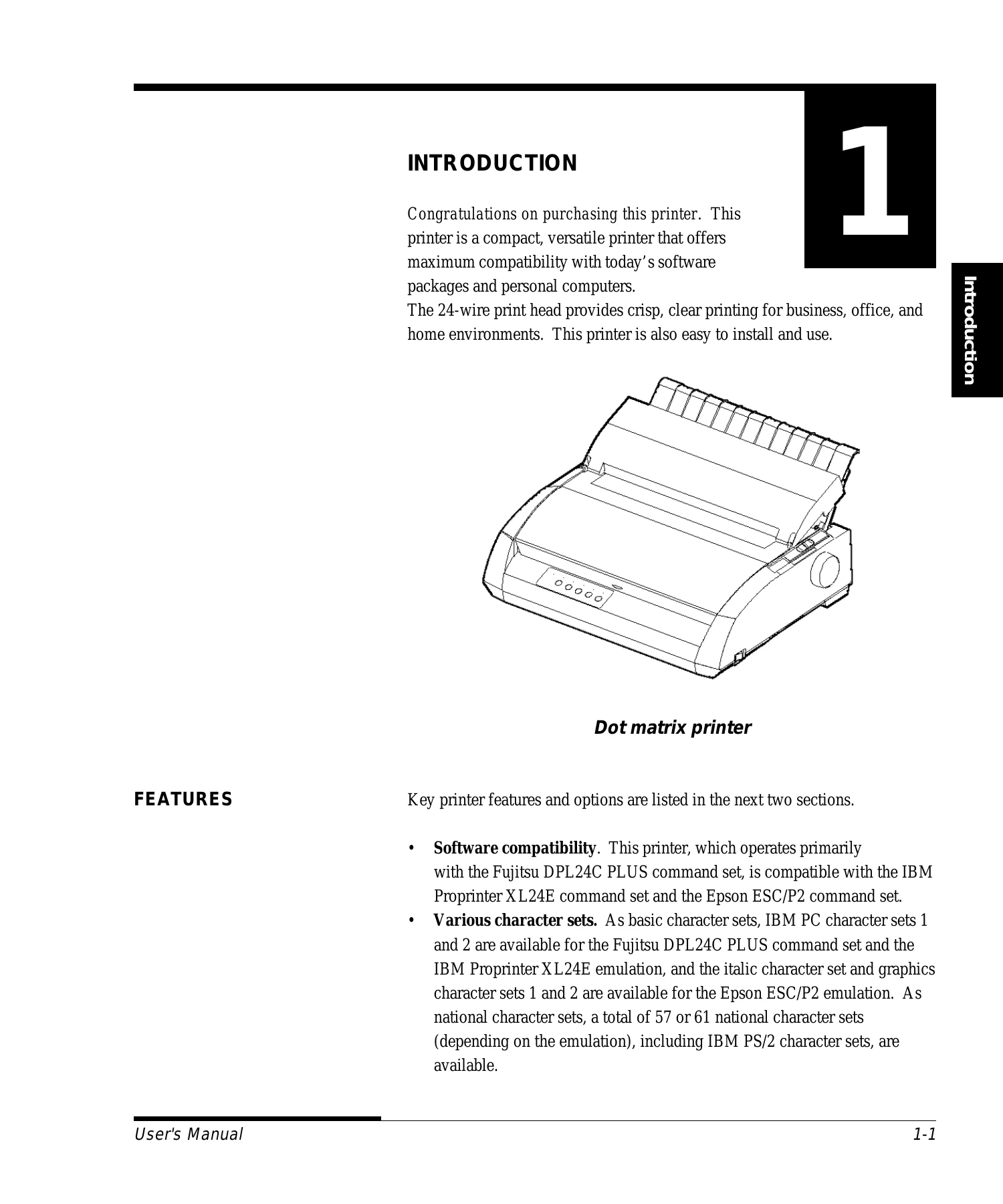

Manual for DL3750+/3850+
Uploaded: Nov. 21, 2025, 8:49 p.m.
Manual Publish Date: 2014-01-01
Quick Reference is for experienced users who need to refresh their memory. It covers everyday operations like paper handling and font selection in normal mode. The printer starts in normal mode. To enter setup mode, press TEAR OFF and ONLINE simultaneously when the ONLINE indicator is off.
Normal mode operations include clearing the print buffer, ejecting single sheets, loading paper, performing self-tests, and managing continuous forms. Specific button combinations are required for each operation, such as pressing MENU and TEAR OFF to clear the buffer, or LOAD to load paper. The printer can be placed online or offline using the ONLINE button. Resetting power-on defaults involves turning the printer off and then on. Resume printing after paper end is done by pressing ONLINE.
Troubleshooting and error codes
| Operation | Online | Offline | Required Response |
| Clear print buffer | √ | Press MENU and TEAR OFF. | |
| Eject single sheets | √ | √ | Press LF/FF. |
| Enter normal mode | N/A | N/A | Turn printer on. (Press | on the power switch.) |
| Enter setup mode | √ | Press TEAR OFF and ONLINE. | |
| Exit to normal mode | √ | Press ONLINE, then press TEAR OFF or MENU. | |
| Form feed (forward) | √ | √ | Press and hold LF/FF until the operation starts. |
| Line feed (forward) | √ | √ | Press LF/FF within three seconds. |
| Load paper | √ | √ | Press LOAD. |
| Micro feed (backward) | √ | Press ONLINE and LOAD. | |
| Micro feed (forward) | √ | Press ONLINE and LF/FF. | |
| Place printer offline | √ | Press ONLINE. | |
| Place printer online | √ | Press ONLINE. | |
| Reset power-on defaults | √ | √ | Turn printer off, then on. |
| Resume printing after paper end | √ | Press ONLINE. | |
| Save adjusted load positions | √ | Press ONLINE and MENU. | |
| Select MENU1 or MENU2 | √ | Press MENU. | |
| Start/stop/resume printing | √ | √ | Start: Send print command. Stop/resume: Press ONLINE. |
| Self-test printing | √ | √ | Start: Turn printer off. Press LF/FF while turning printer on. Pause/resume: Press TEAR OFF. Exit: Press ONLINE. |
| Tear off forms (Continuous forms only) | √ | √ | Press TEAR OFF. Tear off forms, then press any button to retract forms. |
| Unload paper to park position (Continuous forms only) | √ | Press LOAD. |
