Manual for ETERNUS DX100 S3/DX200 S3

Manual for ETERNUS DX100 S3/DX200 S3

Brand: Fujitsu

Category: Storage Systems

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:48 p.m.

Manual Publish Date: 2014-06-01

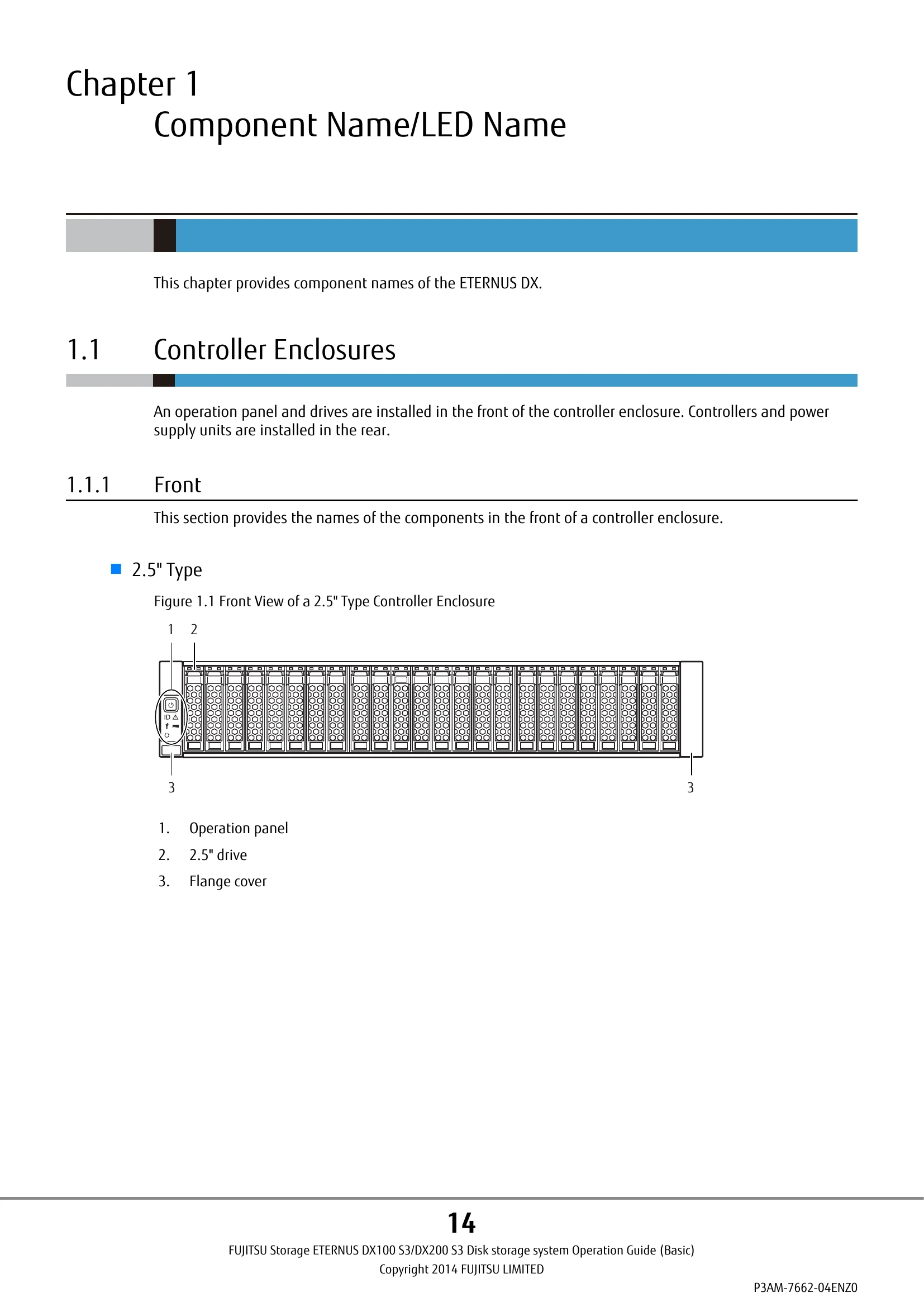

  • Chapter 1 Component Name/LED Name: Identifies components and LEDs of the ETERNUS DX.
  • Chapter 2 Basic Operation: Details how to turn the ETERNUS DX on/off and use the operation panel buttons.
  • Chapter 3 Storage System Monitoring: Explains how to monitor the status of the ETERNUS DX.
  • Chapter 4 Process Time (Estimated): Provides estimated times for volume formatting and RAID rebuild/copyback.
  • Chapter 5 Expansion Functions: Guides on installing additional drives, enclosures, and host ports.
  • Chapter 6 Maintenance: Covers periodic backups and maintenance services.
  • Chapter 7 Troubleshooting: Offers solutions for common errors and issues encountered with the ETERNUS DX.

Troubleshooting and error codes

IssueTroubleshooting Steps
ETERNUS DX is Turned Off
  • Check if power cord is disconnected.
  • Check PSU switch is OFF (O).
  • Check if server is turned off.
  • Check if main line switch of power distribution unit is OFF (O).
  • Check for power failure.
  • Check for recent main power failure.
ETERNUS DX Refuses to Turn On
  • Check if power cord is disconnected.
  • Check PSU switch is OFF (O).
  • Check if main line switch of power distribution unit is OFF (O).
  • Check for power failure.
  • Check if mini SAS HD cable between enclosures is disconnected.
READY LED is not OnIf READY LED is not on after more than ten minutes, contact maintenance engineer.
FAULT LED is On
  • Check general status and system messages in ETERNUS Web GUI.
  • Check if mini SAS HD cable between enclosures is disconnected or incorrectly connected.
FAULT LED Blinks
  • Check general status and system messages in ETERNUS Web GUI for components requiring preventive maintenance.
DISK FAULT LED is OnCheck drive status. The LED may be temporarily on during Protection (Shield) function.
ETERNUS DX cannot be Connected via a Network Service
  • Check if ETERNUS DX is turned off.
  • Check LAN cable connection and MASTER LED status.
  • Switch Master CM if necessary.
  • Check network devices and their settings.
  • Check ETERNUS DX LAN port settings (firewall).
  • Restore default network and firewall settings if necessary.
I/O Access is Slow
  • Check ambient temperature.
  • Check ETERNUS DX parts in Web GUI.
  • Check path status using ETERNUS Multipath Driver or other tools.
  • Check ETERNUS DX loading and configuration.
  • Check FC port transfer speed.
  • Check server command queues.
  • Check server OS message log.
  • Check RAID group status.
  • Check volume cache parameter settings.
Server Does not Recognize the Volumes
  • Check ETERNUS DX and connected device status.
  • Check for errors using a path management tool.
Server HBA Fails and Needs to be Replaced
  • FC/FCoE Card Replacement: Check WWN and host affinity, replace card, and reconfigure settings.
  • LAN Card Replacement: Turn off server, replace LAN card.
  • SAS Card Replacement: Check SAS address and host affinity, replace card, and reconfigure settings.
