Warranty Information

Information about warranty is not explicitly stated in this manual excerpt.

Getting Started
  • Install a Memory Card: Insert a microSD or microSDHC card into the slot until it clicks.

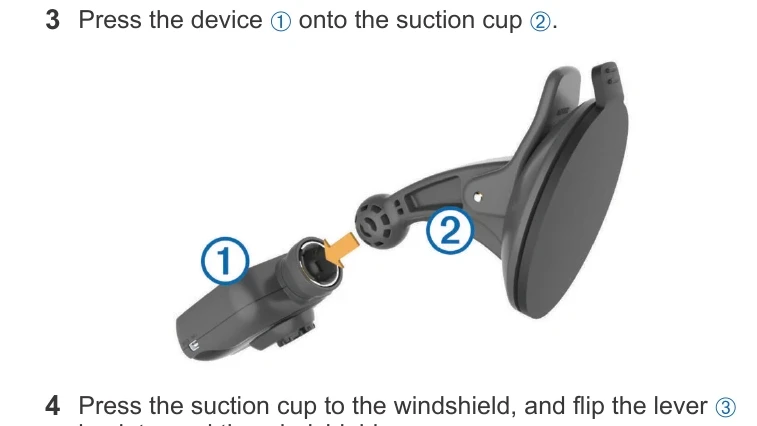

  • Connect to Vehicle Power: Plug the power cable into the device and a vehicle power outlet. Mount the device on the windshield using the suction cup.
  • Turn On/Off: The device turns on automatically when connected to ignition-switched power or when the vehicle is turned on. Manually turn on/off by selecting the power icon.
  • Video Recording: The device records continuously when powered on, overwriting older files. The LED is solid red while recording.
  • Protect a Video Recording: Select the protect icon to save the current, previous, and next video files. The device automatically protects files during detected collisions.
  • Take a Picture: Select the snapshot icon while recording to take a still photo.
  • View Videos and Photos: Select the view icon, then choose Video or Snapshot to view files.
  • Connect to Computer: Use the USB cable to connect the device to your computer to view, transfer, or delete files. Videos are in the GARMIN\Video folder, photos in GARMIN\SnapShot.
  • Delete Videos or Photos: Navigate to File Delete, select Video or Snapshot, choose files, and select Delete.
Device Settings
  • Recording Mode: Adjust video resolution.
  • Event Detection: Calibrate the G-sensor for collision detection and set audible alerts. Adjust sensitivity as needed.
  • Protected Video Overwrite: Allow protected videos to be overwritten (use with caution).
  • Audio Record: Enable/disable microphone for audio recording.
  • Exposure Value: Adjust exposure for lighting conditions.
  • Screen Brightness: Adjust screen brightness.
  • Volume: Adjust speaker volume.
  • Screen Auto Off: Turn off backlight after inactivity.
  • Button Sound: Enable/disable button feedback.
  • Time Zone: Set the time zone for accurate timestamps.
  • Units: Set distance units.
  • Date/Time Format: Set date and time display formats.
  • Text Language: Select on-screen text language.
  • GPS Status: View satellite information.
  • File Flicker Suppression: Set video refresh rate (50 Hz or 60 Hz).
  • File Delete: Delete videos or photos.
  • Format Memory Card: Format the memory card.
  • Restore Default Settings: Reset to factory defaults.
  • About: View device information.
Changing the Fuse: Unscrew the tip of the vehicle power cable, replace the 2 A fuse, and reassemble.

Troubleshooting and error codes

Device does not charge in vehicle Replace the 2 A fuse in the vehicle power cable tip.
Device stops functioning Hold the power key for 10 seconds to reset.
Incorrect event detection Calibrate the event detection sensor or adjust its sensitivity.
