Manual for GBF 630 Series

Manual for GBF 630 Series

Brand: GE

Category: Dishwasher

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:59 p.m.

Warranty Information

GE Appliances offers a one-year limited warranty covering parts and labor for defects in materials or workmanship.

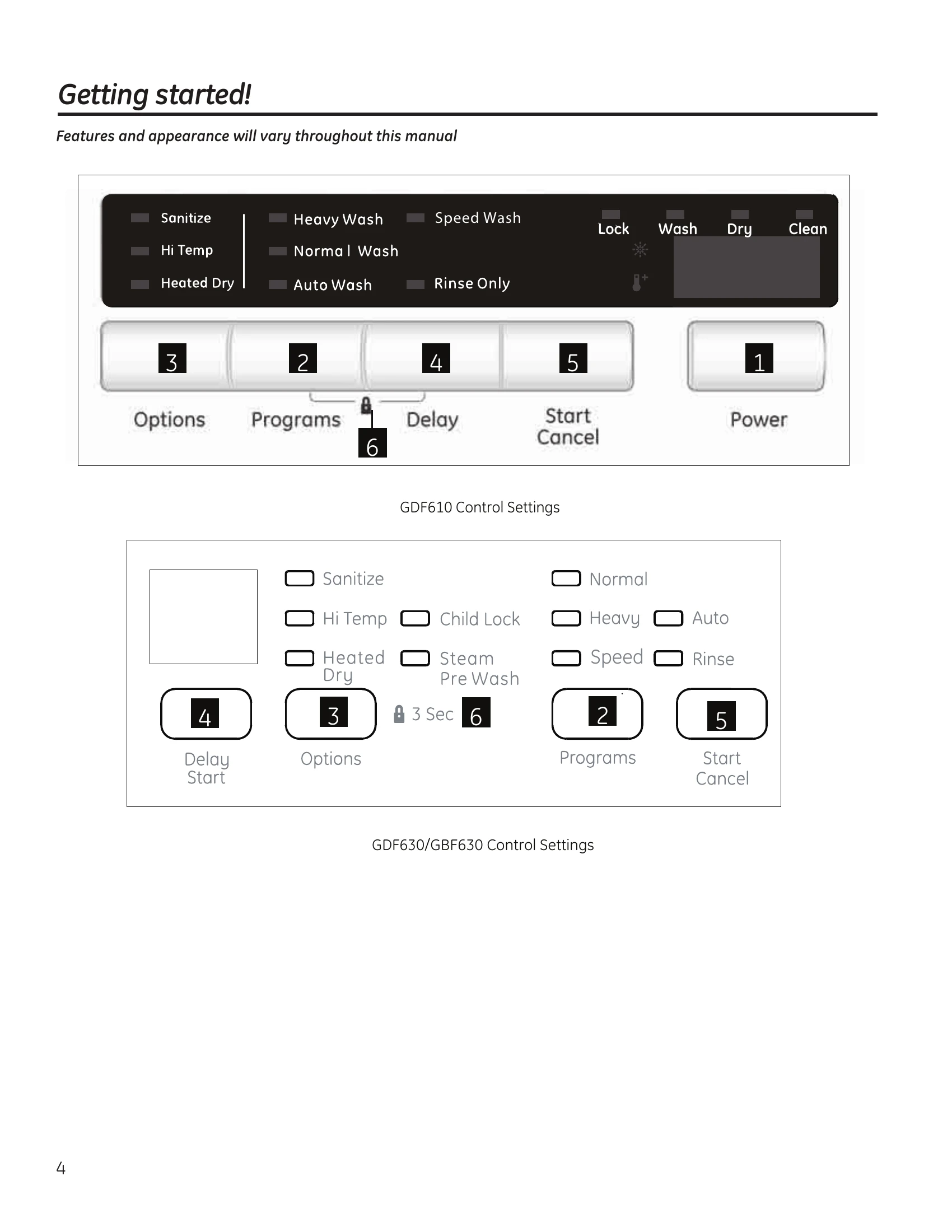

Getting Started!

Power: Press the POWER button to turn the unit on. The LED will display when the dishwasher is on.

Programs: Press the PROGRAMS button to select a wash cycle. A light indicates the selected cycle.

Options: After selecting a cycle, press the OPTIONS button to choose features like Heated Dry, Sanitize, Hi Temp, or Steam Prewash (model dependent).

Delay: Press DELAY to set a start time up to 24 hours in advance.

Start/Cancel: Press START/CANCEL to begin the cycle or to stop/reset it.

Child Lock: Press PROGRAMS and DELAY (GDF610) or OPTIONS (GDF630) for 3 seconds to lock/unlock controls.

Troubleshooting and error codes

Problem Possible Causes What To Do
Noise Some of the sounds you'll hear are normal
  • Detergent cup opening.
  • The motor starting during the drying period.
  • Water draining out of the tub immediately after you start the dishwasher.
Utensils are not secure in the rack or something small has dropped into the rack
  • Make sure everything is secured in dishwasher.
Motor hums
  • Dishwasher has not been used on a regular basis. If you do not use your dishwasher often, set it to fill and pump out once every week. This will help keep the seal moist.
  • Dishwasher control was not advanced properly to the start of the desired cycle. Advance the control to the start of the desired cycle.
Detergent left in dispenser cups Dishes are blocking the detergent cups
  • Reposition the dishes.
Water standing in the bottom of the tub Drain is clogged
  • If you have an air gap, clean it.
  • Check to see if your kitchen sink is draining well. If not, you may need a plumber.
  • If the dishwasher drains into a disposer, run disposer clear.
This is normal
  • A small amount of clean water around the outlet of the tub bottom at the back of the tub keeps the water seal lubricated.
Suds in the tub Correct detergent wasn't used
  • Use only automatic dishwasher detergents to avoid sudsing.
  • To remove suds from the tub, open the dishwasher and let suds evaporate. Add 3.8 liters of cold water to the tub. Close and latch the dishwasher. Repeat if necessary.
Stained dishwasher parts Rinse agent was spilled
  • Always wipe up rinse agent spills immediately.
Detergent with colorant was used
  • Some detergents contain colorant (pigment or dyes) that will discolor the tub interior with extended use. Check the detergent cup for signs of any discoloration. If cup is discolored, change to detergent without any colorant.
Some tomato-based foods can stain
  • Use of the RINSE ONLY cycle after adding the dish to the load can decrease the level of staining.
Dishwasher won't run Fuse is blown, or the circuit breaker tripped
  • Replace fuse or reset circuit breaker. Remove any other appliances from the circuit.
Power is turned off
  • In some installations, the power to the dishwasher is proved through a wall switch, often located next to the disposer switch. Make sure it is on.
Reboot your control
  • Turn off power to the dishwasher (at circuit breaker or wall switch) for 30 seconds, then turn back on.
Steam This is normal
  • Steam comes through the vent during washing, drying and when water is being pumped out.
Beeping at the end of the cycle This is normal
  • The dishwasher will beep 3 times (unless interupted) and the CLEAN light will display at the end of the wash cycle.
