Brand: GE
Category: Dishwasher
Document Type: Parts/Service
Language: EN

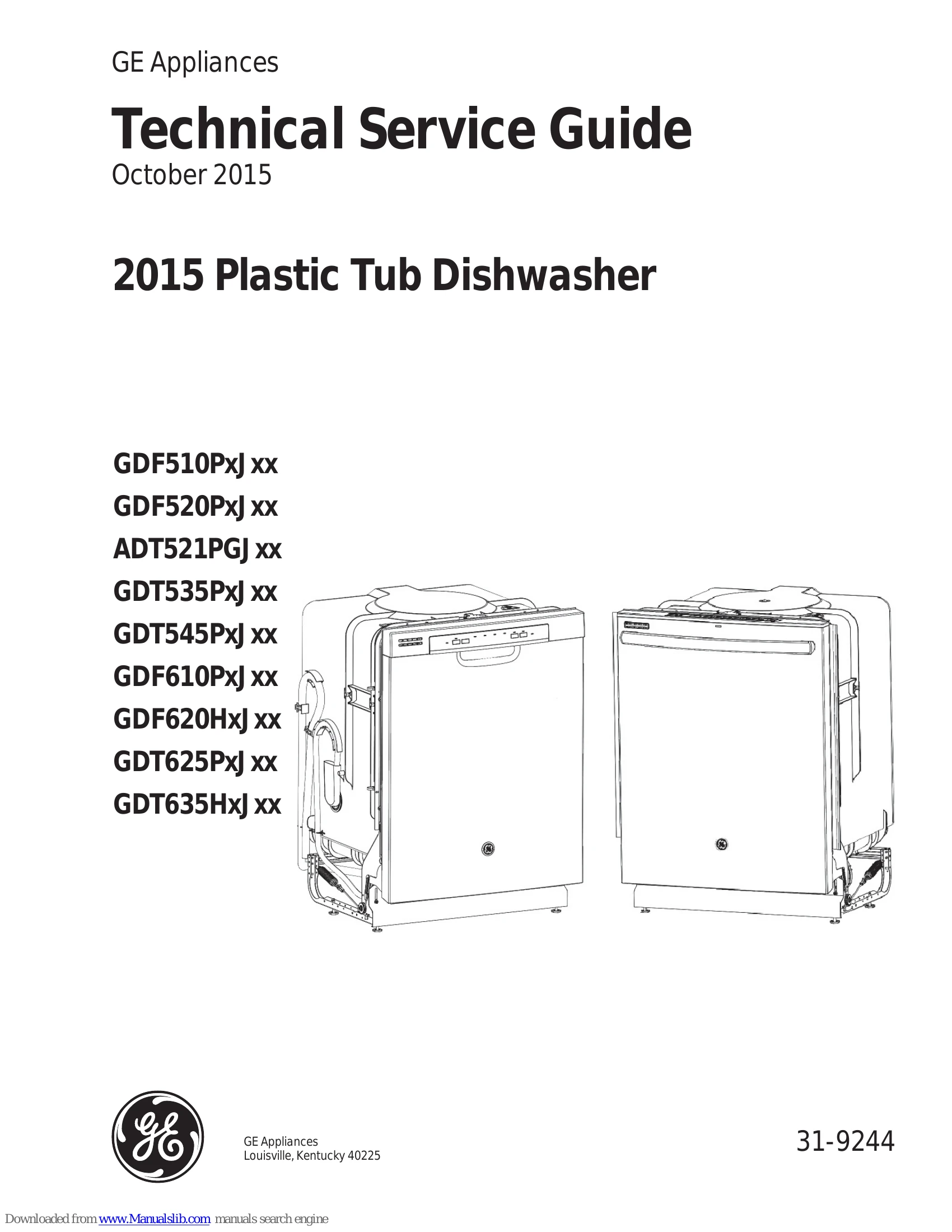

Parts/Service for GDF510Pxj xx
Uploaded: Nov. 21, 2025, 9:18 p.m.
Manual Publish Date: 2015-10-01
Warranty Information
This warranty covers defective parts and labor for one year from the original purchase date.
This service guide provides details on cycle segments, timing, temperature expectations, and heater cycling during the dry portion of a dishwasher cycle. It covers Auto Hot Start, cycle times, and a detailed Cycle Algorithm Comparison chart. It also explains minimum and maximum cycle times based on various cycle options and selections, along with target/max temperature limits and heated dry element algorithms.
Troubleshooting and error codes
| Symptom | Diagnosis | Cure |
|---|---|---|
| If the dishwasher is "dead", no LED operation, no button operation or beeping occurs. | Attempt placing the dishwasher in Consumer Error Mode. | The CSM (Current Sense Module) is tripped and must be fully diagnosed. Refer to On the Main Control Board CSM section of this guide. |
| If the start button either does not respond or it makes a triple beep sound every time it's pressed AND all other buttons respond as normal. | The dishwasher may be in demo mode. | To exit demo mode, hold “START” and "HEATED DRY" at the same time for 5 seconds. |
