Brand: GE
Category: Freezer
Document Type: Manual
Language: EN

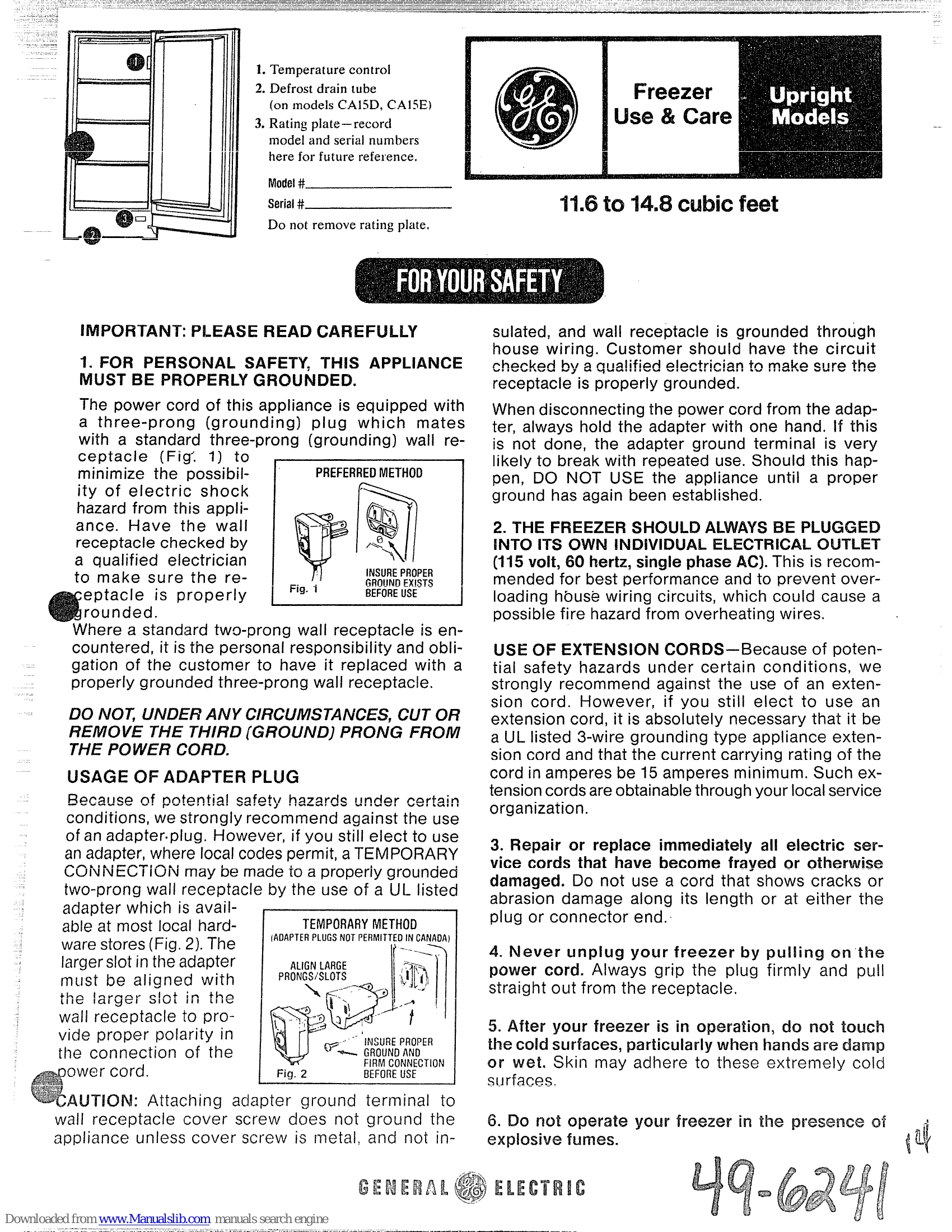

Manual for CA15D, CA15E, CA10, CA12, CA15, CA21, CAF-16
Uploaded: Nov. 21, 2025, 6:14 p.m.
Warranty Information
Full one-year warranty on parts and labor, with an additional four-year warranty on the sealed refrigerating system. A three-year food spoilage limited warranty is also included.
Installation: Ensure freezer is placed in a location with ambient temperatures between 32°F and 110°F, allowing 4 inches for top air circulation and 1 inch at the rear. Adjust legs so the freezer is level and the door closes when opened halfway.
Operation: Clean interior with baking soda solution. Set temperature control to No. 1 for normal freezing, or higher for colder temperatures. Allow freezer to run for at least two hours before adding food. Never freeze more than three pounds of food per cubic foot at one time. Quick-freeze on the top shelf by setting the control to No. 9 several hours prior.
Energy Saving Tips: Avoid warm, unventilated areas. Organize food for quick access. Ensure the door is fully closed. Minimize door openings, especially in humid weather. Return the coldest setting to normal after quick freezing.
Cleaning: Unplug freezer or turn control to OFF. Clean interior with a baking soda and water solution. Rinse and dry. Clean exterior with a mild detergent and dry. Apply wax or polish to the exterior finish for protection.
Defrosting: Necessary when frost reaches 1/4-inch. For complete defrosting, turn control to OFF, remove food to coolers, use hot water to loosen frost, clean interior, and return settings and food. Models CA15D and CA15E have a drain hose behind the grille.
Troubleshooting and error codes
| Trouble | Possible Cause | Remedy |
|---|---|---|
| Freezer does not run | Blown fuse or tripped circuit breaker | Check and reset |
| Not plugged in | Plug in securely | |
| Temperature control in OFF position | Turn to a numbered setting | |
| Package holding door open | Remove obstruction | |
| Freezer temperature too cold | Temperature control set on too high a number | Adjust to a lower number |
| Starts too frequently | Door opened too frequently or too long | Minimize door openings |
| Temperature control set on too high a number | Adjust to a lower number | |
| Package holding door open | Remove obstruction | |
| Freezer runs too long | Door opened too frequently or too long | Minimize door openings |
| Package holding door open | Remove obstruction | |
| Temperature control set on too high a number | Adjust to a lower number | |
| Noisy operation | Weakness in room floor | Level the floor or adjust legs |
| Legs need adjusting | Adjust legs | |
| Cabinet vibrates | Weakness in room floor | Level the floor or adjust legs |
| Legs need adjusting | Adjust legs | |
| Food defrosting | Blown fuse or tripped circuit breaker | Check and reset |
| Not plugged in | Plug in securely | |
| Temperature control in OFF position | Turn to a numbered setting | |
| Package holding door open | Remove obstruction | |
| Moisture collecting on outside of cabinet | Extended hot, humid weather | This is normal |
| Interior light does not light (Model CA15D) | Blown fuse or tripped circuit breaker | Check and reset |
| Not plugged in | Plug in securely | |
| Burned out light bulb | Replace bulb | |
| Slow starting after being turned off for a period of time | Built-in overload protection | Allow time for cooldown |
| Foods drying out | Packages not properly wrapped or sealed | Ensure proper packaging |
| Freezer temperature too warm | Door opened too frequently or too long | Minimize door openings |
| Package holding door open | Remove obstruction | |
| Door won't fully close by itself | Legs need adjusting | Adjust legs |
| Package holding door open | Remove obstruction | |
| Excessive frost build-up | Door opened too frequently or too long | Minimize door openings |
| Package holding door open | Remove obstruction | |
| Extended hot, humid weather | This is normal |
