Warranty Information

One-year limited warranty covering manufacturing defects.

Product Features

  • "WiFi" friendly-won't interfere with home wireless networks.
  • Night Vision feature-View objects in low or no light up to 10 ft.
  • Small, unique design is simple to set up and easy to use.
  • Unique "axis-swivel" camera mount allows for desktop or wall mount installation.
  • Adjustable antenna.
  • Wirelessly transmits audio and video up to 200 ft. (unobstructed line of sight.)
  • For Indoor/Outdoor use.

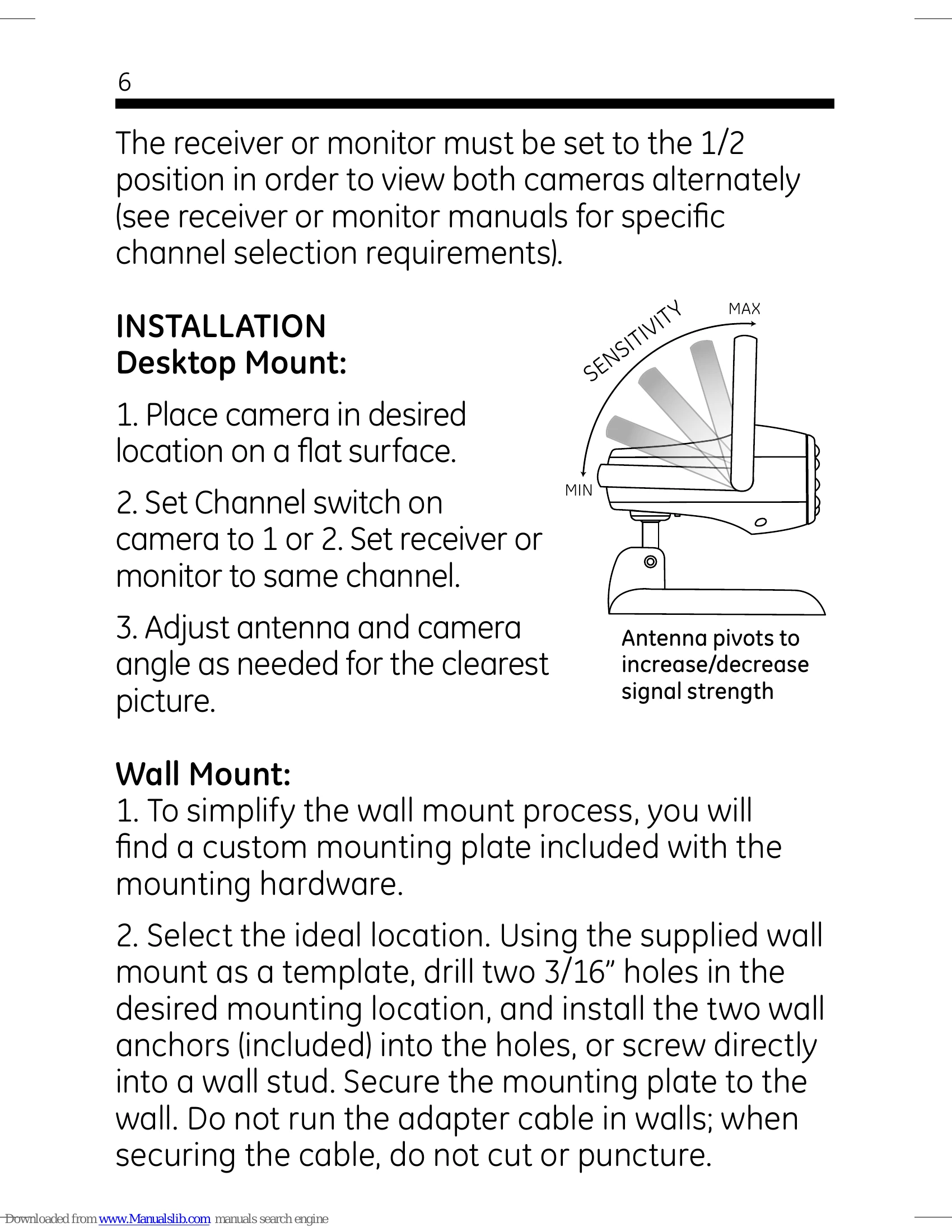

Installation

Desktop Mount:

  1. Place camera in desired location on a flat surface.
  2. Set Channel switch on camera to 1 or 2. Set receiver or monitor to same channel.
  3. Adjust antenna and camera angle as needed for the clearest picture.

Wall Mount:

  1. To simplify the wall mount process, you will find a custom mounting plate included with the mounting hardware.
  2. Select the ideal location. Using the supplied wall mount as a template, drill two 3/16" holes in the desired mounting location, and install the two wall anchors (included) into the holes, or screw directly into a wall stud. Secure the mounting plate to the wall. Do not run the adapter cable in walls; when securing the cable, do not cut or puncture.
  3. Set Channel switch on camera to 1 or 2. Slide the camera onto the locking pins of the mounting plate.
  4. Adjust antenna and camera angle as needed for the clearest picture.

Troubleshooting and error codes

SYMPTOM SOLUTIONS
No camera picture 1. Check all connectors. Make sure camera(s) and receiver are powered ON.
2. Ensure camera(s) and receiver are set to correct channel(s).
3. Make sure camera is within range of receiver.
4. Adjust the antenna for the camera, monitor or both to obtain best image.
Blank monitor 1. Make sure receiver or monitor is switched ON, and the correct video input has been selected.
2. If using AC adapter, make sure it is plugged in.
3. If using a battery, make sure it is installed correctly, and ensure it is fully charged.
Interference on camera picture 1. Make sure each camera (transmitter) is within range, and that no large obstructions are blocking the signal.
2. Try repositioning the camera, monitor (receiver) or both to improve the reception quality.
3. If a camera is positioned close to the monitor, point antenna away from the receiver.
4. Reposition other nearby equipment transmitting on the 900MHz frequency.
5. Adjust the antenna for the camera, monitor or both to obtain best image.
Audio problems 1. Ensure the volume is turned up sufficiently on the Monitor (or TV).
2. Make sure the sound is within the microphone range.
3. If the unit emits a loud wailing sound (feeds back), try moving the camera away from the receiver or angle the receiver differently.
