Manual for AF-400 *GP
Uploaded: Nov. 21, 2025, 6:09 p.m.

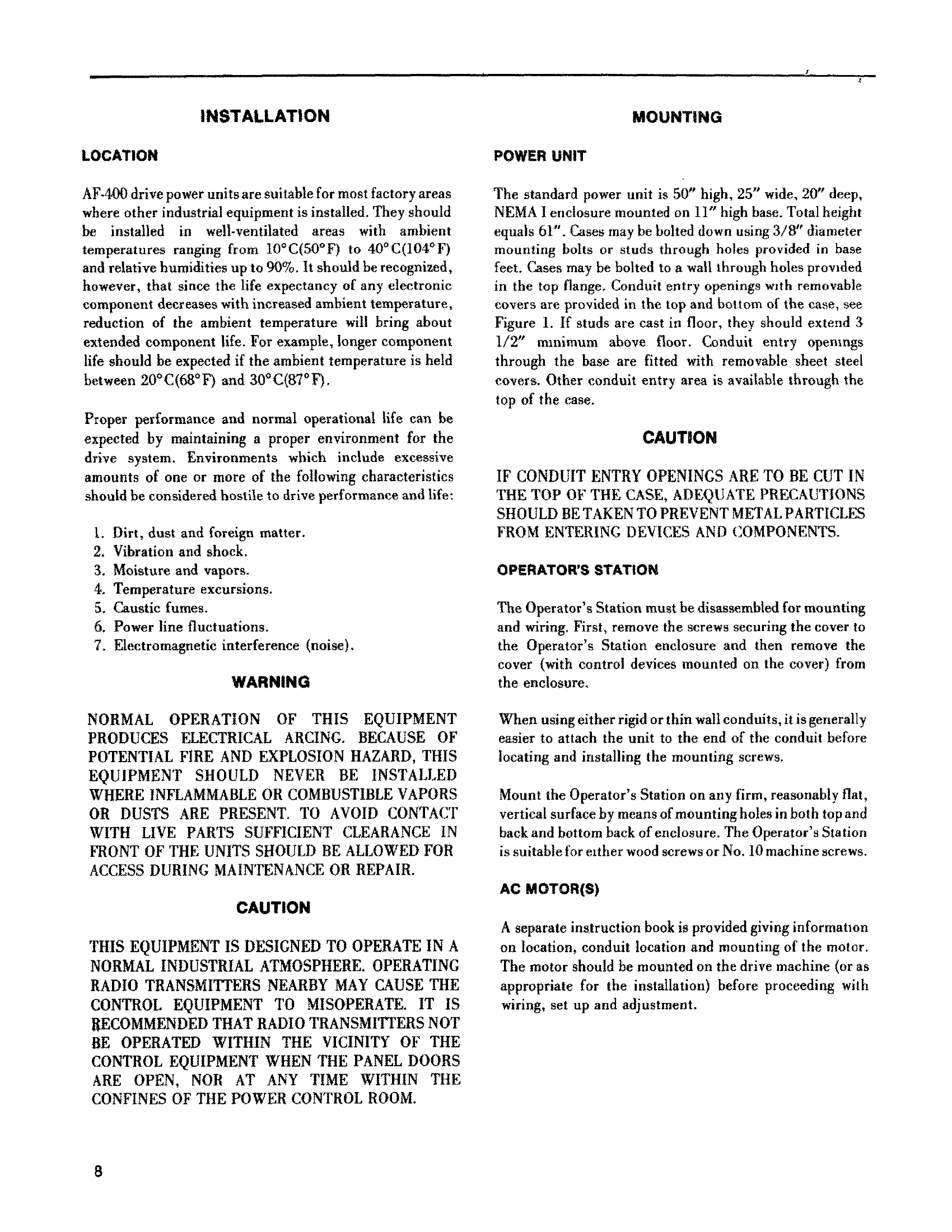

The AF-400 drive is an adjustable frequency AC motor drive designed for industrial applications. It allows for single or multi-motor operation from a single power unit. Motor speed is adjusted by changing both motor frequency and voltage. The drive consists of several modules including a Converter Module, DC Link Filter, Inverter Modules, Commutation Power Supply, System Control, and Driver Module. Installation involves proper location, mounting, and electrical wiring. Start-up and check-out procedures include safety precautions, continuity tests, and setting up driver selections and jumpers. Adjustments and troubleshooting guides are also provided within the manual.
Troubleshooting and error codes
| Fault | Indication | Troubleshooting Steps |
|---|---|---|
| Phase Sequence/Loss of Phase | PS/LOP light | Check AC supply voltage at L1, L2, L3. If voltage is correct, phase sequence is wrong. Disconnect AC power, interchange any two cables, repeat steps 5 and 6. |
| Fan Failure | Tthroughswitch opens; Overtemperature condition | Check for 115V AC at TB1(AC3) and TB1(AC2). |
| Inverter Frequency Light blinking rapidly | Indicates fault | Refer to the Troubleshooting Section. |
| Inverter Fault | IOC light | Immediate drive shutdown. Caused by short circuit in phase module. |
| Control Undervoltage | CUV light | Immediate drive shutdown. Caused by low main +20 volt control voltage. |
| Commutation Overcurrent | COC light | Immediate drive shutdown. Caused by excessive commutation current or circuit misoperation. |
| DC Link Overvoltage | LOV light | Immediate drive shutdown. |
| Inverter Overfrequency | IOF light | Drive shutdown to prevent motor overspeed. Trip level selectable. |
