Installation Guide for BreakMaster
Uploaded: Nov. 21, 2025, 8:39 p.m.

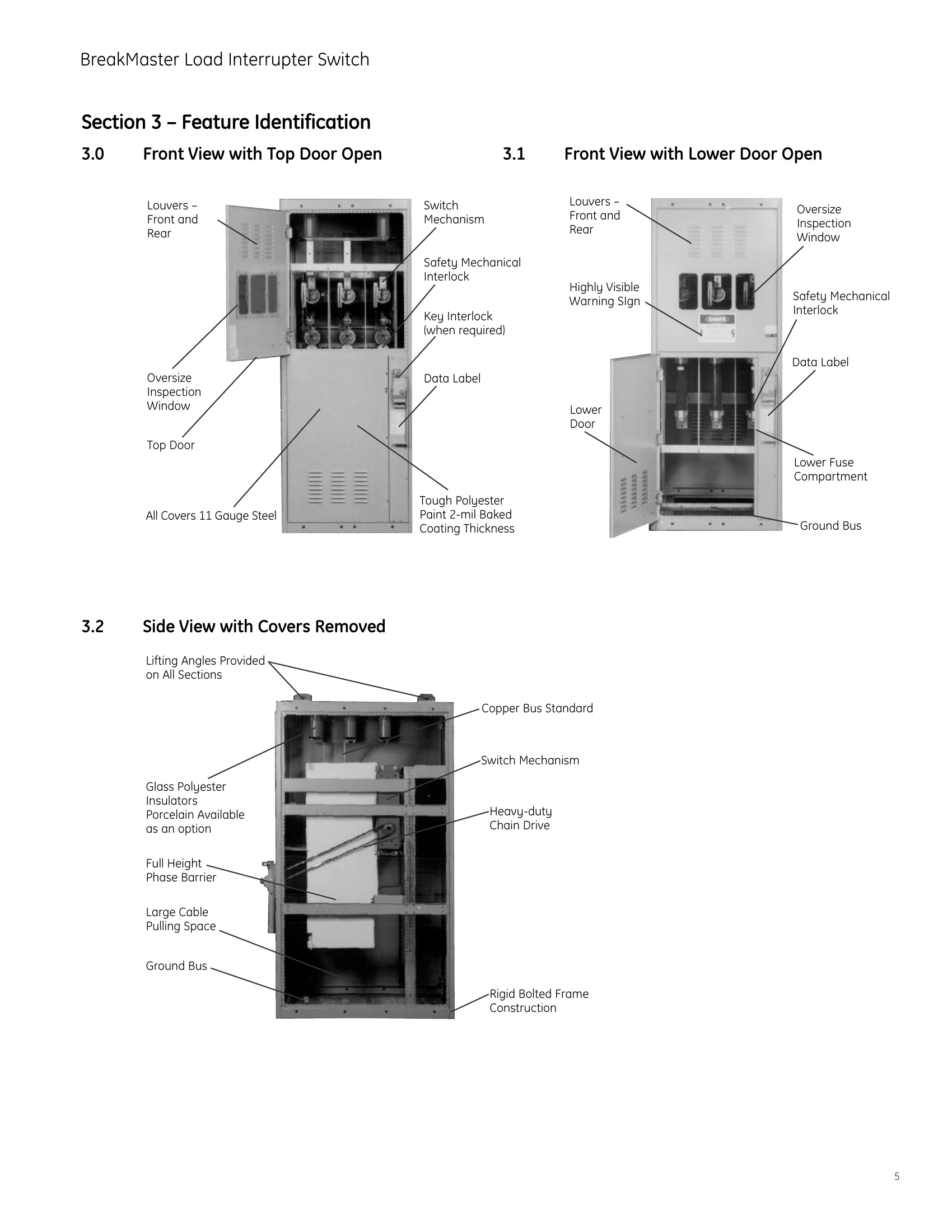

The GE BreakMaster Load Interrupter Switch is an air-insulated, three-pole, gang-operated switch designed for medium voltage applications (2.4kV to 15kV). It can be used with power fuses for safe and economical switching and circuit protection. The switch is operated externally with a quick-make, quick-break mechanism. Key features include door interlocks, switch interlocks, a viewing window for contact verification, and provisions for padlocking. The manual covers installation, operation, maintenance, and troubleshooting, emphasizing safe practices and adherence to standards.
Troubleshooting and error codes
| Trouble | Cause | Remedy |
|---|---|---|
| Overheating | Poor Contact (Contact out of adjustment) | Adjust Contacts (See Section 4.11.1) |
| Connections to Switch not of adequate current carrying capacity. | Increase the capacity of the connections by adding conductors or by replacing with heavier conductors. | |
| Contacts Burned or Pitted | Contacts should be dressed and fitted properly. (See Section 4.11.1) | |
| Bolts and Nuts of Connections not tight | Tighten all bolts and nuts. (Do not exceed torque as per Section 4.2 by more or less than 10 percent. Over-tightening bolts may cause bolts to exceed their elastic limit, leading to more loosening of the connections.) | |
| Located in too hot an ambient (40°C Max.). (Such as too close to a boiler, a furnace or the like) | Relocate in a cooler place or arrange some means of cooling. |
WARNING
Do not exceed 40°C as maximum ambient temperature.
Do not exceed 40°C as maximum ambient temperature.
