QuickPanel+ Operator Interface
The QuickPanel+ Operator Interface is an all-in-one micro-computer designed for maximum flexibility. It features a high-resolution touchscreen and multiple communication options for connecting to industrial equipment. The device utilizes various memory types, including DRAM for the operating system and applications, NOVRAM for persistent storage, and battery-backed SRAM for retentive memory during power failures.
Key Features:
- Processor: Freescale i.MX535 (1 GHz ARM Cortex A8)
- Memory: 512 MB DDR3 SDRAM, 256 MB NAND FLASH, 512 KB SRAM
- Display: 5.7" TFT LCD, QVGA resolution, 65,536 colors, 375 cd/m² brightness
- Touchscreen: Analog Resistive, Single-touch
- Communications: Ethernet (10/100Base-TX), RS-232C Serial Port, USB 2.0 Host (x2), USB 2.0 Mini Type-B
- Storage: 1x SD/SDHC card slot
- Audio: Mic In (Mono), Line Out (Stereo)
- Power: 24 V dc ±20%, 15 W maximum consumption

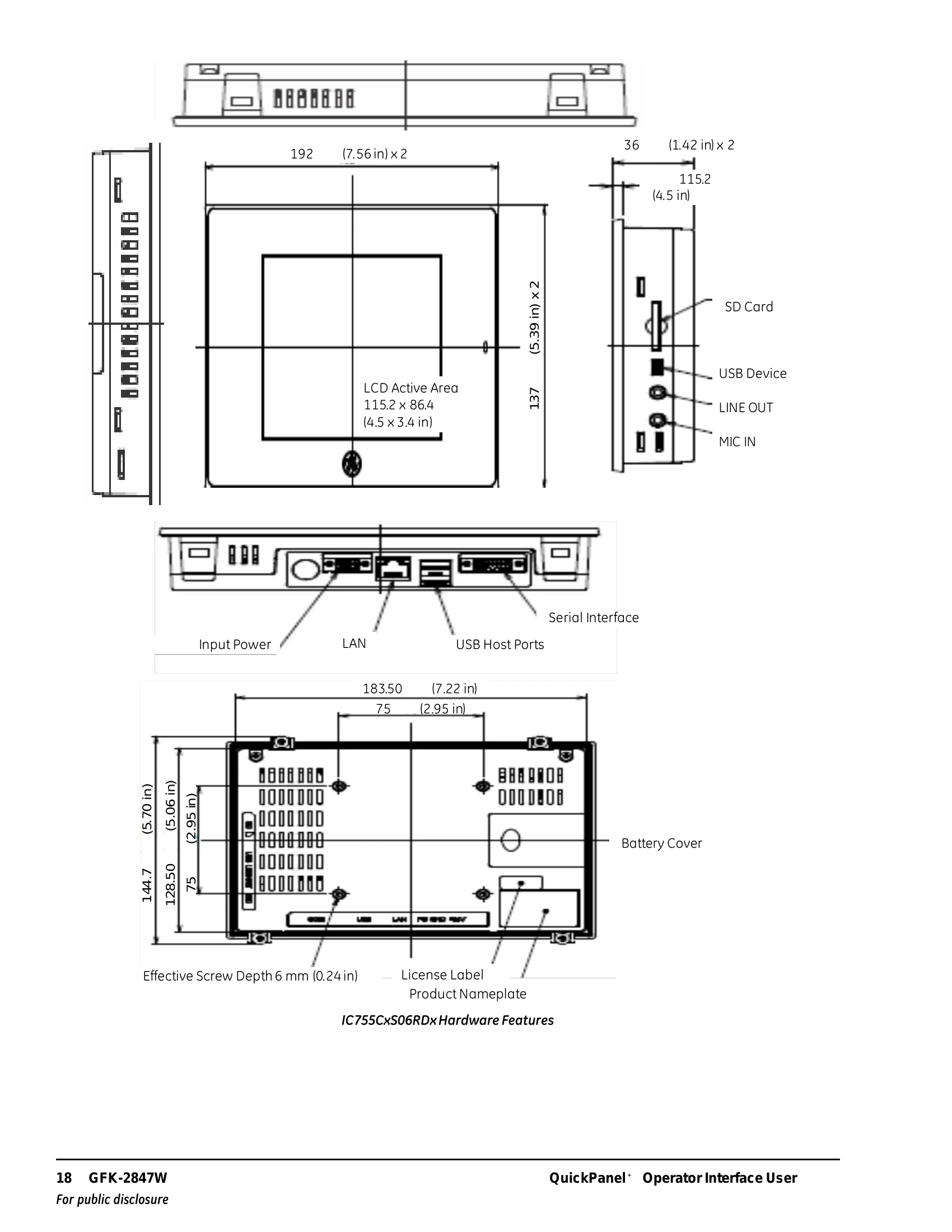

- Mounting: Panel Mount Cutout Dimensions: 183.50 × 128.50 mm, VESA Mount: 75 x 75 mm
This manual covers the hardware specifications, software utilities, installation procedures, operation, and safety guidelines for the QuickPanel+ Operator Interface.
