Manual for KELMAN MINITRANS
Uploaded: Nov. 21, 2025, 8:25 p.m.
Manual Publish Date: 2015-10-13

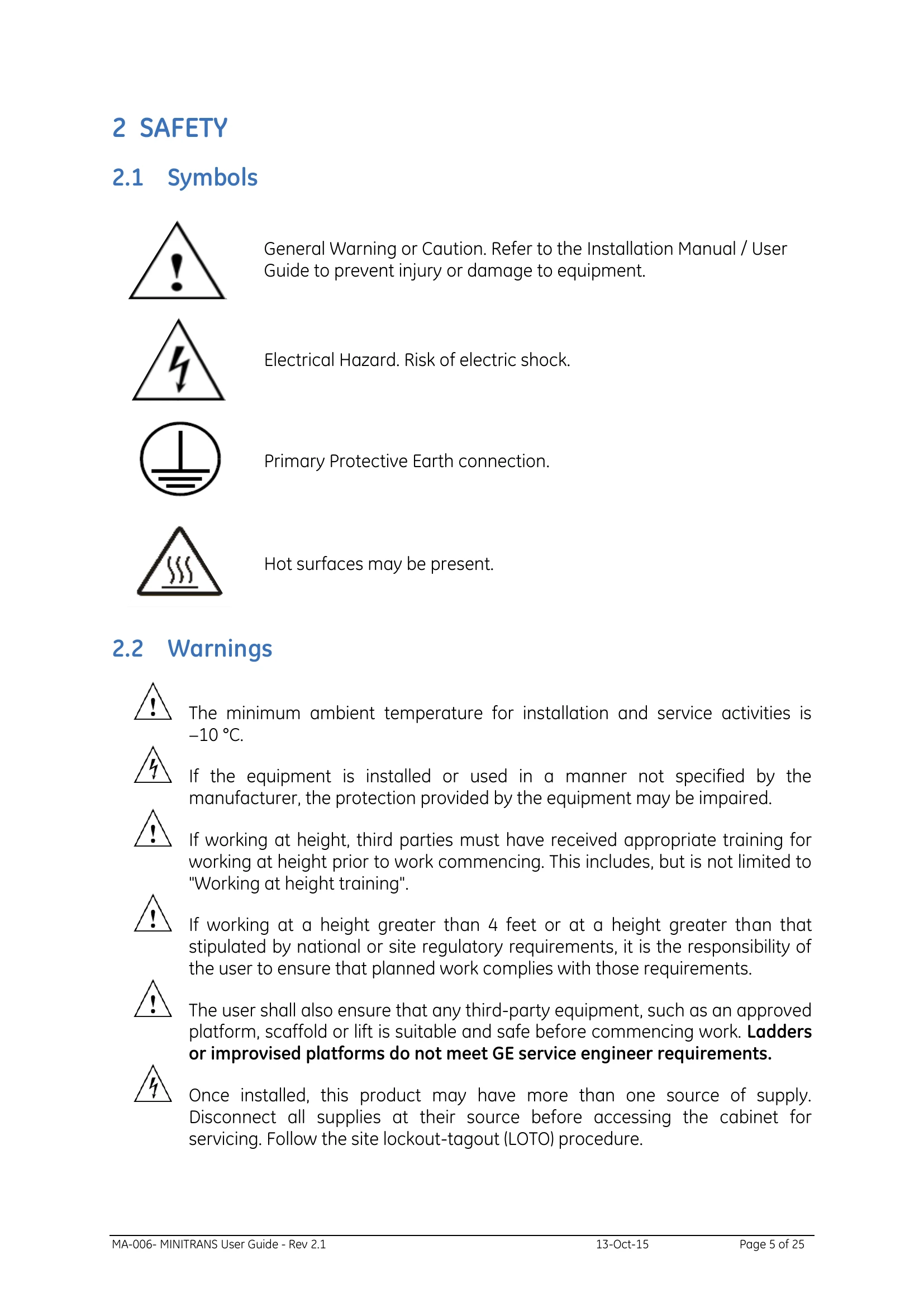

Warranty Information
GE reserves the right to make changes to specifications of products described at any time without notice.
The KELMAN MINITRANS is an on-line Dissolved Gas Analysis (DGA) system for transformer diagnostics. It measures key fault gases (hydrogen, carbon monoxide, acetylene) and moisture in transformer oil, along with transformer load current. This data provides insights into transformer condition, identifying developing faults, paper degradation, and electrical arcing. The system utilizes dynamic headspace sampling and Photo-acoustic Spectrographic technology. It features an IP55 rated enclosure, internal gas sensing, transformer load tracking, and user-configurable relays. Communication options include Ethernet, RS-232, and various modem types. The product stores up to 10,000 records internally and can download data to a PC for analysis. Recommended maintenance includes periodic cleaning of air filters and the oil filter, and battery replacement.
Troubleshooting and error codes
| Error code | Description |
|---|---|
| 00 | Missing mains input |
| 01 | PGA power supply voltage too low |
| 02 | PGA chopper frequency outside range |
| 03 | PGA IR-source outside range |
| 04 | Gas flow lower than limit |
| 05 | Background noise/vibration too high |
| 06 | Microphone test failed |
| 07 | Not level sensor 1 pulses (level) |
| 08 | Not level sensor 3 (drain) |
| 09 | Level sensor 1 (level) |
| 10 | Level sensor 2 (level alert) |
| 11 | PGA Air temperature outside limits |
| 12 | Bad communication with control PCB |
| 13 | Gas leak test: Pump pressure too low |
| 14 | Gas leak test: Pressure decay too high |
| 16 | Oil temperature too low |
| 17 | Oil temperature too high |
| 18 | Oil pressure too low |
| 19 | Oil pressure too high |
| 20 | Oil pump tacho count too high |
| 21 | Oil pump pressure too low |
| 22 | Oil pump speed out of range |
| 23 | Manual oil sampling switch |
| 24 | Oil pump tacho count too low |
| 25 | {not used/defined} |
| 26 | 5 V supply below 4.5 V |
| 27 | Temperature Sensor(s) 1 disconnected |
| 28 | Temperature Sensor(s) 2 disconnected |
