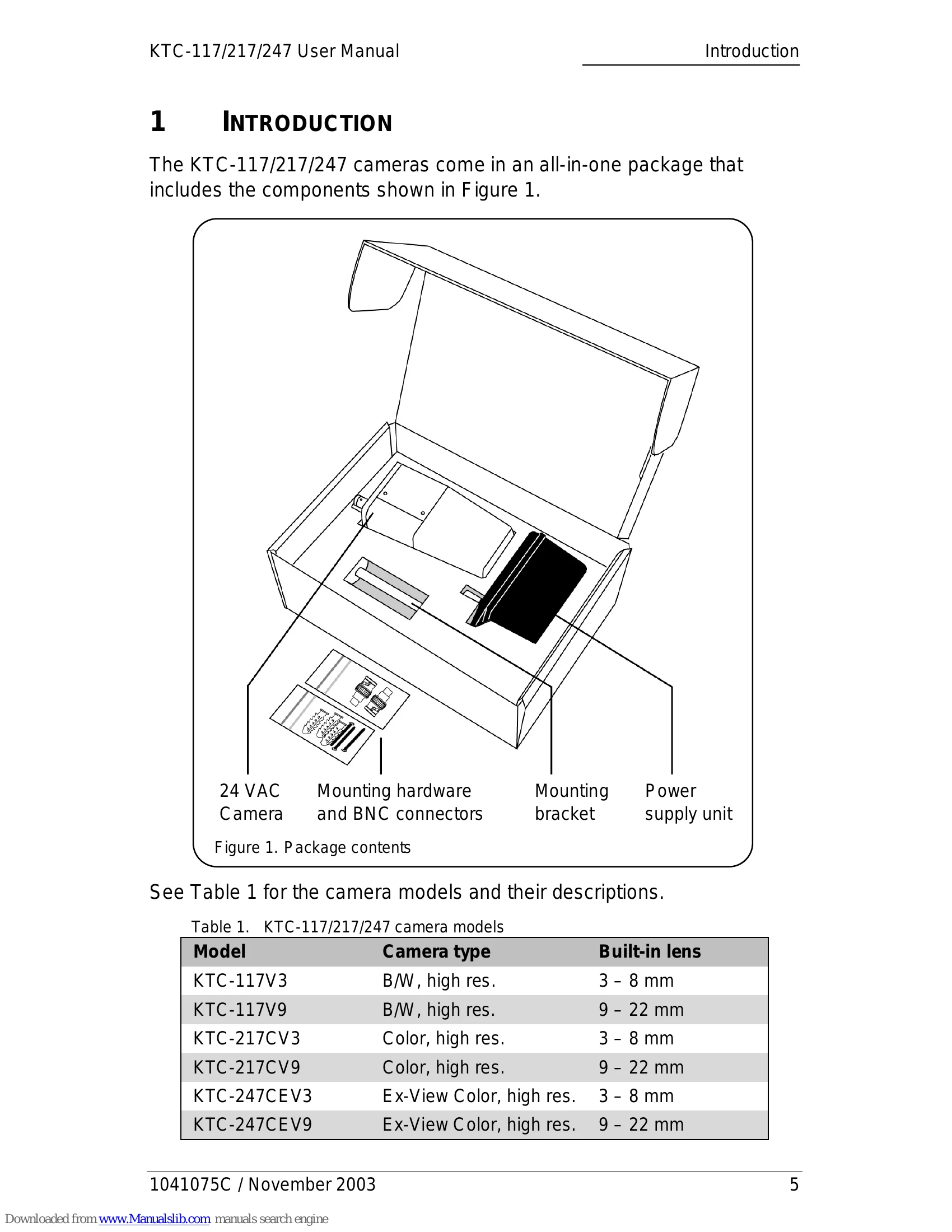

Manual for KTC-117V3/117V9
Uploaded: Nov. 21, 2025, 6:02 p.m.
Manual Publish Date: 2003-11-01
Warranty Information
This manual does not contain specific warranty information.
Installation and Operation
- Read all instructions before installation and operation.
- Ensure installation is performed by a qualified service person and conforms to local codes.
- The product is designed for a specific purpose; use it only as intended.
- Refer to the manual for installation, operation, maintenance, and troubleshooting.
- Contact GE Interlogix, Kalatel division technical support for assistance.
Camera Adjustments
- Open the camera housing by pressing down on the grip strips and swiveling the door.
- Adjust zoom and focus using the respective thumbscrews and rings.
- Adjust the direct drive auto iris level using an insulated tool on the back panel.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| PWR LED does not illuminate | Improper terminal block connections | Check terminal block connections and power source. |
| No image on monitor | Video cable not connected properly | Ensure video cable is securely connected to the camera's VIDEO OUT and the monitor's video in connectors. |
