Installation Guide for Legend
Uploaded: Nov. 21, 2025, 8:20 p.m.
Manual Publish Date: 2005-01-01
Warranty Information
GE offers a warranty for its products; refer to provided documentation for details.

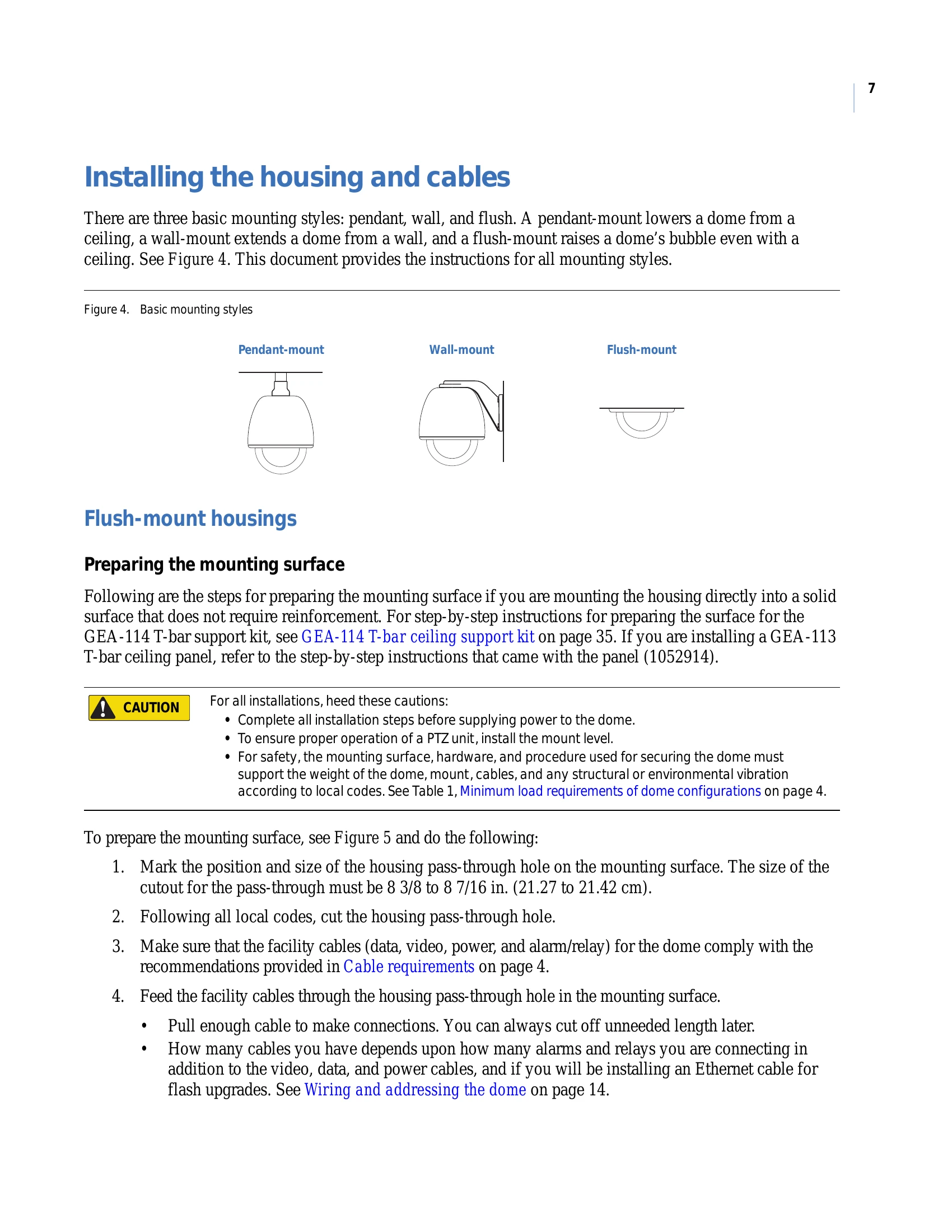

The GE Legend Installation Manual provides detailed instructions for installing all Legend dome models. It covers preparation, wiring, addressing, camera assembly, and troubleshooting. Key installation steps include preparing the mounting surface, installing the housing, wiring the board with power, data, video, and alarm/relay connections, setting the camera's site address and protocol, and installing the camera assembly and bubble.
The manual also includes sections on troubleshooting common issues, maintenance procedures like resetting and rebooting the dome, and cleaning the bubble. Spare parts and technical support contact information are also provided.
Troubleshooting and error codes
| Common installation issues | |
| Issue | Solution |
| Dome resetting during power-up, not powering up, or not operating as expected | Verify sufficient power supply for the model. |
| Diagnostic LEDs not illuminating | Ensure camera assembly is fully engaged. Check alignment tabs, color coding, pawls, and interconnect card. If issues persist, check power cable connection. |
| Video not appearing on monitor | Check dome LEDs for power and programming status. Reseat camera assembly if needed. Verify video cable connection, ensuring correct polarity for UTP video. |
| Video present but no PTZ control | Verify the dome's address. Correct address/protocol if necessary. Ensure data cable is properly connected. Try cycling power to the dome. |
