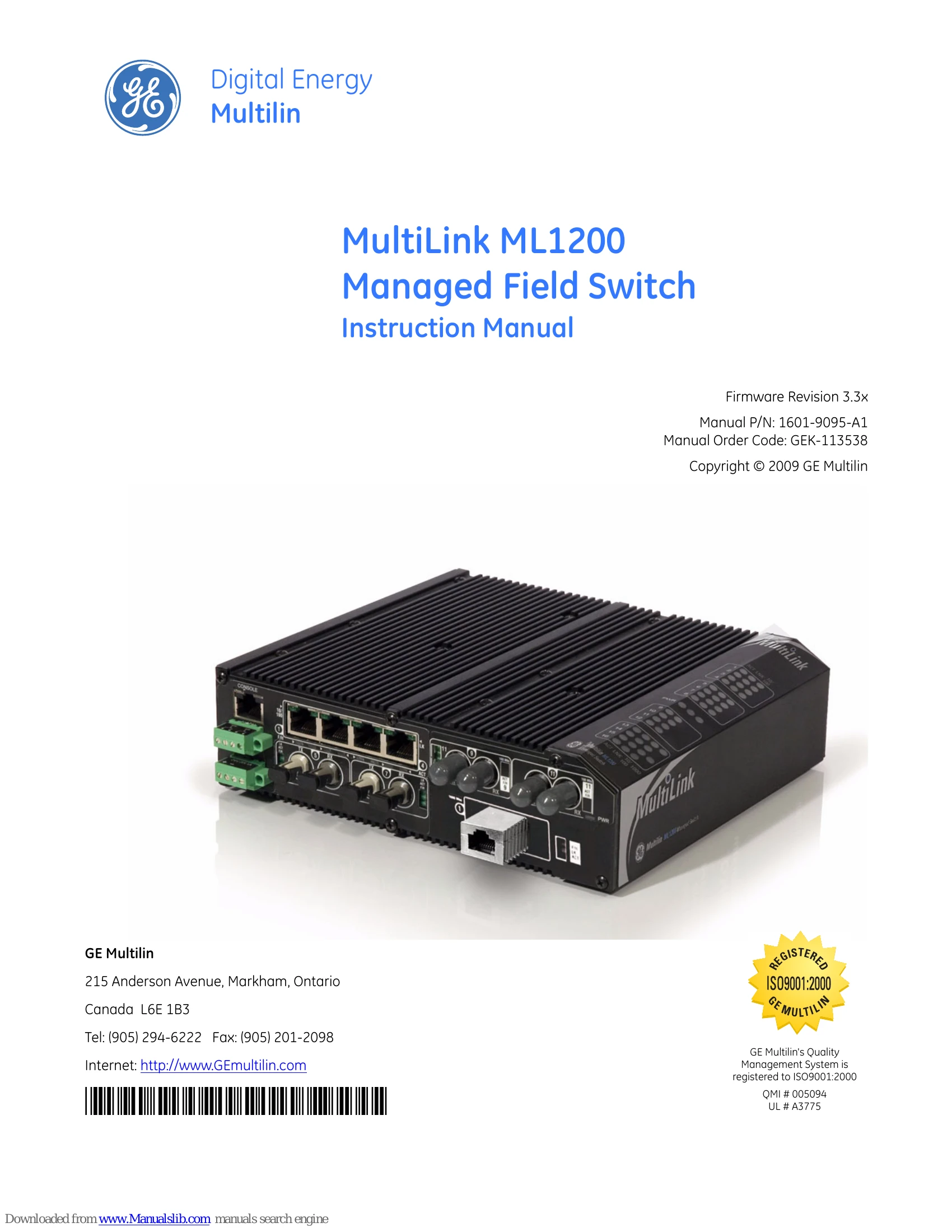

Manual for ML1200
Uploaded: Nov. 21, 2025, 9:04 p.m.
Manual Publish Date: 2009-06-01
Warranty Information
The product comes with a three-year warranty.
The Multilink ML1200 Managed Field Switch is a network device that can be managed via a Command Line Interface (CLI) or a web-based interface. It supports various network protocols and configurations, including IP addressing, VLANs, Quality of Service (QoS), and security features. Initial setup involves connecting to the console port and configuring IP parameters. The switch offers different privilege levels for user access (operator and manager). Firmware updates can be performed through the CLI or web interface. The device supports multiple power input options, including DC power, and features dual-source power for increased uptime. Installation requires careful attention to electrical safety requirements and proper cable connections.
Troubleshooting and error codes
| TEST | REFERENCE STANDARD | TEST LEVEL |
|---|---|---|
| Electrostatic Discharge | EN61000-4-2 | Level 4 |
| RF immunity | EN61000-4-3 | Level 3 |
| Fast Transient Disturbance | EN61000-4-4 | Level 3 & 4 |
| Surge Immunity | EN61000-4-5 | Level 4 |
| Conducted RF Immunity | EN61000-4-6 | Level 3 |
| Power magnetic Immunity | IEC61000-4-8 | Level 2 |
| Voltage Dip & interruption | IEC61000-4-11 | 0,40,70% dips,250/300cycle interrupts |
| Environmental (Cold) | DNV 2.4 | -25 C |
| Environmental (Dry heat) | DNV 2.4 | 70C |
| Relative Humidity Cyclic | DNV 2.4 | 2 day |
| Radiated & Conducted Emissions | CISPR22/IEC60255-25 | Class A |
| Radiated & Conducted Emissions | FCC Part 15 Subpart B | Class A |
| Safety | EN60950-1 | stanadard |
| Harmonics | EN61000-3-2 | |
| Flicker | EN61000-3-3 | |
| Ingress Protection | IEC60529 | IP20A |
| Sinusoidal Vibration | DNV 2.4 | 1 to 4 G |
