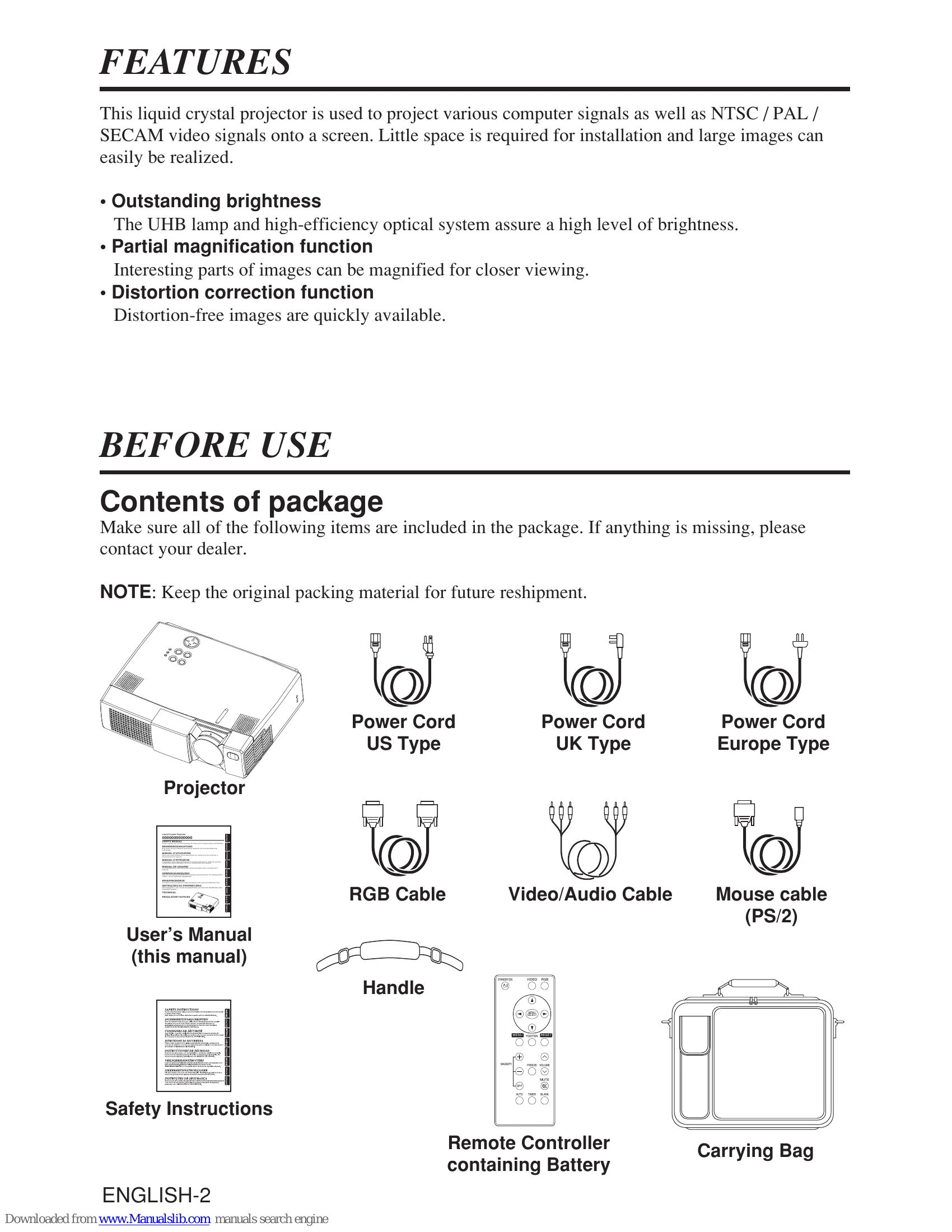

Manual for Liquid Crystal Projector
Uploaded: Nov. 21, 2025, 7:33 p.m.
Warranty Information
Refer to the troubleshooting section first. If issues persist, contact your dealer for potential repairs at a charge.
Switching the Power Supply ON/OFF
To turn ON: Check power cord, set power switch to '|', press STANDBY/ON. Wait for Power indicator to turn green. Open slide lens door, adjust zoom and focus.
To turn OFF: Press STANDBY/ON for approx. 2 seconds. Wait for Power indicator to blink orange (cooling). Once orange, set power switch to 'O'.
Basic Operation
- Input Select: Press INPUT button to cycle through inputs (RGB1, RGB2, VIDEO, S-VIDEO).
- Position: Press POSITION button to enter adjustment mode, use arrow keys.
- Reset: Press RESET button to initialize menu items or position adjustment.
- Magnify: Press MAGNIFY + to enter, use arrow keys to move, +/- to adjust zoom, OFF to exit.
- Freeze: Press FREEZE button to freeze/unfreeze image.
- Volume: Use VOLUME buttons to adjust sound.
- Mute: Press MUTE button to silence audio.
- Auto Adjust: Press AUTO button for automatic adjustment (RGB or Video/S-Video).
- Blank: Press BLANK button to turn the screen black.
- Menu: Press MENU button to access menus. Use MENU SELECT to choose between normal and single menu types.
Troubleshooting and error codes
| Symptom | Possible cause | Remedy | Page |
|---|---|---|---|
| The power is not turned on. | The main power switch is not turned on. | Turn on the main power switch. | 8,9 |
| The power cord is disconnected. | Plug the power cord into an AC power outlet. | ||
| No video or audio. | The input is not correctly set. | Use the projector or remote control transmitter to set. | 10 |
| No signal input. | Connect correctly. | 7,8 | |
| The projector is not correctly connected. | Connect correctly. | 7,8 | |
| Video is present but no audio. | The volume is set to minimum. | Press VOLUME on the remote control or display the menu screen and adjust the volume. | 11,15 |
| Mute is turned on. | Press the MUTE button. | 11 | |
| Audio is present but no video. | The projector is not correctly connected. | Connect correctly. | 7,8 |
| The brightness adjustment knob is rotated fully clockwise. | Select BRIGHT with the MENU button and the press the button. | 12 | |
| The slide lens door is still closed. | Open the slide lens door. | 9 | |
| Colors are pale and color matching is poor. | Color density and color matching are not correctly adjusted. | Adjust the video. | 12 |
| Images are dark. | Brightness and contrast are not correctly adjusted. | Adjust the video. | 12 |
| The lamp is nearing the end of its service life. | Replace with a new lamp. | 17 | |
| Video is blurred. | Focus or H PHASE is out of adjustment. | Adjust the focus or H PHASE. | 9,12 |
