Manual for HDC80E1
Uploaded: Nov. 21, 2025, 9:11 p.m.
BEFORE USE

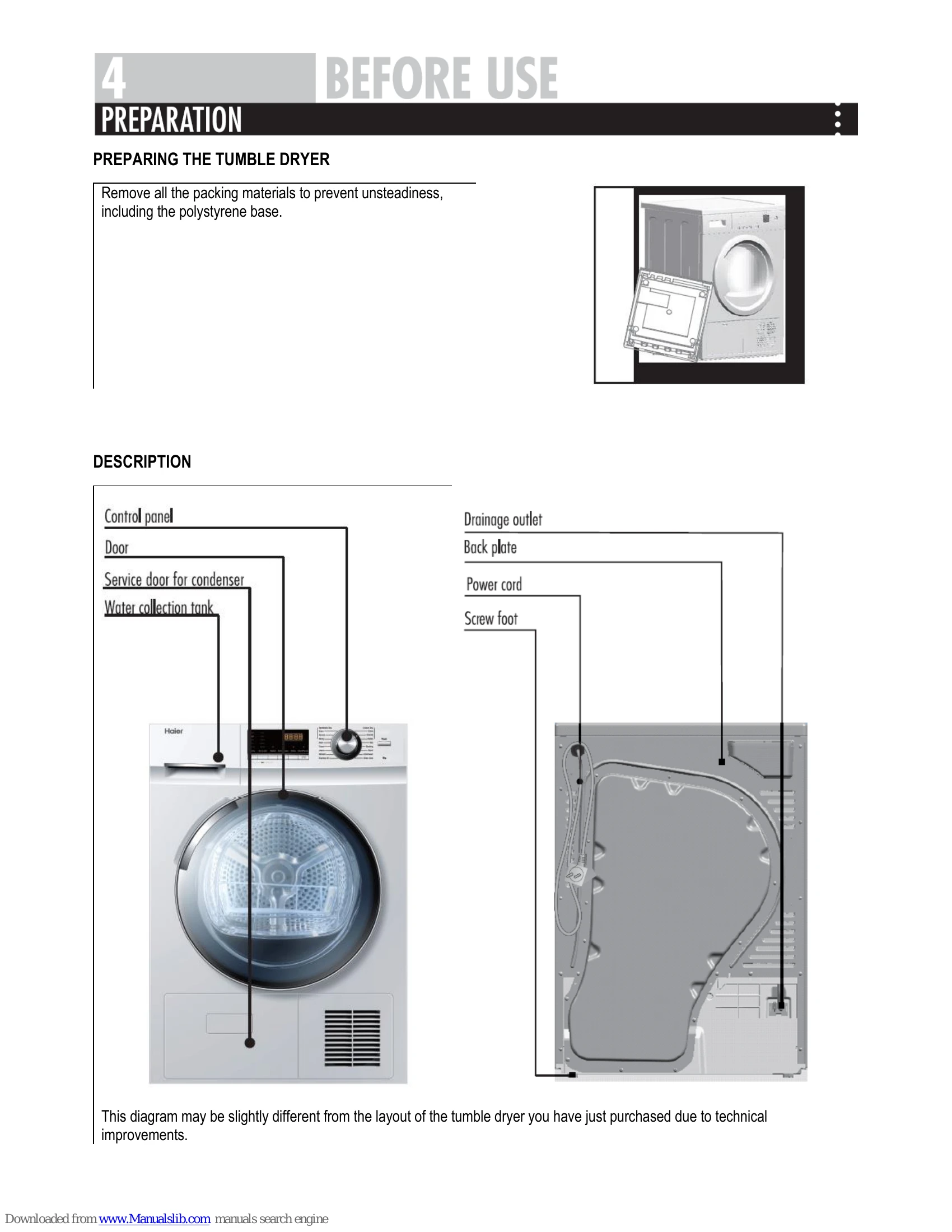

Components: Familiarize yourself with the parts of your Haier tumble dryer, including the control panel, door, service door for the condenser, water collection tank, drainage outlet, back plate, power cord, and screw feet.
Preparation: Ensure the dryer is level and away from flammable substances. Check for any transportation damage. The ambient temperature should be between 10°C and 35°C.
Safety Instructions: Follow basic precautions to reduce the risk of fire, electric shock, or injury. This includes proper use, cord maintenance, load limits, cleaning frequency, and avoiding drying certain items like foam rubber or oil-affected fabrics.
Installation: Level the dryer using adjustable feet. Ensure the surrounding environment is dry and ventilated.
Control Panel: Understand the function of each button and knob: Power, Program knob, Start/Pause, Signal, Anti-crease, Delay, Dry level, and Temperature level. The display shows remaining time and other information.
USING THE DEVICE
Program Selection: Choose the appropriate drying program from 16 options based on fabric type (e.g., Cotton Dry, Synthetic Dry, Special programs like Shirt, Jeans, Sport).
Selecting Functional: Adjust additional settings like Dry Level (Extra dry, Ready to wear, Ready to iron), Temperature Level (High, Med, Low, Airing), Signal, Anti-Crease, and Delay Start.
Drying: Press the Start/Pause button to begin. The dryer stops automatically when the cycle ends. The "end" sign appears. Remove laundry promptly or the anti-crease phase will activate.
Turning Off: Press the power button and unplug the dryer.
Drying Methods: Prepare laundry by spinning it well, emptying pockets, closing zippers, and unfolding large items. Use the drying rack for items like sport shoes or woolens. Load laundry evenly and avoid overloading. Follow fabric softener instructions.
Care Chart & Load Reference: Consult the care chart for laundry symbols and the load reference for recommended weights for different items.
MAINTENANCE
Cleaning the Tumble Dryer: Wipe the body and control panel with a damp cloth. Avoid organic solvents.
Cleaning the Filter Screen: Clean after every drying program to ensure good ventilation. Open the door, remove, open, clean the filter screen, and replace it.
Emptying the Water Collection Tank: Empty the tank after each program. Note: Do not use this water for drinking or food processing.
Cleaning the Drum: Periodically clean the inside of the drum.
Cleaning the Condenser: Clean the condenser monthly. Unlock the maintenance flap, pull out the air cooler, clean it, and reassemble.
Display Codes & Troubleshooting: Refer to the table for error codes (e.g., "Tank" light, F2, F31, F32, F4, F5, E6) and their solutions. Common troubleshooting issues include the dryer failing to operate, showing "End", long drying times, or the remaining time skipping.
Electric Circuit Diagram: Provides a schematic of the dryer's electrical components.
Troubleshooting and error codes
| PROBLEM | CAUSES | SOLUTIONS |
|---|---|---|
| Tumble dryer fails to operate. |
¬ Poor connection to the power supply. ¬ Power failure. ¬ No drying program is set. - Device has not been switched on. - The water collection tank is full. ¬ The tumble dryer door is not properly closed. |
Check connection to the power supply. Check the power supply. Make sure a drying program has been set. Make sure the device is switched on. Empty the water collection tank. Close the tumble dryer door properly. |
| Tumble dryer fails to operate and the display shows "End". |
→ The laundry has reached the condition defined by the program setting. → There is no laundry in the drum. |
Check if your program setting is appropriate. Check if there's laundry in the drum. |
| Drying time is too long and the results are not satisfactory. |
→ The program setting is not correct. - The filter screen has not been cleaned. → The condenser is blocked. → The tumble dryer is overloaded. ¬ The laundry is too wet. - The vent duct is blocked. |
Make sure the program is set correctly. Clean the filter screen. Clean the condenser. Reduce the amount of laundry in the drum. Spin the laundry properly before drying. Check the vent duct and unblock it. |
| Remaining time on the display stops or skips. |
The remaining time will be adjusted and corrected continuously and automatically based upon the following factors: → Type of laundry. - Loaded amount. - The degree of spinning dry of laundry. → Ambient temperature. |
The automatic adjustment is a normal operation. |
