Manual for 55E3500
Uploaded: Nov. 21, 2025, 7:20 p.m.
This manual provides detailed service information for the Haier 55E3500 LED TV.

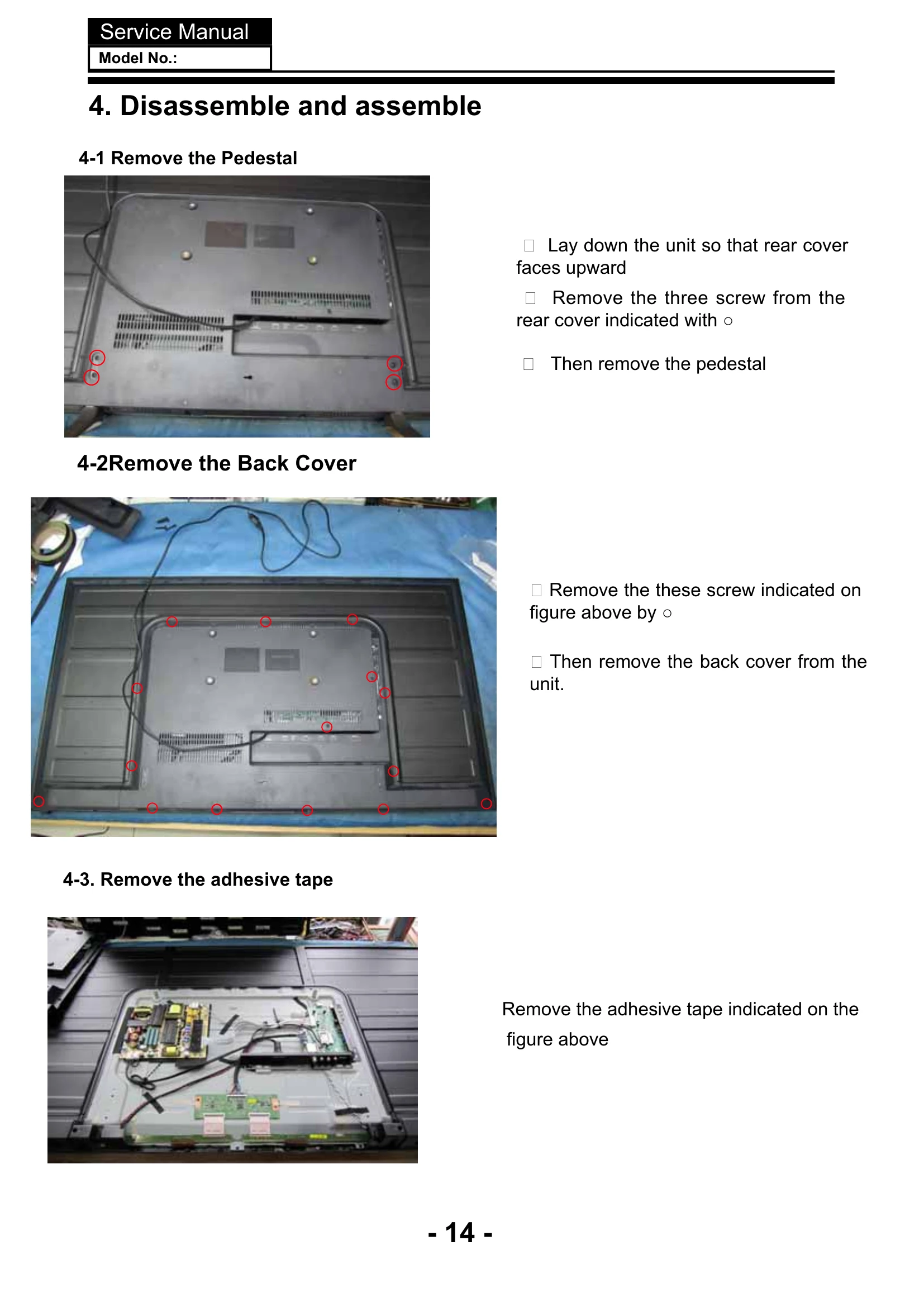

It covers general guidelines, specifications, location of controls and components, disassembly and assembly procedures, installation instructions, operation details, electrical parts, measurements and adjustments, and troubleshooting guides.
Key sections include board locations, connector definitions, disassembly steps for various parts, external equipment connections (Antenna, PC, AV, HDMI), and detailed troubleshooting flowcharts for common issues like no sound, no picture, no light, or poor sound/color.
Safety precautions and guidelines for handling sensitive components are also emphasized.
Troubleshooting and error codes
| Part | Name | Description | Phenomena | Failure cause |
|---|---|---|---|---|
| TCP | V B/D | Vertical bar | Block Defect :TCP cracking or cracking Dim or L/D :TCP Sunken :TCP lead cracking :ACF bonding short :Awful environment and something electric enter into LCD :Mis-align between TCP and Panel :Panel failure :TCP failure |
|
| V Dim | Vertal gray line | |||
| V L/D | Vertical color line(light or dark forever) | |||
| H B/D | Horizontal bar | |||
| H Dim | Horizontal gary line | |||
| Panel or Polarizer | Dot Defect | Bright dot dark dot in pannel | Bright Dot Dark Dot | Incoming Inspection Standard |
| Polarizer Bubble | Bladder in Polarizer | Bladder between Polarizer and top glass | ||
| Polarizer Scratch | Polarizer Scratch | Tine or rigidity arose | ||
| F / M inside Polarizer | Eyewinker inside Polarizer | Eyewinker inside Polarizer | ||
| Circuit | Abnormal Display | Abnormal Display | 1.Chip lose action 2.IC ahort or jointiog bad 3.Pannel and vsc connect bad |
|
| Flashing | Bright and dark display alternately |
