Parts/Service for HLC24XLP2
Uploaded: Nov. 21, 2025, 6:36 p.m.
Manual Publish Date: 2010-09-19

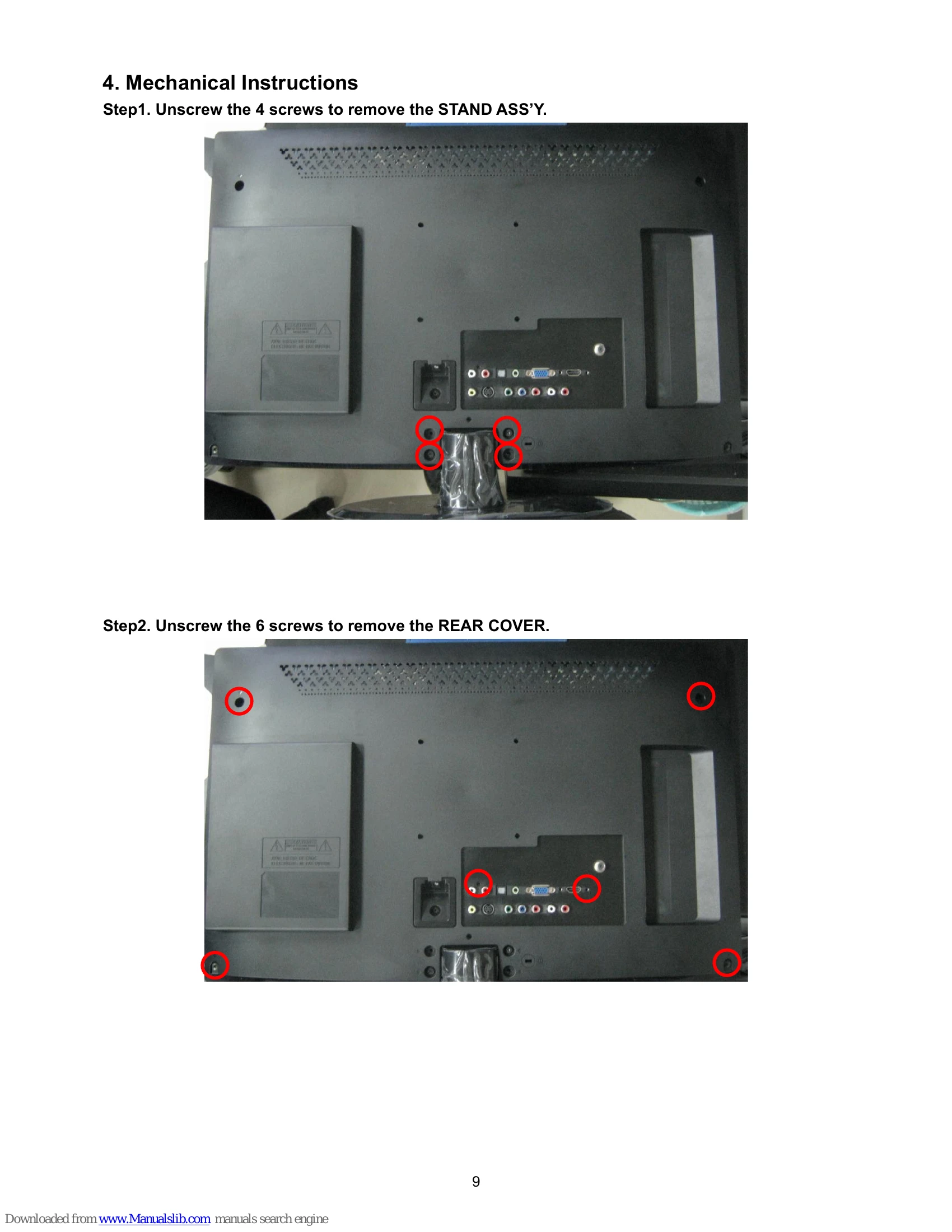

Warranty Information
Use only original manufacturer's replacement parts as listed in this service manual.
No Power: Check AC input and power switch. Verify power board output is 5V. Inspect IR board and LED. Replace IR board if necessary, otherwise replace the main board.
Cannot Start: If LED is red, check power board output (19V). Verify power key function and IR receiver. Replace key board, IR board, or main board as needed.
Abnormal Display: Reset the source or try factory reset. Check main board, LVDS cable, and panel.
No Display: Verify TV control and power. Check backlight status. Inspect LVDS cable, B/L signal, and panel power (Vcc). Replace main board, power board, or panel.
Sound Problem: Check audio source and TV system connections. Ensure TV is not muted and volume is adjusted. Check speaker cable and resistance. Replace cable, main board, or speaker.
Remote Control Malfunction: Check batteries, placement, and power. Try other remote controls. Inspect IR board. Replace battery, remote, IR board, or main board.
OSD Unstable: Ensure key board connection. Verify button function. Check key board. Reset via factory mode or replace main board.
Troubleshooting and error codes
| Problem | Troubleshooting Steps | Possible Cause | Solution |
|---|---|---|---|
| No power | Check AC input, power switch status. Verify power board output (5V). Check IR board and LED. | Faulty power board, IR board, or main board. | Replace power board, IR board, or main board. |
| Can't start (LED red) | Check power board output (19V). Verify power key and IR receiver. | Faulty power board, key board, IR board, or main board. | Replace power board, key board, IR board, or main board. |
| Abnormal Display | Reset source, enter factory mode for EEPROM reset. Check main board, LVDS cable, panel. | Incorrect source setting, faulty main board, LVDS cable, or panel. | Reset source, perform factory reset, replace main board, LVDS cable, or panel. |
| No display (LED white) | Check TV control and power. Verify backlight status. Inspect LVDS cable, B/L signal, and panel Vcc. | Faulty main board, LVDS cable, panel, or power board. | Replace main board, LVDS cable, panel, or power board. |
| Sound problem | Check audio source connection and TV system. Verify mute status, volume, and reset menu. Check speaker cable and resistance. | Connection issue, faulty cable, main board, or speaker. | Reinsert/change audio cable, perform factory reset, replace cable, main board, or speaker. |
| Remote control malfunction | Check battery, placement, power. Use other remotes. Check IR board. | Battery issue, faulty remote, IR board, or main board. | Replace battery, remote control, IR board, or main board. |
| OSD is unstable or can't work normally | Check key board connection and buttons. Check key board function. | Improper connection, faulty buttons, key board, or main board. | Reconnect key board, replace button function, replace key board, or main board. |
