Brand: Haier
Category: Washing Machines
Document Type: Manual
Language: EN
Manual for HW80-B14959TU1
Uploaded: Nov. 21, 2025, 6:24 p.m.

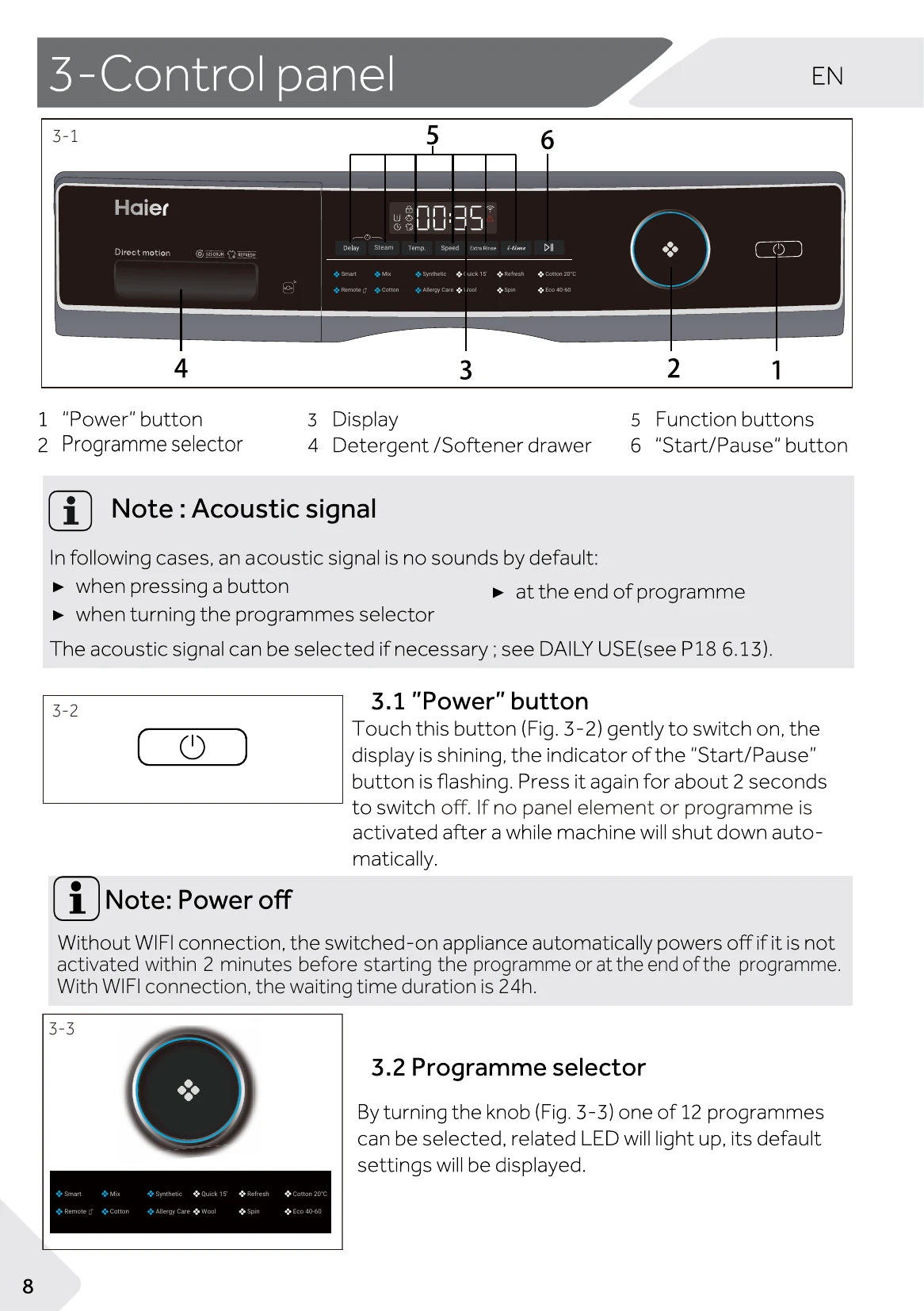

Basic Operation Summary
Power On/Off: Touch the "Power" button to switch on/off. The appliance may auto power off if not used.
Program Selection: Turn the programme knob to select the desired wash program. Default settings will be displayed.
Function Buttons: Use buttons like "Delay", "Steam", "Temp.", "Speed", "Extra Rinse", and "i-time" to customize the selected program.
Start/Pause: Touch the "Start/Pause" button to begin or interrupt the wash cycle.
Child Lock: Activate by pressing "Delay" and "Steam" buttons simultaneously for 3 seconds to prevent accidental changes.
Detergent Drawer: Open to add detergent, softener, or pre-wash agent into the appropriate compartments.
After Washing: The display shows "End" when the cycle is complete. Remove laundry promptly, turn off water supply, and unplug.
Troubleshooting and error codes
| Problem | Cause | Solution |
|---|---|---|
| CLr FLER | Drainage error, water is not fully drained within 6 minutes. | Clean pump filter. Check drain hose installation. |
| E2 | Lock error. | Shut the door properly. |
| E4 | Water level not reached after 12 minutes. | Make sure that tap is fully opened and water pressure is normal. |
| E8 | Water protective level error. | Check drain hose installation. Contact the After sales service. |
| F3 | Temperature sensor error. | Contact the After sales service. |
| F4 | Heating error. | Contact the After sales service. |
| F7 | Motor error. | Contact the After sales service. |
| FR | Water level sensor error. | Contact the After sales service. |
| FCO, FC 1 or FC2 | Abnormal communication error. | Contact the After sales service. |
| Unb | Unbalanced load error. | Check and balance laundry load in the drum. Reduce the load. |
| Washing machine fails to operate. | Programme is not yet started. Door is not properly closed. Machine has not been switched on. Power failure. Child lock is activated. |
Check programme and start it. Close the door properly. Switch the machine on. Check power supply. Deactivate child lock. |
| Washing machine will not be filled with water. | No water. Inlet hose is kinked. Inlet hose filter is blocked. Water pressure is less than 0.03 MPa. |
Check water tap. Check inlet hose. Unblock inlet hose filter. Check water pressure. |
| Machine is draining while being filled. | Door is not properly closed. Water supply failure. |
Close the door properly. Ensure the water supply. |
| Drainage failure. | Drain hose is blocked. Pump filter is blocked. Drain hose end is higher than 100 cm above floor level. |
Unblock drain hose. Clean pump filter. Make sure that drain hose is properly installed. |
| Strong vibration while spinning. | Not all transportation bolts have been removed. Appliance has no solid position. Machine load is not correct. |
Remove all transportation bolts. Ensure solid ground and a leveled position. Check load weight and balance. |
| Operation stops before completing wash cycle. | Water or electric failure. | Check power and water supply. |
| Operation stops for a period of time. | Appliance displays error code. Problem due to load pattern. Programme performs soaking cycle. |
Consider display codes. Reduce or adjust load. Cancel programme and restart. |
| Excessive foam floats drum and/or detergent drawer. | Detergent is not appropriate. Excessive use of detergent. |
Check detergent recommendations. Reduce amount of detergent. |
| Automatic adjustment of washing time. | Washing programme duration will be adjusted. | This is normal and doesn't affect functionality. |
| Spinning fails. | Unbalance of laundry. | Check machine load and laundry and run a spinning programme again. |
| Unsatisfactory washing result. | Degree of pollution does not agree with selected programme Detergent quantity was not sufficient. Maximum load has been exceeded. Laundry was unevenly distributed in the drum. |
Select an other programme. Choose the detergent acc. to the degree of pollution and according to manufacture specifications. Reduce loading. Loose the laundry. |
| Washing powder residues are on the laundry. | Insoluble particles of detergent can remain as white spots on the laundry. | Perform extra rinse. Try to brush the points from the dry laundry. |
| Laundry has grey patches. | Caused by fats such as oils, creams or ointments. | Choose an other detergent. Pretreat the laundry with a special cleaner. |
