Manual for X2
Uploaded: Aug. 10, 2025, 12:08 a.m.
- Powering On/Off: Press and hold the On/Off key to power the device on or off.
- Locking/Unlocking: Momentarily press the On/Off key to lock the screen. Press again and slide to unlock.

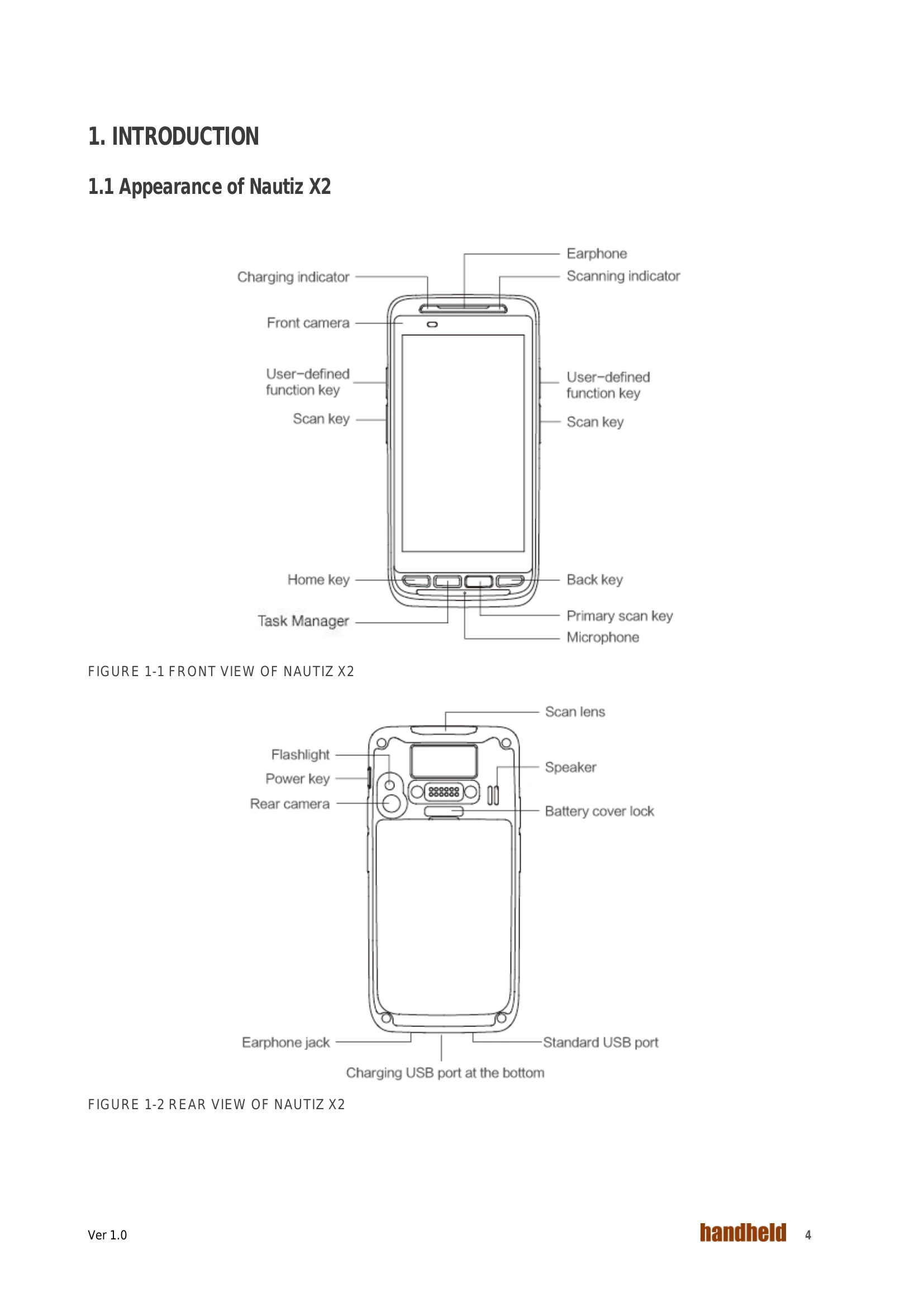

- Navigation: Use the Home key to return to the home screen, Task Manager to switch/close apps, Scan key to scan, and Return key to go back.
- Home Screen: Access applications by tapping their icons. Swipe left or right to switch between home screens. Add/delete icons as needed.
- Settings: Access various settings like Date & Time, Display, Audio profiles, Security, Language, Wi-Fi, Bluetooth, and GPS via the Settings icon.
- Calls: Use the Phone icon to make calls, manage contacts, and view call records.
- Messages: Use the Messaging icon for SMS and MMS.
- Email: Set up and manage email accounts through the email application.
- Connectivity: Connect to Wi-Fi and Bluetooth devices through the Settings menu.
- Scanning: Enable the iScan function to scan barcodes using the dedicated scan keys.
- NFC: Enable NFC in Settings to read NFC cards by placing them near the back of the device.
Troubleshooting and error codes
| Fault | Cause | Solution |
|---|---|---|
| After the power key is pressed, the Nautiz X2 is not powered on. | The battery volume is too low or the battery is not charged. | Charge the battery or replace the battery. |
| The rechargeable battery can no longer be charged. | The battery is incorrectly installed. | Correctly install the battery. |
| During data communication, data is not transmitted or transmitted data is incomplete. | The system breaks down. | Restore factory settings. |
| The relevant function is not activated after a user clicks a button or icon. | The battery fails. | Replace the battery. |
| No sound can be heard. | The temperature of the battery is too high or low. | Put the battery in normal temperature. |
| The Nautiz X2 is closed. | The cable configuration is incorrect. | Consult the system administrator. |
| The Nautiz X2 responds at a low speed. | The communication software is incorrectly installed or configured. | Install or reinstall the synchronization software to update the driver. |
| The Nautiz X2 cannot decode a barcode while reading it. | The system does not respond. | Restart the system. |
| The volume is too low or is disabled. | Adjust the volume. | |
| The Nautiz X2 is in the inactive state. | After being inactive for a period of time, the Nautiz X2 is locked. | |
| The battery is used up. | Replace the battery. | |
| Too many files are stored in the Nautiz X2. | Remove unused memos and records. If necessary, save the records on the host or increase the storage capacity by using an SD card. | |
| Too many applications are installed on the Nautiz X2. | Remove applications installed on the Nautiz X2. | |
| The scan application is not loaded. | Load the scan application in the Nautiz X2. | |
| Reading a barcode fails. | Check that the barcode is indefective. | |
| The battery volume is low. | If the scanner stops sending out a light beam after you press the trigger switch, check the battery volume. |
