Manual for DZ-MV350A / DZ-MV380A
Uploaded: Aug. 10, 2025, 12:52 a.m.

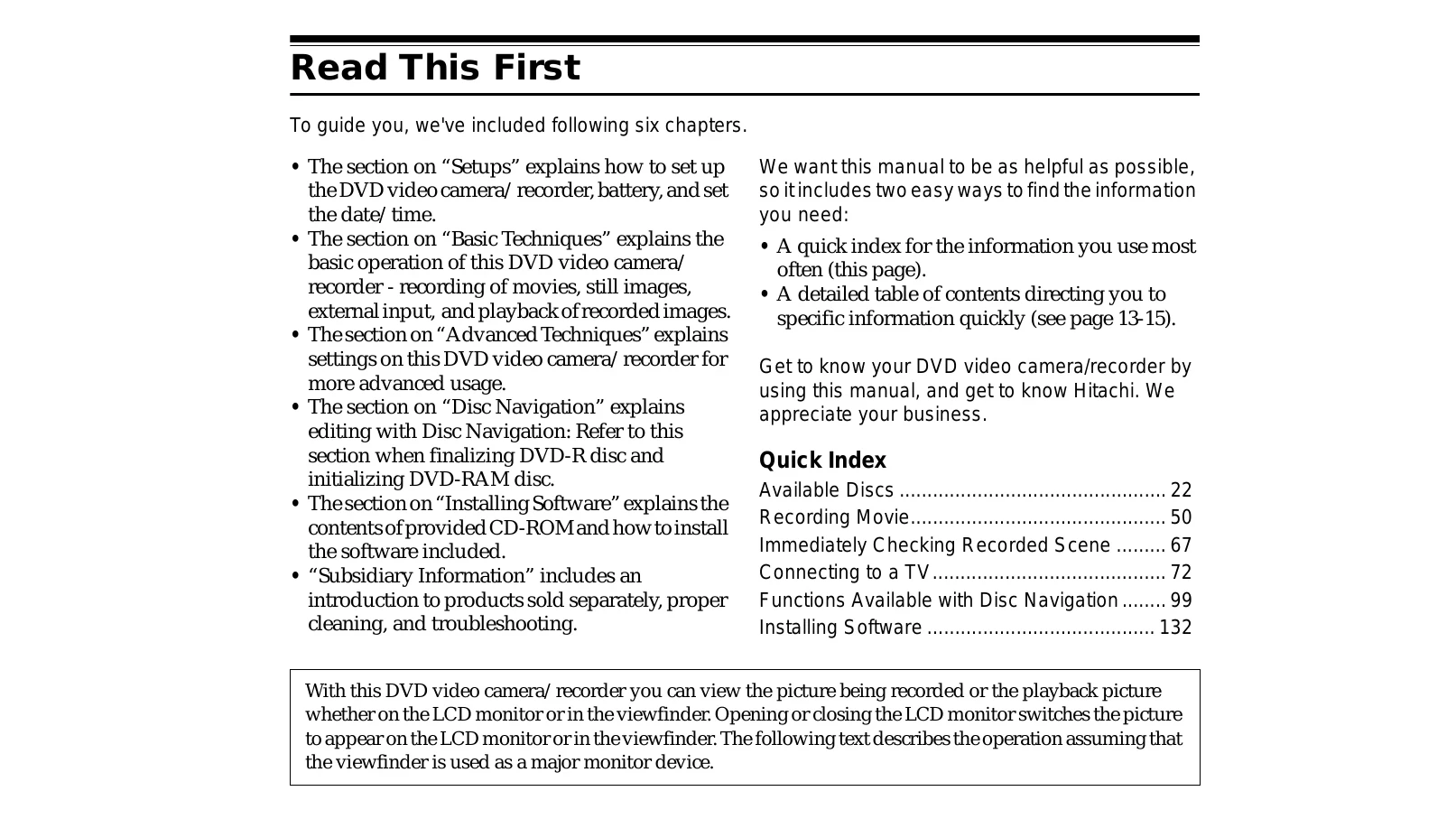

- The "Setups" section explains how to set up the DVD video camera/recorder, battery, and set the date/time.
- The "Basic Techniques" section explains the basic operation of this DVD video camera/recorder - recording of movies, still images, external input, and playback of recorded images.
- The "Advanced Techniques" section explains settings on this DVD video camera/recorder for more advanced usage.
- The "Disc Navigation" section explains editing with Disc Navigation: Refer to this section when finalizing DVD-R disc and initializing DVD-RAM disc.
- The "Installing Software" section explains the contents of provided CD-ROM and how to install the software included.
- "Subsidiary Information" includes an introduction to products sold separately, proper cleaning, and troubleshooting.
Troubleshooting and error codes
| Symptom | Cause and Correction | Reference page |
|---|---|---|
| Recognition of disc is not complete | Is disc dirty? Use soft, dry cloth to clean it. |
76 |
| Pressing the playback button will not start playback. | Has the image been recorded by devices other than this DVD video camera/recorder? Playback of image recorded on devices other than this DVD video camera/recorder may be impossible on this DVD video camera/recorder. Has scene been edited on a device other than this DVD video camera/recorder? If a scene recorded on this DVD video camera/recorder is edited on a device other than this DVD video camera/recorder, playback may not be possible on this DVD video camera/recorder. |
128 |
| No playback picture appears on TV screen. | Is TV input selector set correctly? Some TVs have multiple video input jacks. Check whether the correct input was selected on TV to match the connected jacks. If the DVD video camera/recorder is connected to VCR, set its input selector to "external input (LINE)”. Is the DVD video camera/recorder connected to TV correctly? Check the connections. |
73 |
| Playback picture is momentarily interrupted. | Is disc scratched or does dirt or fingerprint adhere to it? Clean the disc. |
76 |
| Poor playback picture | Was the image input from analog VCR (VHS, 8 mm) and recorded? The problem may be improved if a VCR equipped with TBC circuit is used for playback. |
— |
| Playback picture is greatly distorted. | Was recording of external input made with “Frame” specified? Specify "Field” for “PHOTO Input” in record mode settings. |
88 |
| No sound | Is the TV volume control set correctly? Adjust TV volume control, and be sure to adjust the volume on TV. |
73 |
| Disc Navigation thumbnails do not appear. | Was the image recorded from AV input/output jack with interference? Record image with no noise or disturbance. |
— |
