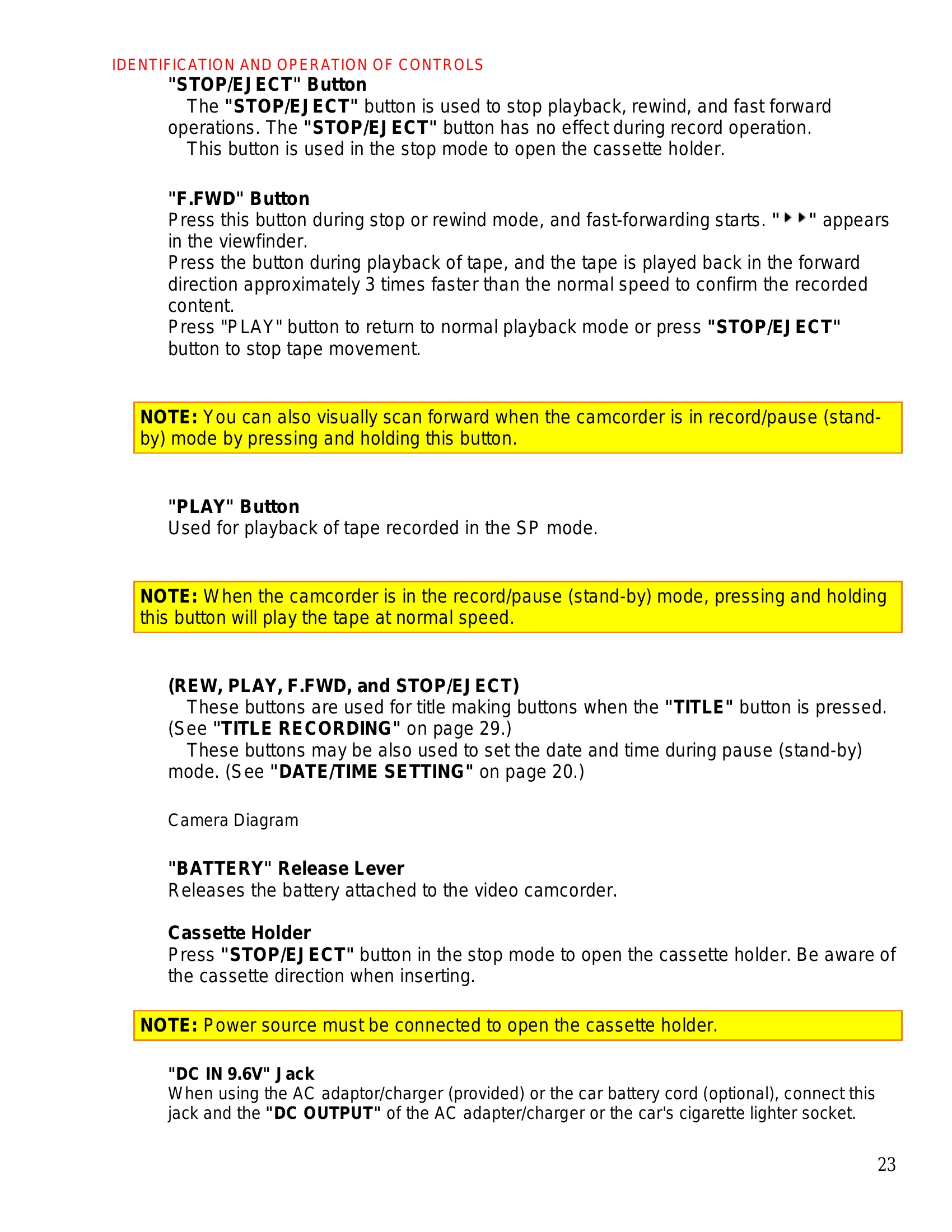

Manual for VM-1800A / VM-2800A / VM-3800A
Uploaded: Aug. 10, 2025, 12:51 a.m.
Warranty Information
Offers 1 year parts warranty (excluding battery) and 90 days labor.
Basic Operation
This manual provides instructions for operating your Hitachi VHS camcorder.
- Powering On/Off: Slide the POWER switch to "CAM" to turn on and "OFF" to turn off.
- Recording: Press the "REC/PAUSE" button to start recording. The "REC" indicator will appear. Press it again to pause.
- Playback: After recording, slide the POWER switch to "VIDEO", press "REW" to rewind, and then press "PLAY" to view the recorded footage.
- Viewfinder: Adjust the viewfinder for a clear image. It displays the scene being recorded and playback information.
- Battery/AC Power: Use the provided battery or AC adapter/charger for power. Follow charging instructions carefully.
Refer to specific sections for details on features like zoom, fading, titling, and connecting to a TV.
Troubleshooting and error codes
| Symptom | Check Point & Correction |
|---|---|
| INSERTING OR REMOVING THE CASSETTE | |
| Cassette holder cannot be opened when you slide “EJECT” button | Connect the power source. |
| Cassette cannot be inserted into cassette compartment. | Load cassette in direction indicated by arrow on cassette. Cassette window must be toward outside. |
| CAMERA RECORDING | |
| Picture does not appear in the viewfinder. | Remove the lens cap. Slide the power switch to "CAMERA" Disconnect the AV input cable from the camera/recorder. |
| The camera/recorder cannot go into the recording mode, even when the start/stop button is pressed. | Check the record protect tab on the cassette. |
| Picture is out of focus. | Make sure that the "FOCUS M” does not appear in the viewfinder. If it is displayed, press “Focus” select button to erase it. Auto-Focus does not operate if a special effects filter is attached. |
| NO OPERATION IS ACCEPTED | |
| Power is turned on, but no button operations are accepted. | Remove the power source, and after about one minute, push the reset switch gently using a toothpick, etc. until you feel a click. Since this erases the date, time and other customer preferred features, reset them again. |
| PLAYBACK OF PRE-RECORDED CASSETTE | |
| "PLAY" button cannot be engaged. | Set the "POWER" switch to "VIDEO" position. |
| No picture appears on television screen when Camera/recorder channel (3 or 4) depending upon the selected channel on (TV is connected to the camera/recorder using RF converter unit.) | Set the television to the "PLAY" is pressed. RF channel select switch of RF converter unit. Set "AV IN/OUT" switch to by |
