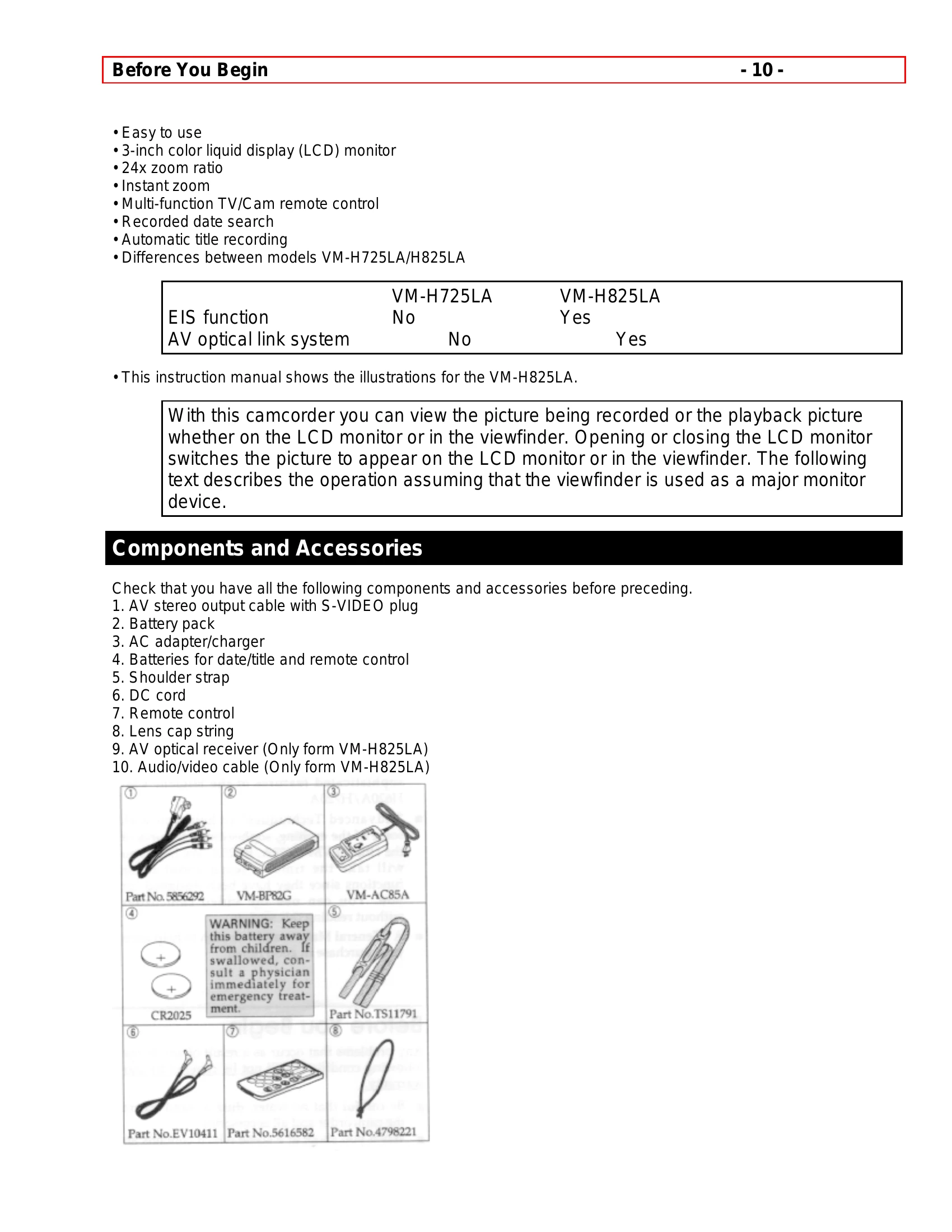

Manual for VM-H725LA / VM-H825LA
Uploaded: Nov. 21, 2025, 6:41 p.m.
Manual Publish Date: 1996
Warranty Information
1 year parts, 90 days labor.
This manual provides instructions for operating the Hitachi VM-H725LA / VM-H825LA 8mm Video Camcorder. It covers setup, basic recording, playback, advanced techniques, maintenance, and troubleshooting.
Getting Started: Includes charging the battery, adjusting the viewfinder and hand strap, and loading batteries (camcorder and remote control). It also details how to insert and remove cassettes and protect recorded material.
Basic Techniques: Covers making a basic recording, playback options (using viewfinder/LCD, still mode, search functions), and playing back on a TV.
Advanced Techniques: Explains operations like using power and digital zoom, connecting to a TV, date recording, fade effects, dubbing, recording TV programs, and using optional accessories like converter lenses and DC camera lights.
Maintenance & Troubleshooting: Offers guidance on general maintenance, cleaning, and resolving common issues.
Troubleshooting and error codes
| Symptom | Check Point & Correction |
| INSERTING OR REMOVING THE CASSETTE Cassette holder cannot be opened when you press EJECT switch | • Connect the power source |
| Cassette cannot be inserted into cassette compartment | • Load cassette in direction indicated by arrow on cassette • Cassette window must be toward outside. |
| CAMERA RECORDING Picture does not appear in the viewfinder or LCD monitor. | • Remove the lens cap. • Slide the CAM/OFF/VIDEO switch to CAM. • Disconnect the AV input cable from the camcorder. |
| The camcorder cannot go into the recording mode, even when the start/stop button is pressed. | • Check the record-protect tab on the cassette. See page 19 for details. • Push the cassette holder embossed PUSH LOCK to close it. |
| Picture is out of focus. Auto-focus does not operate. | • Slide the CAM/OFF/VIDEO switch to CAM. • Make sure that FOCUS does not viewfinder or LCD monitor. If it is effects page 39 are FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-filter is attached or the objects shown on being recorded. |
| The created title does not appear. | • Insert the clock battery, then create a title. • Do not remove the clock battery after creating a title. |
| The LCD monitor does not turn on. | • It does not turn on when alkaline batteries are used to power the camcorder. Use another power supply. • The LCD monitor cannot be powered through the DC cord while alkaline batteries are left in the camcorder. First remove the batteries, and then connect the DC cord to power the camcorder. |
| The optional DC camera light cannot be used. | • When you are viewing the picture on the LCD monitor the DC camera light cannot be used. |
| RECORDING TV PROGRAMS OFF THE AIR The camcorder cannot be set to the recording mode, even when the Start/Stop button on the camcorder is pressed. | • Check the record-protect tab on the cassette. See page 19 for details. • Set the CAM/OFF/VIDEO switch to CAM. • Connect the camcorder and TV or VCR. |
| PLAYBACK OF PRE-RECORDED CASSETTE "PLAY" button cannot be engaged. | • Set the CAM/OFF/VIDEO switch to VIDEO. |
| No picture appears on television screen when "PLAY" is pressed. (TV is connected to the camcorder by using RF output adapter.) | • Set the television to the camcorder channel (3 or 4) depending upon the selected RF channel select switch of RF output adapter. • When you see the playback picture on your TV, adjust fine tuning knob on television best picture. |
| Interference on playback picture. TV, (TV is connected to the camcorder by using RF output adapter.) | • TV receiver is of older type. It needs to be modified to work properly with camcorder. • Tape is damaged. Try another cassette. • TV set has VIR circuit. Turn it off during playback. |
| Picture bends at the top of the TV screen. | color of your TV screen is too bright, too faint or change. |
| Date search function does not operate VIDEO. | • Slide the CAM/OFF VIDEO switch to |
| then recording. | • Insert the clock battery, set the date and time, start recording. • Do not remove the clock battery after |
| the | • Do not eject the recorded cassette. Leave it in camcorder. |
| The optical link does not operate possible | • The optical transmission or reception is not when the LCD monitor is used. |
| BATTERY CONDITION The () indication in the electronic viewfinder flashes to indicate battery is discharged. The battery level indicator () appears differently on the LCD monitor and in the viewfinder. | • Try another battery or charge the battery. • This does not indicate a fault; it is power consumed by the LCD monitor viewfinder is different. |
| NO OPERATION IS ACCEPTED Power is turned on, but no button operations are accepted | • Remove the power source and the date/title battery. And after about one minute, the display in the viewfinder or LCD monitor will be reset. Then information again. • Check that the polarities (+, -) of the correct. • Insert six batteries. |
| TAPE DISPLAY TAPE appears in the viewfinder or LCD monitor. | • Have you moved the camcorder or cassette from a cold place to a warm place so that its temperature changed abruptly? If the temperature has changed, remove the cassette and set CAM/OFF/VIDEO switch to OFF, then wait for about one hour. |
