Manual for VM-H725LA/VM-H825LA
Uploaded: Aug. 10, 2025, 12:52 a.m.
Warranty Information
Limited warranty terms are stated on the warranty card or operating guide.

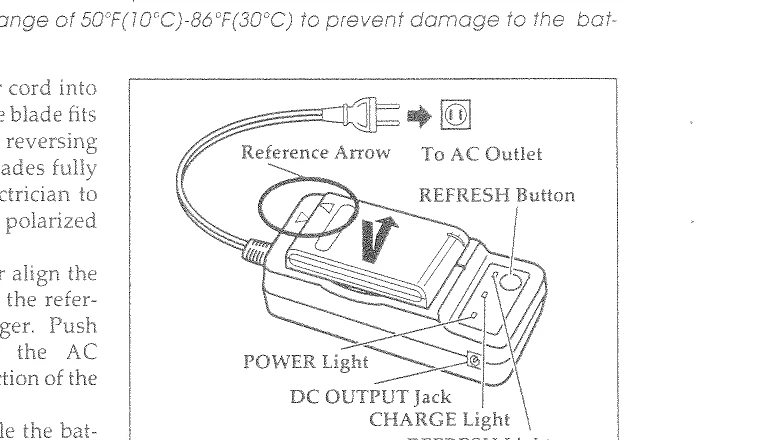

- Charging the Battery: Plug in AC adapter/charger, insert battery into charger. CHARGE light indicates charging. Estimated charging time for VM-BP84 is 1.25 hours.
- Adjusting Viewfinder/Strap: Pivot viewfinder for comfort. Adjust eyepiece diopter for focus. Adjust hand strap for fit.
- Loading Batteries: Insert clock battery into holder. Insert remote control battery. Ensure correct polarity.
- Inserting Cassette: Open LCD monitor, press EJECT. Place cassette with transparent window facing away. Push cassette holder until it clicks.
- Setting Date/Time: Load battery, set CAM/OFF/VIDEO switch to CAM. Use DATE/TITLE button and transport controls (F.F, REW, STOP) to set date and time.
Troubleshooting and error codes
| Symptom | Check Point & Correction |
|---|---|
| INSERTING OR REMOVING THE CASSETTE | |
| Cassette holder cannot be opened when you press EJECT switch. | • Connect the power source. |
| Cassette cannot be inserted into cassette compartment. | • Load cassette in direction indicated by arrow on cassette. • Cassette window must be toward outside. |
| CAMERA RECORDING | |
| Picture does not appear in the viewfinder or LCD monitor. | • Remove the lens cap. • Slide the CAM/OFF/VIDEO switch to CAM. • Disconnect the AV input cable from the camcorder. |
| The camcorder cannot go into the recording mode, even when the start/stop button is pressed. | • Check the record-protect tab on the cassette. See page 19 for details. • Push the cassette holder embossed PUSH LOCK to close it. • Slide the CAM/OFF/VIDEO switch to CAM. |
| Picture is out of focus. | • Make sure that FOCUS does not appear in the viewfinder or LCD monitor. If it is displayed, press FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-effects filter is attached or the objects shown on page 39 are being recorded. |
| The created title does not appear. | • Insert the clock battery, then create a title. • Do not remove the clock battery after creating a title. |
| The LCD monitor does not turn on. | • It does not turn on when alkaline batteries are used to power the camcorder. Use another power supply. • The LCD monitor cannot be powered through the DC cord while alkaline batteries are left in the camcorder. First remove the batteries, and then connect the DC cord to power the camcorder. |
| The optional DC camera light cannot be used. | • When you are viewing the picture on the LCD monitor, the DC camera light cannot be used. |
| RECORDING TV PROGRAMS OFF THE AIR | |
| The camcorder cannot be set to the recording mode, even when the Start/Stop button on the camcorder is pressed. | • Check the record-protect tab on the cassette. See page 19 for details. • Set the CAM/OFF/VIDEO switch to CAM. • Connect the camcorder and TV or VCR. |
