Brand: HITACHI
Category: Camcorder
Document Type: Manual
Language: EN
Manual for VM-H835LA
Uploaded: Aug. 10, 2025, 12:51 a.m.
Warranty Information
The manual mentions that problems resulting from certain conditions are not covered by the warranty. It advises consulting a dealer or service center for specific warranty inquiries.

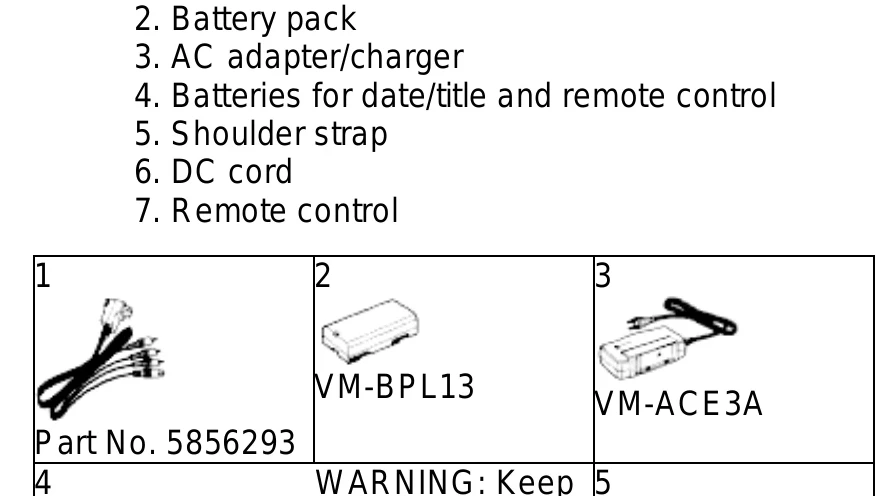

Getting Started: This section guides you through the initial preparation of the camcorder. It recommends reading all safety instructions first, then familiarizing yourself with the controls and features. It emphasizes that becoming comfortable with the machine will allow you to utilize its full capabilities. Components and accessories are listed for users to check before proceeding.
Basic Techniques: This section is designed to help you use the camcorder quickly and confidently. It covers fundamental operations, allowing users to get started with recording. Advanced techniques are also introduced for more sophisticated features.
Maintenance: A general maintenance section is included to help keep the purchased item in good repair.
Information Access: The manual includes a quick index for frequently used information and a detailed table of contents for quick access to specific topics. Users are encouraged to use the manual to become familiar with their Hitachi camcorder.
Troubleshooting and error codes
| Symptom | Check Point & Correction |
|---|---|
| Cassette holder cannot be opened | • Connect the power source |
| when you slide EJECT switch | • Open the LCD monitor, then slide the EJECT switch. • Load cassette in direction indicated by arrow on cassette • Cassette window must be toward outside. |
| Cassette cannot be inserted into cassette compartment | • Open the lens door. • Slide the CAM/OFF/VIDEO switch to CAM. • Disconnect the AV input cable from the camcorder. • Check the record-protect tab on the cassette. See page 18 for details. • Push the cassette holder embossed PUSH LOCK to close it. • Slide the CAM/OFF/VIDEO switch to CAM. |
| Picture does not appear in the viewfinder or LCD monitor. | • Make sure that "FOCUS" does not appear in the viewfinder or LCD monitor. If it is displayed, press FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-effects filter is attached or the objects shown on page 25 are being recorded. |
| The camcorder cannot go into the recording mode, even when the start/stop button is pressed. | • Make sure that "FOCUS" does not appear in the viewfinder or LCD monitor. If it is displayed, press FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-effects filter is attached or the objects shown on page 25 are being recorded. |
| Picture is out of focus. | • Make sure that "FOCUS" does not appear in the viewfinder or LCD monitor. If it is displayed, press FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-effects filter is attached or the objects shown on page 25 are being recorded. |
| Auto-focus does not operate. | • Make sure that "FOCUS" does not appear in the viewfinder or LCD monitor. If it is displayed, press FOCUS Control buttons to erase it. • Auto-Focus does not operate if a special-effects filter is attached or the objects shown on page 25 are being recorded. |
| The created title does not appear. | • Insert the clock battery, then create a title. • Do not remove the clock battery after creating a title. |
| RECORDING TV PROGRAMS OFF THE AIR | |
| The camcorder cannot be set to the recording mode, even when the Start/Stop button on the camcorder is pressed. | • Check the record-protect tab on the cassette. See page 18 for details. • Set the CAM/OFF/VIDEO switch to CAM • Connect the camcorder and TV or VCR. |
| PLAYBACK OF PRE-RECORDED CASSETTE | |
| The PLAY button cannot be engaged. | • Set the CAM/OFF/VIDEO switch to VIDEO. |
| No picture appears on television screen when The PLAY is pressed. (TV is connected to the camcorder by using RF output adapter.) | • Set the television to the camcorder channel (3 or 4) depending upon the selected channel in the RF channel select switch of RF output adapter. |
| Interference on playback picture. (TV is connected to the camcorder by using RF output adapter.) | • When you see the playback picture on your TV, adjust fine tuning knob on television set to obtain best picture. • TV receiver is older type. It needs to be modified to work properly with camcorder. • Tape is damaged. Try another cassette. |
| Picture bends at the top of the TV screen. | • TV receiver is older type. It needs to be modified to work properly with camcorder. • Tape is damaged. Try another cassette. |
| Color of your TV screen is too bright, too faint or change. | • TV set has VIR circuit. Turn it off during playback. |
| Date search function does not operate | • Slide the CAM/OFF VIDEO switch to VIDEO. • Insert the clock battery, set the date and time, then start recording. • Do not remove the clock battery after recording. • Do not eject the recorded cassette. Leave it in the camcorder. |
| BATTERY CONDITION | Check Point & Correction • Try another battery or charge the battery. |
| The ( ) indication in the electronic viewfinder flashes to indicate battery is discharged. | • Try another battery or charge the battery. |
| The battery level indicator ( ) appears differently on the LCD monitor and in the viewfinder. | This does not indicate a fault; it is because the power consumed by the LCD monitor and viewfinder is different. |
| NO OPERATION IS ACCEPTED | Check Point & Correction • Remove the power source and the date/title battery. And after about one minute, the display in the viewfinder or LCD monitor will be reset. Then set the information again. |
| TAPE DISPLAY | Check Point & Correction • Have you moved the camcorder or cassette from a cold place to a warm place so that its temperature changed abruptly? If the temperature has changed, remove the cassette and set the CAM/OFF/VIDEO switch to OFF, then wait for about one hour. • Remove the cassette and then try to reinsert: remove it several times. If the indication is still shown in the viewfinder, use a cleaning tape to clean the heads and replace the cassette. |
