Warranty Information
Hitachi HD Color Video Camera products are warranted free from defects for 1 year from the original purchase date.
Introduction: This section provides an overview of the camera's features, including its HD CMOS image sensor, 25x optical zoom (300x digital zoom), multiple video output interfaces (HD-SDI, DVI-I, 3G-SDI), pan/tilt mechanism, 32 presets, and external control capabilities via RS-232C or RS-422 interfaces.

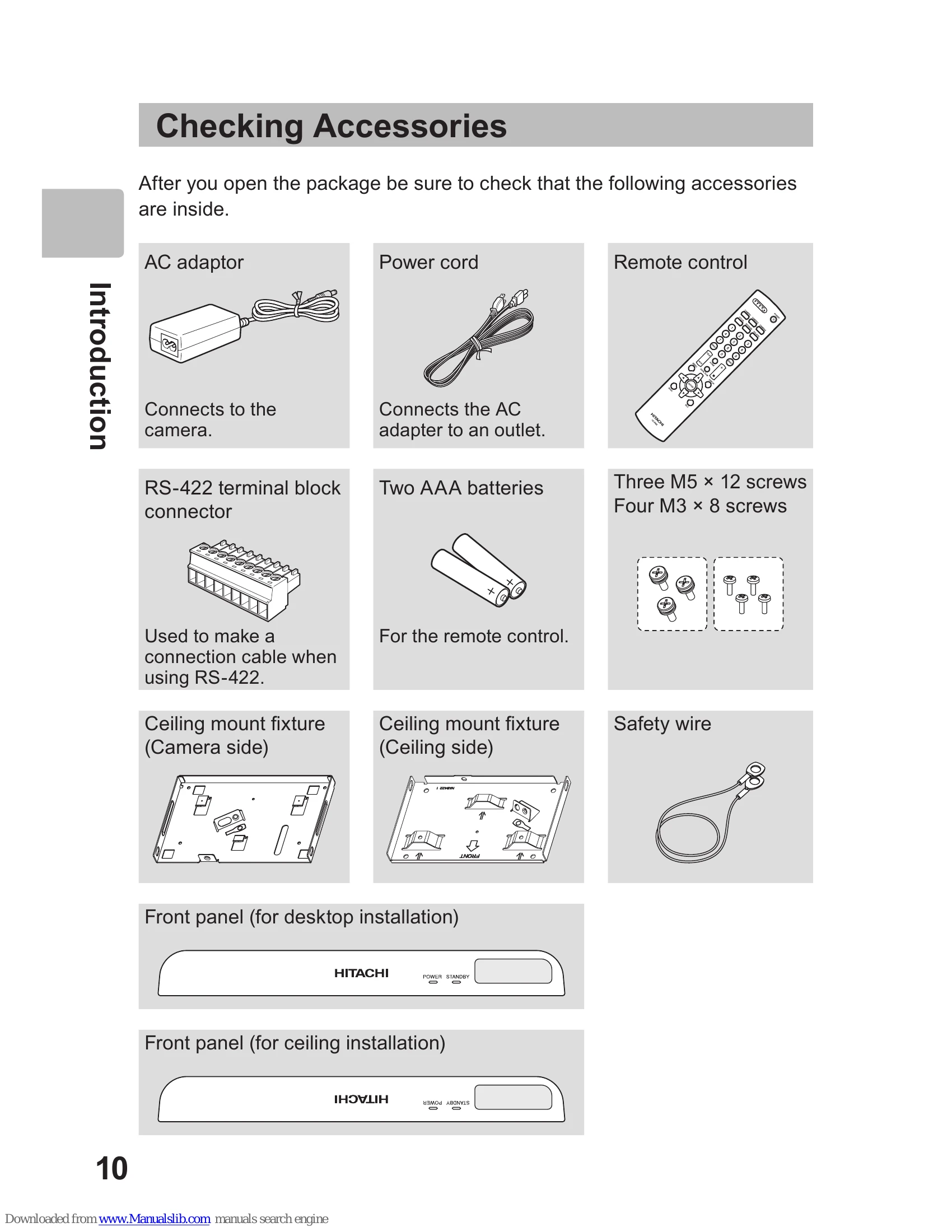

Checking Accessories: Lists all included accessories such as AC adapter, power cord, remote control, batteries, mounting screws, and terminal blocks.
Getting the Remote Control Ready: Details how to insert batteries into the remote control.
Names of Parts: Identifies key components of the camera and its base, including the lens, lamps, sensors, and switches, with corresponding page references for further details.
Installation and Connection: Covers desktop and ceiling installations, mounting on tripods, and connecting the camera to an electrical outlet using the provided AC adapter and power cord.
Troubleshooting and error codes
| Trouble | Possible Cause | Solution |
|---|---|---|
| The camera does not turn on. | The AC adapter is not properly connected. | Connect the AC adapter properly. |
| No image is displayed. | The video cable is not properly connected. | Connect the video cable properly. |
| The remote control does not work. | The batteries are depleted. | Replace the batteries. |
