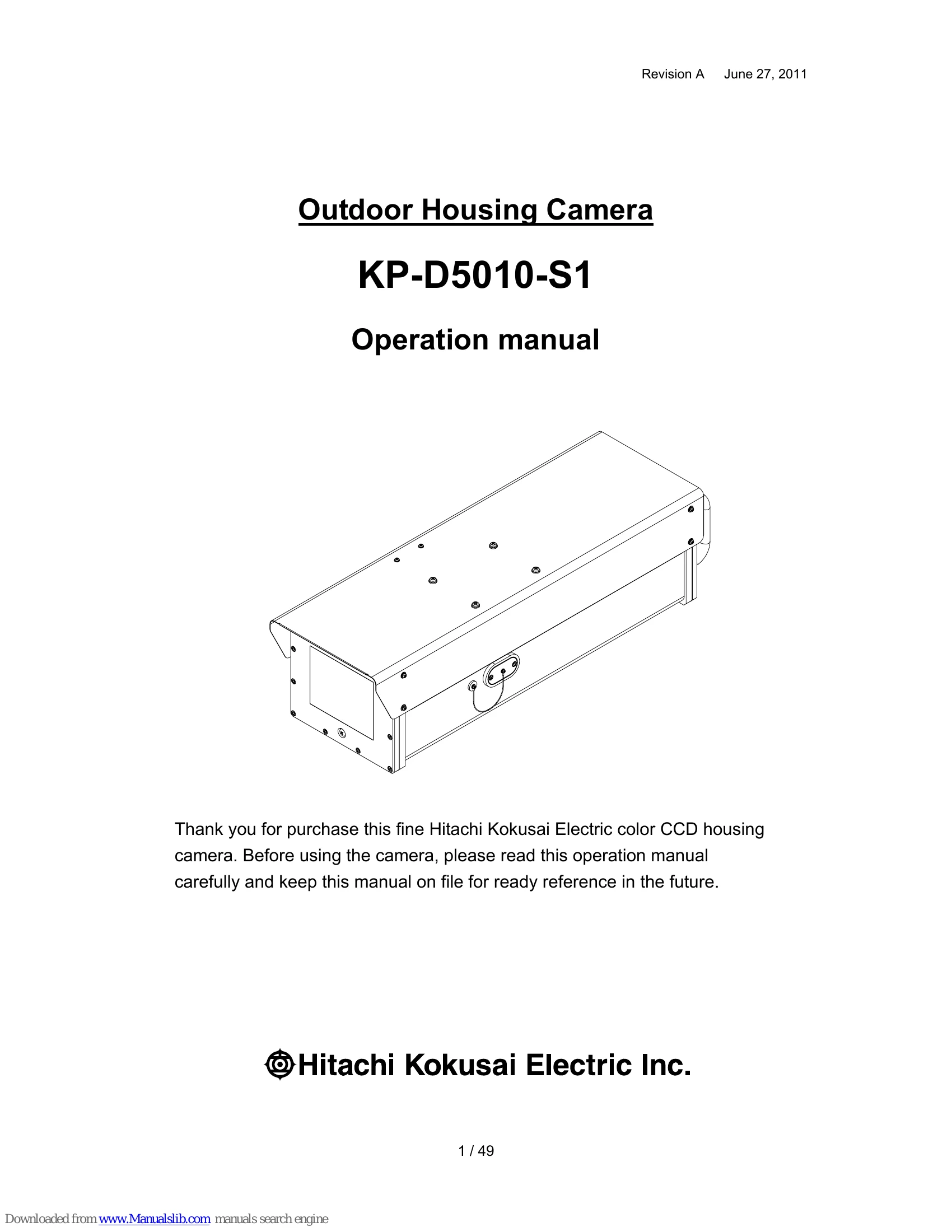

Manual for KP-D5010-S1
Uploaded: Nov. 21, 2025, 8:30 p.m.
Manual Publish Date: 2011-06-27
Warranty Information
This manual does not contain specific warranty period information.
This manual provides instructions for the Hitachi Kokusai Electric KP-D5010-S1 Outdoor Housing Camera.
Key Operations:
- Power Supply: Use a 24VDC power supply. Allow approximately 5 seconds for normal operation after power-on.
- Handling: Do not attempt to remove the cover.
- Installation & Storage: Avoid environments with combustible/corrosive gases, extreme temperatures (-26 to 51°C), excessive vibration/shock, or strong electric/magnetic fields. Do not aim the lens at the sun or strong light.
- Cleaning: Use a blower or lens brush for dust. Wipe with a dry soft cloth; use a damp cloth with neutral detergent for hardened dirt. Avoid benzene, thinner, alcohol, or spray cleaners.
- Nitrogen Gas Enclosure: Details on exhausting air and enclosing nitrogen gas for the housing are provided.
- Remote Control: The manual details the communication protocol, transmission commands, reply commands, and error codes for remote operation.
- Camera Settings: Extensive sections cover setting various camera parameters through menus, including light control, shutter speed, white balance, digital zoom, resolution, and more.
- Specifications: Provides detailed technical specifications for the housing and built-in camera, including zoom, focal distance, illumination, and power requirements.
Troubleshooting and error codes
| Error Code | Content of the error |
|---|---|
| 7 bits | The command is disregarded. |
| 6 bits | Initial busy |
| 5 bits | Camera unit failure |
| 4 bits | Not used |
| 3 bits | Not used |
| 2 bits | Not used |
| 1 bits | Not used |
| 0 bits | The Specification date is improper. |
| Content of the error | Generation factor | Measures |
|---|---|---|
| The command is disregarded. (Notes) | When the one shown in the following was a busy, the transmission command was transmitted 1) Initial busy 2) Lens busy 3) When camera menu opens |
Please end the operation shown below or transmit the transmission command after operation ends. |
| Initial busy | Initial busy The camera is being initialized. |
It waits until initial operation ends. |
| Camera unit failure | At the state of the camera unit and communicate impossible | Please control the zoom and focus by the Zoom/Focus command. |
| The Specification date is improper. | When the parameter of the transmitted transmission command is outside a specified range. | The parameter is set within the range of specification. |
