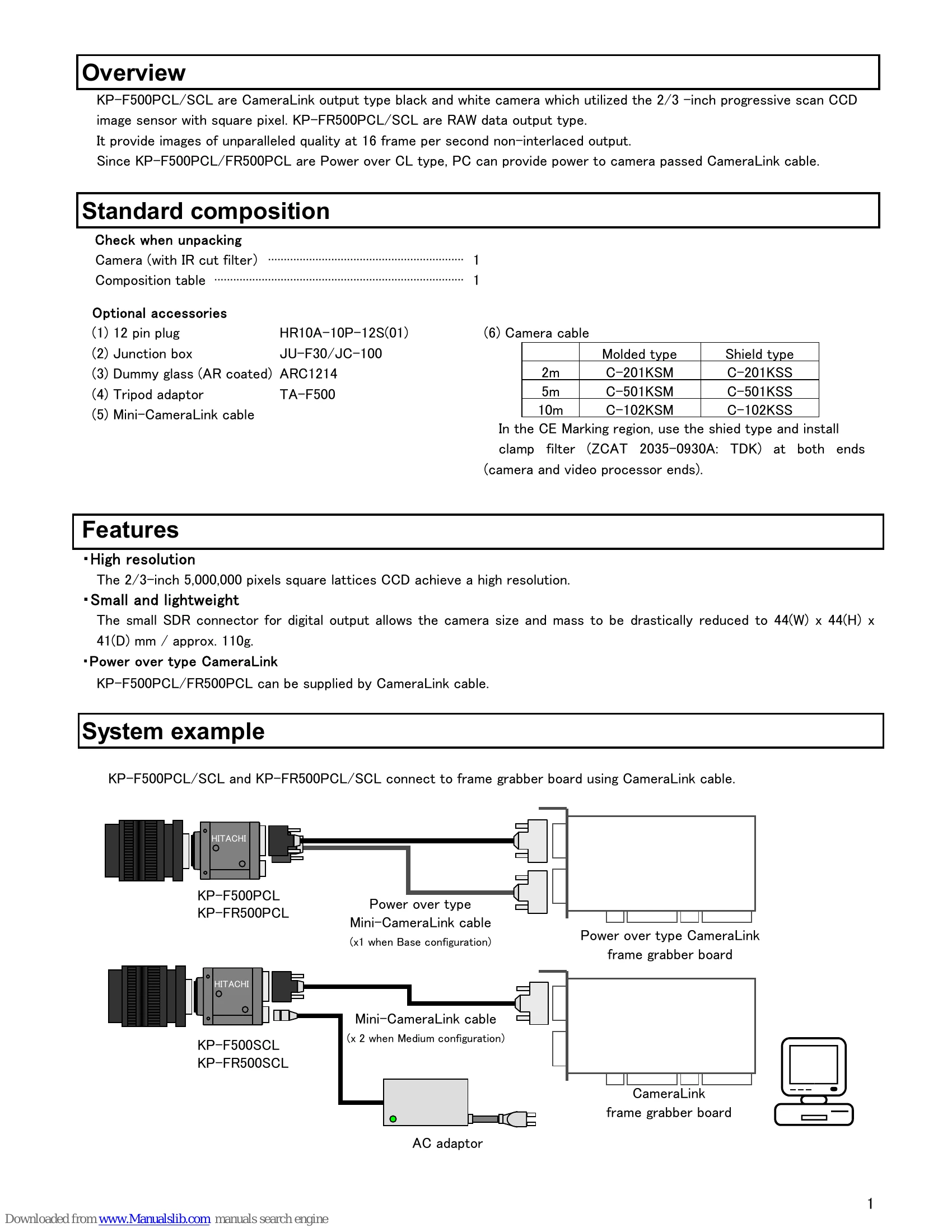

Manual for KP-F500PCL/SCL
Uploaded: Nov. 21, 2025, 6:36 p.m.
Warranty Information
No specific warranty period is mentioned in the provided pages.
- Basic Operation: Setup and adjustment of the camera are performed via remote control over CameraLink.
- Key Functions: Settings include external trigger mode, polarity, and source; output signal selection; electronic shutter speed adjustment (preset and variable); CameraLink configuration (Base/Medium); data bit depth; sync signal output; horizontal sync signal; gain; black level offset; vertical 2-pixel addition (KP-F500PCL/SCL only); partial scan settings; balance adjustment for right and left screens; and white spot correction.
- Remote Control: Communications use a start-stop synchronization system at 9600 bps, with 8-bit data length, 1-bit start/stop bit, and no parity. Data is transferred as TEXT data using a specific protocol.
- Data Transmission: Commands are sent and received as ASCII code. The manual details the transmission sequence, data format, and checksum calculation.
- Output Sequence: Diagrams illustrate the output sequence of image data for both Base and Medium configurations, distinguishing between left and right screen data.
- Trigger Operation: Timing charts explain normal mode, fixed shutter mode, one trigger mode, and VD reset functionality, detailing signal timings for trigger input, shutter, strobe, data output, VD, and FVAL.
- Input/Output Signals: Specifies trigger signal input levels (LVDS from CameraLink, +2.5 to +5.0V/0 to +0.3V from 12-pin connector) and output levels (+5V/0V).
- Spectral Response: Graphs show the spectral response for the CCD and IR cut filter for both KP-F500PCL/SCL and KP-FR500PCL/SCL models.
- Specifications: A comprehensive table lists technical specifications including imaging device details, image area, scanning system, frame rate, frequencies, sync, lens mount, video output, resolution, sensitivity, shutter, gamma, frame on demand, partial scan, balance adjust, white spot correction, remote control, power supply, power consumption, environmental conditions, endurance, dimensions, and mass.
