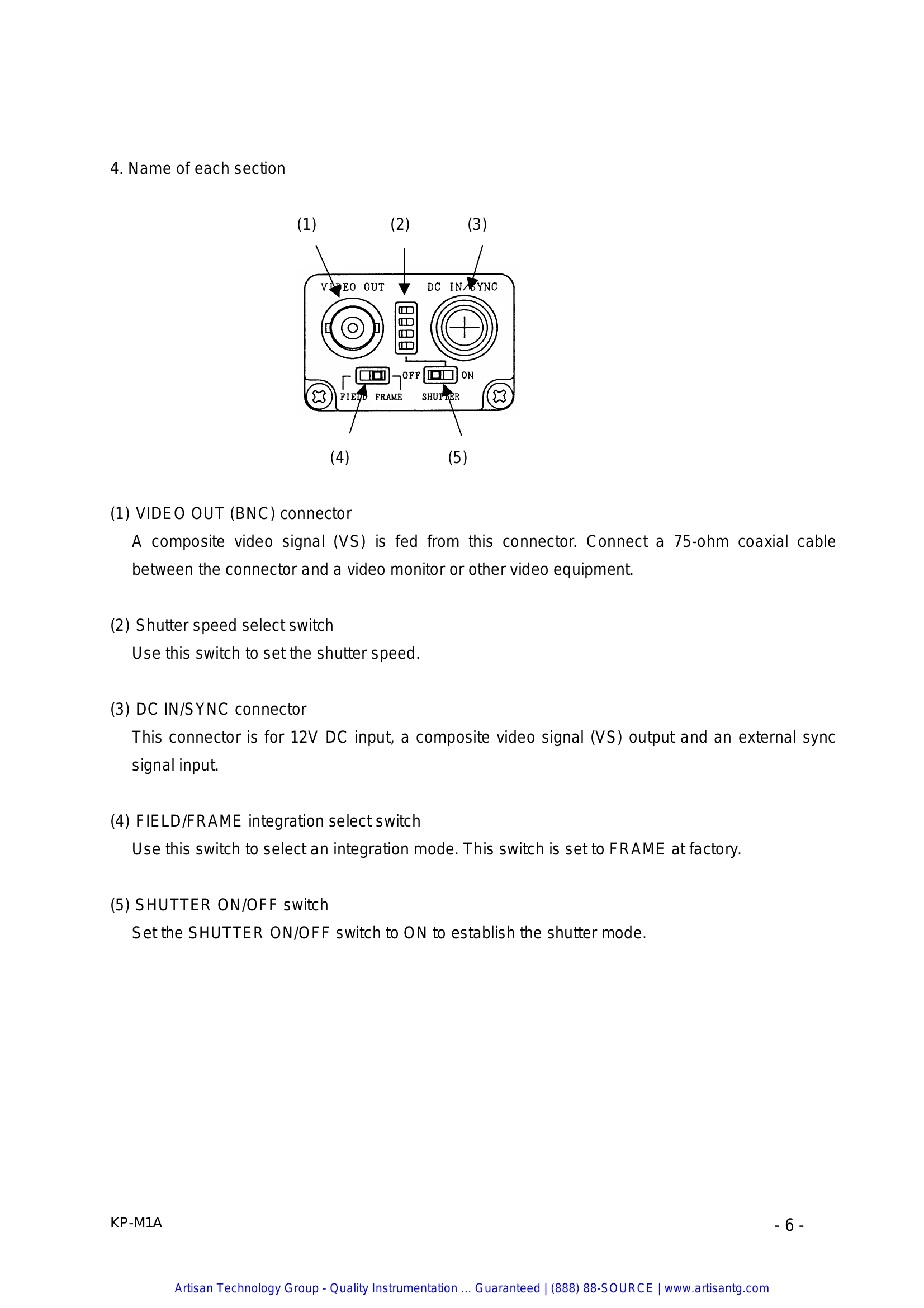

Manual for KP-M1A
Uploaded: Nov. 21, 2025, 6:54 p.m.
Manual Publish Date: 2001-08-01
Warranty Information
The guarantee period is one year after the date of purchase, excluding defects due to erroneous use or intentional acts.
The KP-M1A is a high-sensitivity, high-resolution, black and white CCD camera. It offers features such as a multiple-step electronic shutter, field-on-demand function, and compatibility with microscopy and image processing systems.
Key Operations:
- Power: Connect a 12V DC power supply.
- Synchronization: Supports internal or external synchronization (HD/VD).
- Shutter Speed: Selectable from 1/100 to 1/10000 seconds via an internal switch.
- Integration Mode: Field or frame integration can be selected.
- Field-on-Demand: Capture images at specific timings triggered by an external signal.
Troubleshooting and error codes
| Phenomena | Cause | Remedy |
| Smear and blooming | Strong light (lamp, fluorescent lamp, reflected light, etc.) | Change the camera angle so that strong light does not enter the lens. |
| Fixed pattern noise | High temperature operation | Operate within the specified temperature range; reduce sensitivity if possible. |
| Moire | Fine patterns are shot | Adjust focus or camera angle; use appropriate lighting. |
