Warranty Information
Please contact your retailer or Hitachi Service Center for repair needs.

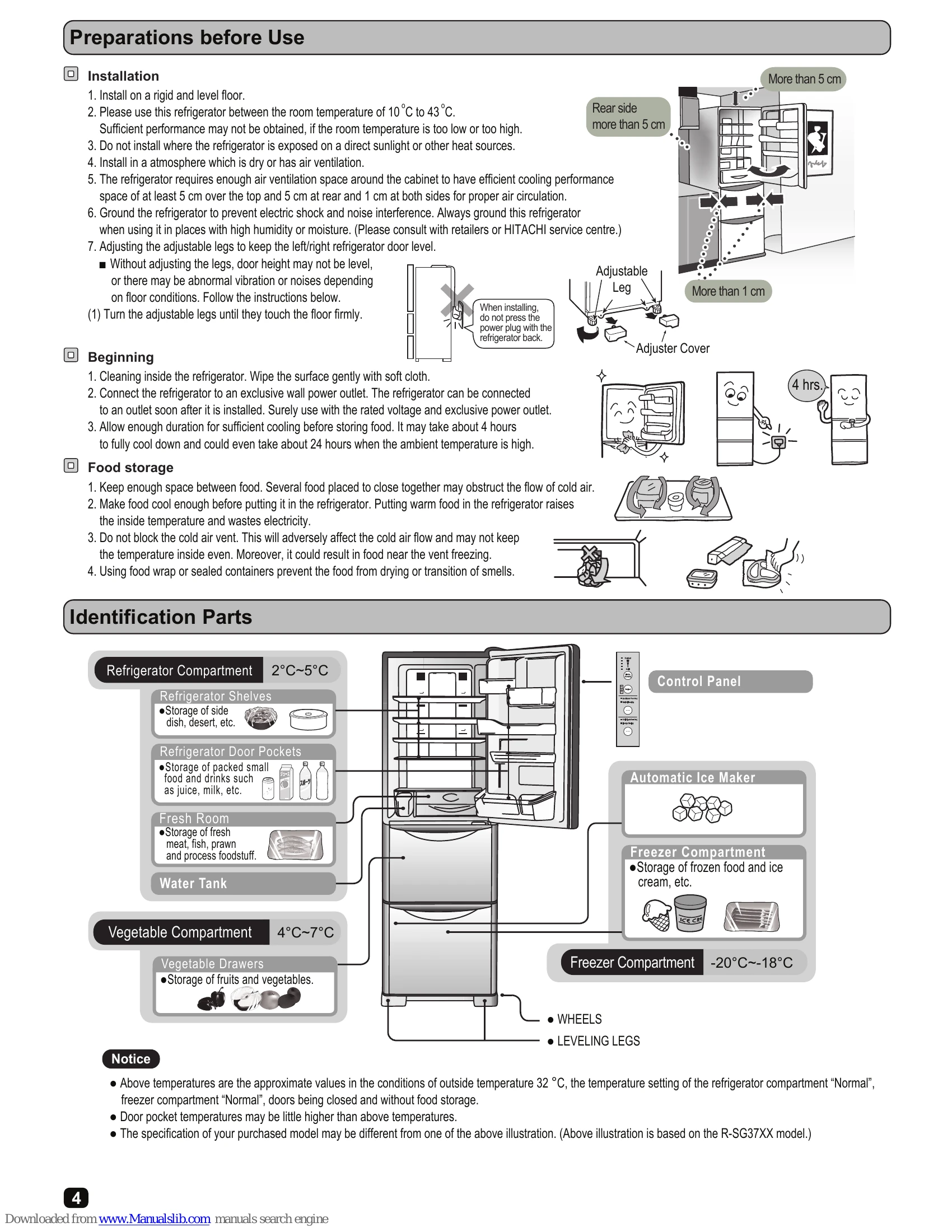

Installation
1. Install on a rigid and level floor. 2. Use between 10°C to 43°C room temperature. 3. Avoid direct sunlight or heat sources. 4. Install in a dry, ventilated atmosphere. 5. Ensure at least 5 cm space on top, 5 cm at the rear, and 1 cm on sides for air circulation. 6. Ground the refrigerator. 7. Adjust legs for level doors.
Beginning
1. Clean inside with a soft cloth. 2. Connect to an exclusive wall power outlet. 3. Allow 4-24 hours for cooling before storing food.
Food Storage
1. Keep space between food for air circulation. 2. Cool food before storing. 3. Do not block air vents. 4. Use wrap or sealed containers to prevent drying and odor transfer.
Control Panel Operation
Use "Select" and "Temp. Control" buttons to set freezer and refrigerator temperatures. "F" for Freezer, "R/V" for Refrigerator. Other functions include Ice Maker, Quick Freezing, Child Lock, and Energy Saving.
Troubleshooting and error codes
| Error Display | Possible cause | What to check |
|---|---|---|
| Light 3 sec. Blink once | The freezer compartment door might not be closed properly. | Remove obstacles, confirm freezer door is closed, and wait for cooling. |
| Light 3 sec. Blink twice | The refrigerator compartment door might not be closed properly. | Remove obstacles, confirm refrigerator door is closed, and wait for cooling. |
