Parts/Service for R-Z570ARU7
Uploaded: Nov. 21, 2025, 7:14 p.m.

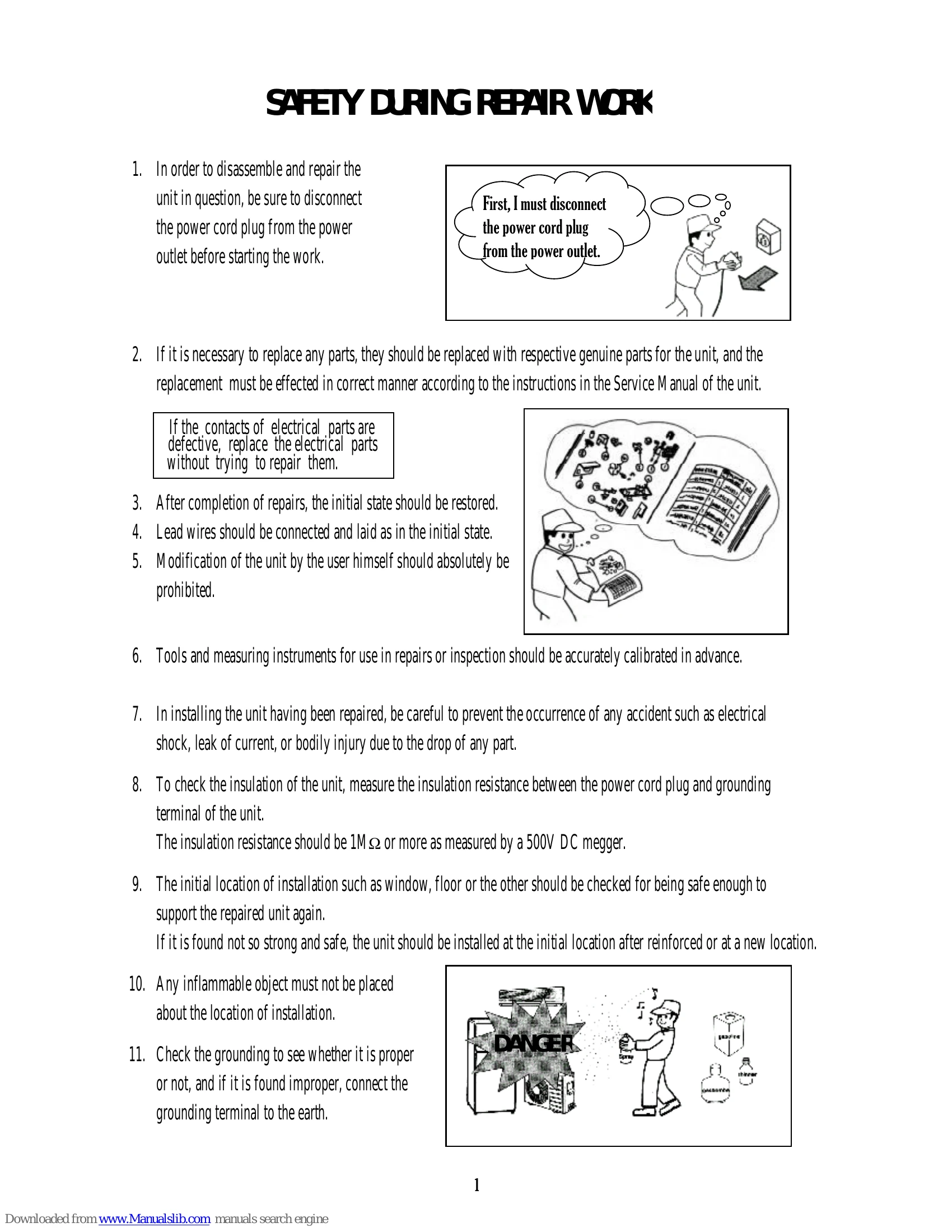

This manual provides service information for the Hitachi R-Z570ARU7 refrigerator. It includes specifications, main parts components, wiring diagram, and parts constitution with diagrams. Safety precautions for repair work are also detailed.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not run. | Power cord is not plugged in. | Plug the power cord into the outlet. |
| Fuse is blown or circuit breaker is tripped. | Check the fuse or circuit breaker. | |
| Room temperature is too high or too low. | Adjust the room temperature. | |
| Door is not closed properly. | Close the door properly. | |
| Compressor is overloaded. | Wait for 10-15 minutes. | |
| Excessive noise or vibration. | Unit is not leveled. | Adjust the leveling feet. |
| Object is touching the unit. | Move the object away from the unit. | |
| Internal parts are loose. | Contact service center. | |
| Cooling is insufficient. | Door is not closed properly. | Close the door properly. |
| Thermostat is set too high. | Adjust the thermostat to a lower setting. | |
| Too much food in the unit. | Remove some food. | |
| Ventilation is blocked. | Ensure proper ventilation. | |
| Condenser coils are dirty. | Clean the condenser coils. | |
| Frost is forming in the freezer. | Door is not closed properly. | Close the door properly. |
| Thermostat is set too low. | Adjust the thermostat to a higher setting. | |
| Defrost system is malfunctioning. | Contact service center. |
