Manual for CL2554AN/CL2854AN
Uploaded: Nov. 21, 2025, 6:06 p.m.

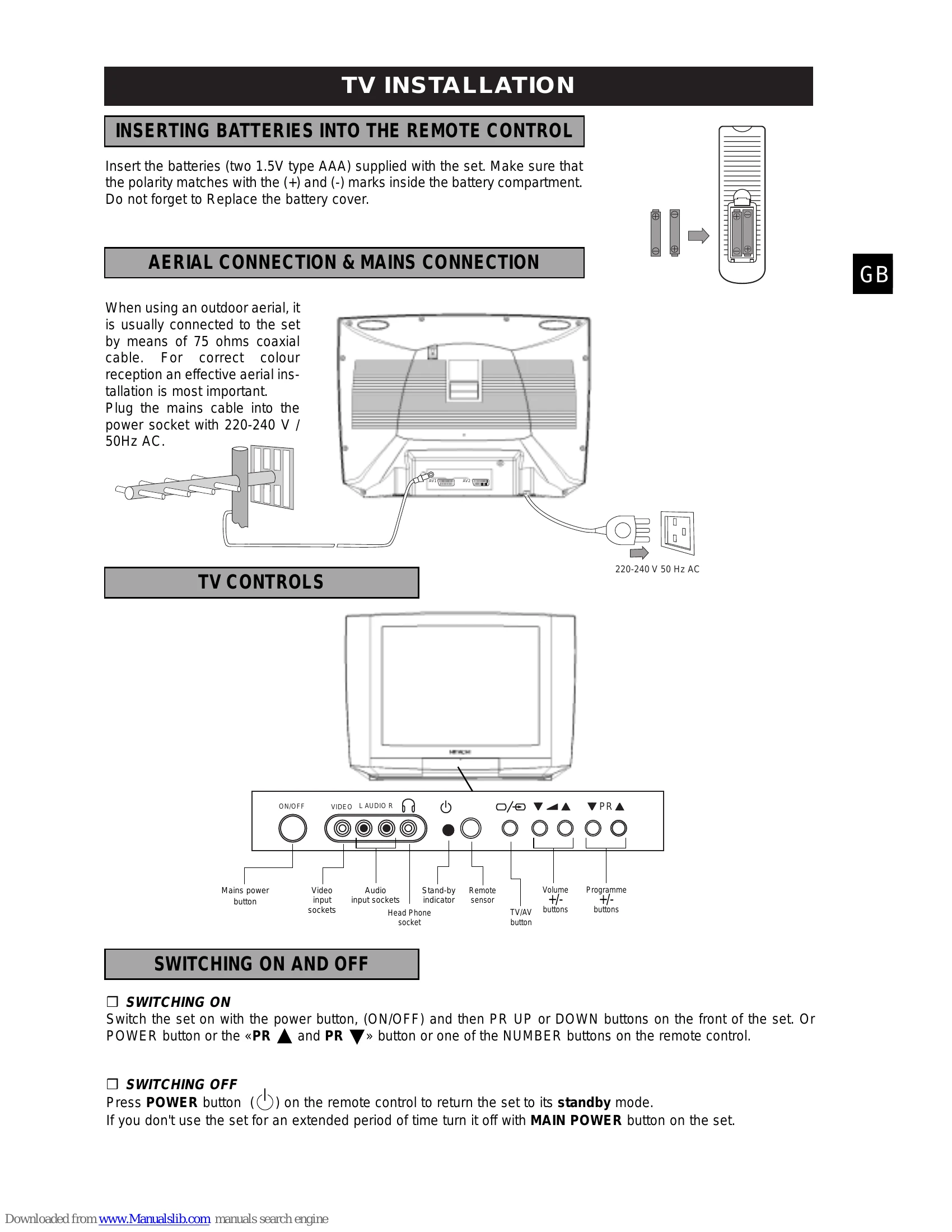

Basic Operation:
Switching On/Off: Use the POWER button on the remote to switch to standby mode. For a complete shutdown, use the main power button on the set.
Selecting Channels: Use the number buttons (0-9) for direct selection, or PR UP/DOWN buttons to cycle through channels.
Volume Control: Use the VOLUME buttons (+/-) to adjust the sound level. Press MUTE to silence the sound temporarily.
Picture & Sound Settings: Access the PICTURE and SOUND menus to adjust settings like brightness, contrast, colour, bass, and treble.
Features: Explore the FEATURES menu for options like language selection, child lock, clock settings, and sleep timer.
Teletext: Press the TELETEXT button to access teletext services. Use number buttons to select pages and coloured buttons for fast text options.
Switching On/Off: Use the POWER button on the remote to switch to standby mode. For a complete shutdown, use the main power button on the set.
Selecting Channels: Use the number buttons (0-9) for direct selection, or PR UP/DOWN buttons to cycle through channels.
Volume Control: Use the VOLUME buttons (+/-) to adjust the sound level. Press MUTE to silence the sound temporarily.
Picture & Sound Settings: Access the PICTURE and SOUND menus to adjust settings like brightness, contrast, colour, bass, and treble.
Features: Explore the FEATURES menu for options like language selection, child lock, clock settings, and sleep timer.
Teletext: Press the TELETEXT button to access teletext services. Use number buttons to select pages and coloured buttons for fast text options.
Troubleshooting and error codes
| SYMPTOM | CHECKPOINT |
|---|---|
| No picture and sound | Check the TV set is plugged in. Check the Volume, Brightness, and Contrast controls are not set at minimum. |
| Picture is OK, but no sound | Check the volume Control is not set at minimum. Check that the mute function is off |
| Sound is OK, but no picture | Check the brightness and Contrast controls are not set at minimum. |
| No colour | Check the colour control is not set at minimum. |
| Excessive noise in picture | Check the aerial cable is not broken, disconnected or damaged. |
| Diagonal stripes appear on the picture | The picture may be affected by an interfering signal. (eg. from nearby amateur radio transmitters or another TV set). The interference can be reduced to some extent by adjusting the direction or height of the aerial. |
| Picture has « snow » | Check the aerial cable is not broken, disconnected or damaged. Small dots all over the screen are caused by a weak aerial signal. |
| Ghost images appear | Check that the aerial direction has not changed after a storm or strong wind etc... Ghost images are caused by a signal being reflected from a large building or a hill : the direction or height of the aerial should be chosen well in order to minimise the ghosting images. |
